AMH40
- AMH40 Rack size 390 x 390mm
- Maximum useable height 300mm
- Dimensions W440 x D540 x H665mm
- Height excludes adjustable feet which
will add 10 - 20mm
- Cycle time 120 Sec
- Power 2.8kW
- 13 Amps required
Features
- 1 year warranty
- New design with large control buttons
- Detergent and rinse aid dosing as standard
- Supplied with two glass racks
- Drain pump option available
- Stainless steel construction
- 13A 3 pin standard moulded plug fitted
- 1 year warranty
- Dosing setup by fascia controls
- Easy clean parallel wash and rinse arm assembly

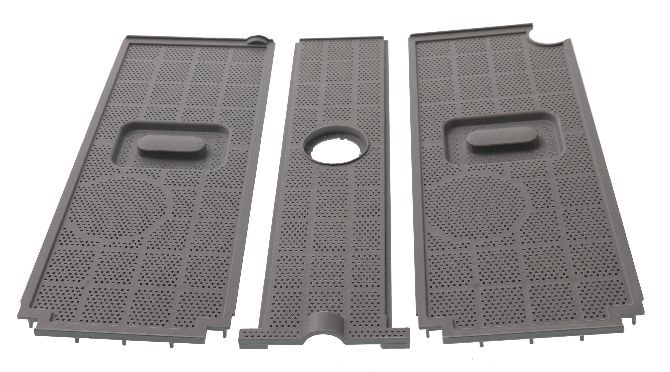

- Optional surface scrap tray filters
- Large three button control
- Precise control peristaltic detergent and rinse aid dosing fitted as standard
- Optional drain pump
- Cycle time 120 sec
- Supplied with two open glass racks
- Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
- Wash temperature 60°C
- Rinse temperature 65°C
- Drain pump versions require a waste-up stand for correct operation. Restrictive waste connections should be avoided for all installations
- Machines fitted to cold water supplies will not be capable of running repeated short cycles.
- The cycle time will automatically be extended to allow recovery of correct operating temperatures
Amika - Undercounter |
AMH40 |
Width x Depth x Height mm |
440 x 540 x 665 |
Feet Height |
10mm-20mm |
Basket size |
390x390mm |
Maximum useable height |
300mm |
Door Opening |
320mm |
Cycle times |
120 Seconds |
Water consumption per cycle |
2.2 Litres |
Wash tank capacity |
9 Litres |
Phase - Options |
Single Phase Only |
Power – Single Phase Options |
2.8kW(13Amp) |
Power – Three Phase |
N/A |
Detergent pump |
Peristaltic |
Rinse aid pump |
Peristaltic |
Drain pump |
Optional |
Breaktank |
No |
Water supply pressure |
2 to 4 Bar |
Body Construction |
Single Skin |
Door/Hood Construction |
Double Skin |
Scrap Trays |
Optional |
Internal Rinse Booster Pump |
N/A |
Number Of Cycles |
1 |
Total Maximum Load(as supplied) |
2.8kW(13Amp) Single Phase |
