Home > Glasswashers > Halcyon Amika Range >
Glasswashers
Halcyon Amika Range
Maidaid C Range Undercounter
Maidaid D Range Undercounter
Maidaid Evolution Undercounter
Dishwashers
Ice Makers
Other Products
Compare tech specs

AMH35 *NEW from 2019*

  • AMH35 Rack size 350 x 350mm
  • Maximum useable height 240mm
  • Dimensions W400 x D495 x H590mm
  • Height excludes adjustable feet which
      will add 5 - 15mm
  • Cycle time 120 Sec
  • Power 2.75kW
  • 13 Amps required
£1,120.00

Features

  • 1 year warranty
  • New design with large control buttons
  • Detergent and rinse aid dosing as standard
  • Supplied with two glass racks
  • Drain pump option available
  • Stainless steel construction
  • 13A 3 pin standard moulded plug fitted
  • Key Points
  • Tech Specs
  • Related Accessories
  • Downloads

  • NEW dosing setup by fascia controls
  • NEW easy clean parallel wash and rinse arm assembly
  • NEW optional surface scrap tray filters
  • Reduced power consumption
  • Large three button control
  • Precise control peristaltic detergent and rinse aid dosing fitted as standard
  • Drain pump optional
  • Cycle time 120 sec
  • Supplied with two open glass racks
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C
  • Rinse temperature 65°C
Amika - Undercounter AMH35
Width x Depth x Height mm 400 x 495 x 590
Feet Height 10mm-20mm
Basket size 350 x 350mm
Maximum useable height 240mm
Door Opening 260mm
Cycle times 120 Seconds
Water consumption per cycle 1.9 Litres
Wash tank capacity 8 Litres
Phase - Options Single Phase Only
Power – Single Phase Options 2.75kW(13Amp)
Power – Three Phase N/A
Detergent pump Peristaltic
Rinse aid pump Peristaltic
Drain pump Optional
Breaktank No
Water supply pressure 2 to 4 Bar
Body Construction Single Skin
Door/Hood Construction Double Skin
Scrap Trays Optional
Internal Rinse Booster Pump N/A
Number Of Cycles 1
Total Maximum Load(as supplied) 2.75kW(13Amp) Single Phase

MH106056B

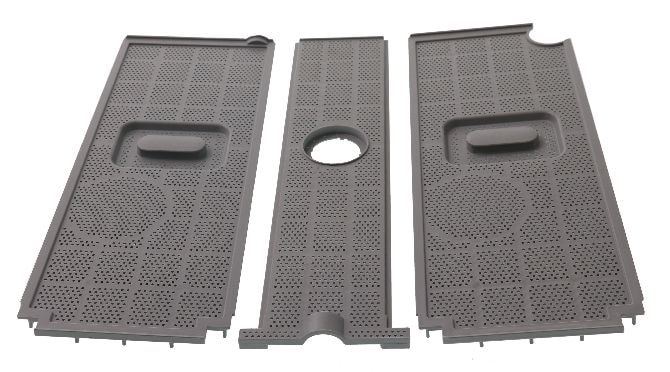

Scrap Tray Set (AM H35)

Q900008B

  • 8 litre manual water softener
  • Diameter 185mm
  • Height 420mm

Q900012B

  • 12 litre manual water softener
  • Diameter 185mm
  • Height 520mm

Q900100B

  • 10 litre automatic cold water softener
  • Height 525mm
  • Width 275mm

Q900105B

  • 15 litre automatic hot water softener
  • Height 650mm
  • Width 275mm

Q902100B

  • Maximum height is 520mm
  • Depth and width of stand can be extended from 390mm to 640mm
  • Feet are adjustable for levelling

Q904008B

  • Externally fitted water supply pressure booster pump
  • Bronze head
  • 1" inlet and outlet female

Q902302B

  • 350 x 350mm open glass/cup plastic basket
[{"file":"/core/media/media.nl?id=5537938&c=1120086&h=3a1a09ad65f61e52f129&_xt=.pdf","title":"AMH35 user and install instructions (2.4mb)","image":"/core/media/media.nl?id=5537942&c=1120086&h=2e0986437dc9bed7bd32"},{"file":"/core/media/media.nl?id=5537944&c=1120086&h=7040ae464da686d7d045","title":"AMH35 door open (5.1mb)","image":"/core/media/media.nl?id=5537940&c=1120086&h=fb4c34374ff59a3abdf4"},{"file":"/core/media/media.nl?id=5537939&c=1120086&h=3eee5e05defe2bb0e1b0&_xt=.pdf","title":"AMH35 wiring diagram (3.5mb)","image":"/core/media/media.nl?id=5537943&c=1120086&h=d8b7d956953c89841570"},{"file":"/core/media/media.nl?id=5537936&c=1120086&h=d58e8d593686ffc7fc50&_xt=.pdf","title":"AMH35 Parts diagram (6.3mb)","image":"/core/media/media.nl?id=5537941&c=1120086&h=7741e972d23c31402e36"}]
