RX Rack Conveyors

Features

  • The NEW RX Evo and Pro ranges have evolved from the tried and tested AX range introducing improved efficiency and reliability
  • Offers a model to suit all volume warewashing requirements that can be tailored to your specification

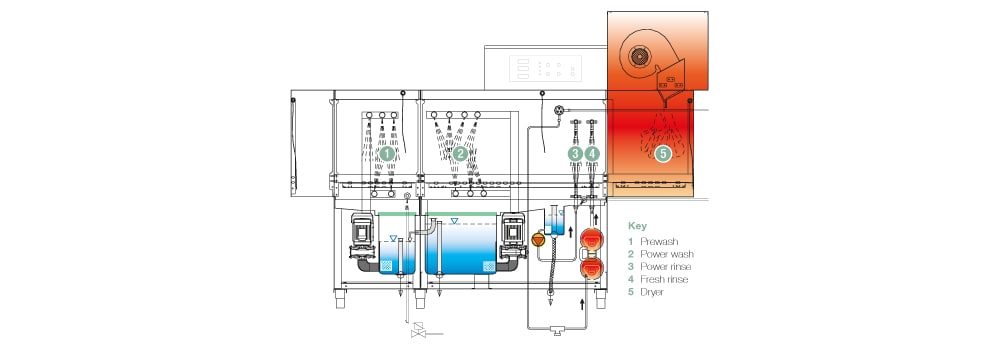

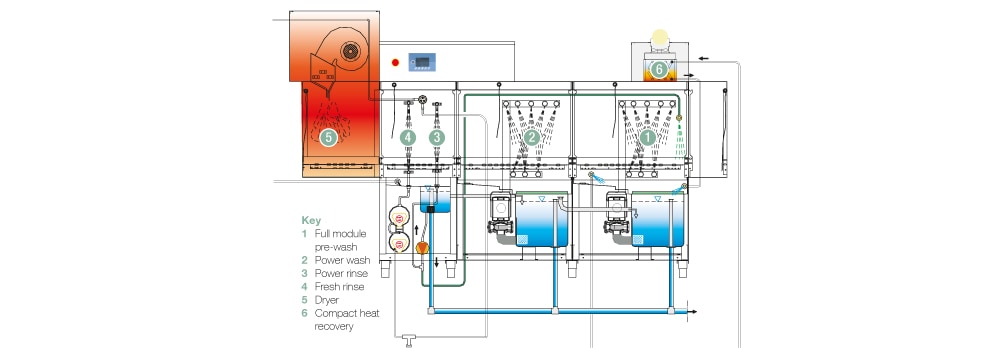

  • Models and based on modules which include: prewash, single or double main wash, double or triple rinse
  • Three drying module options
  • Two heat recovery module options
  • Other options include: heat pump, steam condenser, corner inlet and corner dryers
  • The range offers the capacity to wash from 83 to 400 racks per hour

Call for Price

  • Key Points
  • Tech Specs
  • Options
  • Downloads

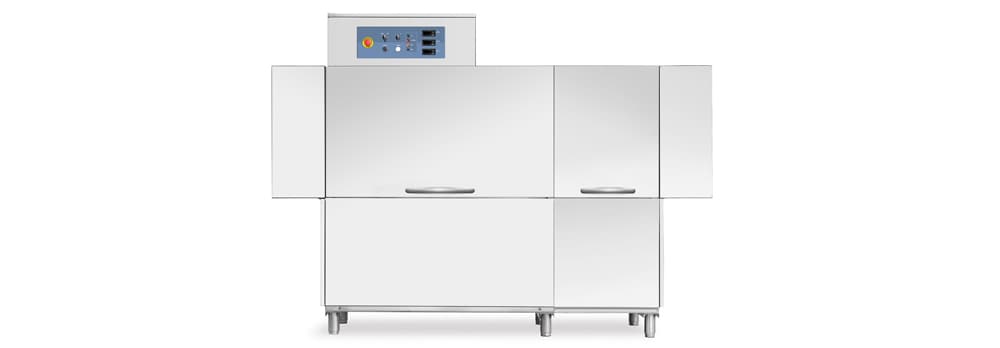

  • The RX Evo range now includes 4 base models and one with corner pre-wash with between the the capacity to wash from 83 to 238 racks per hour
  • Full range of additional modules offering corner pre-wash, dryers both inline and corner options, steam x and heat recovery, allow tailor-made solutions
  • The RX Evo range is available with traditional electromechanical controls and display fascia or new LED control fascia

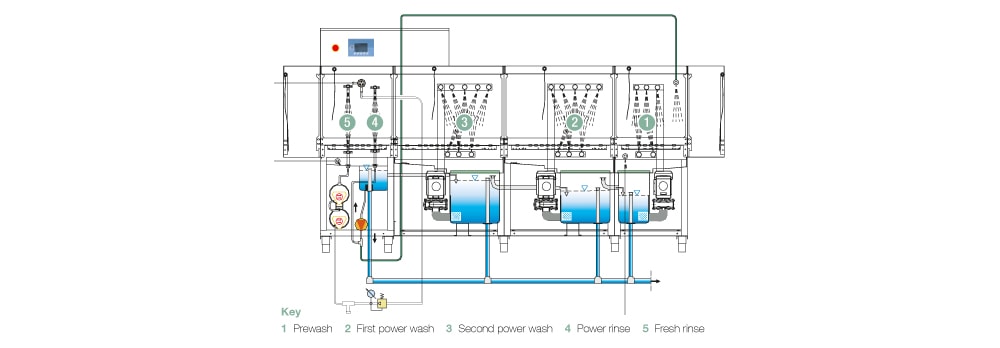

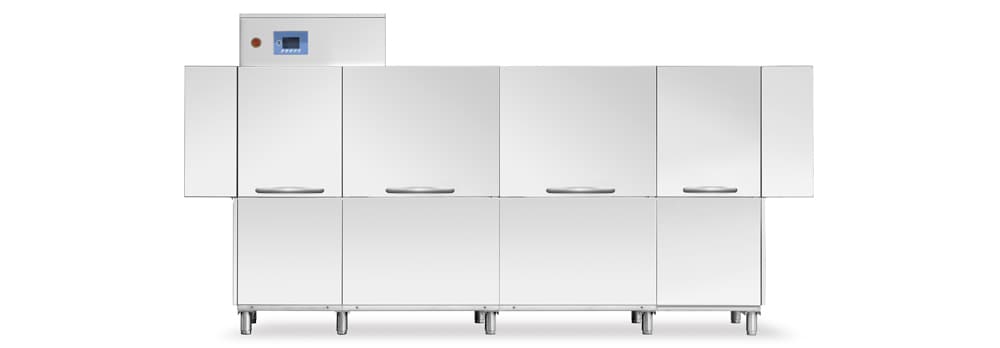

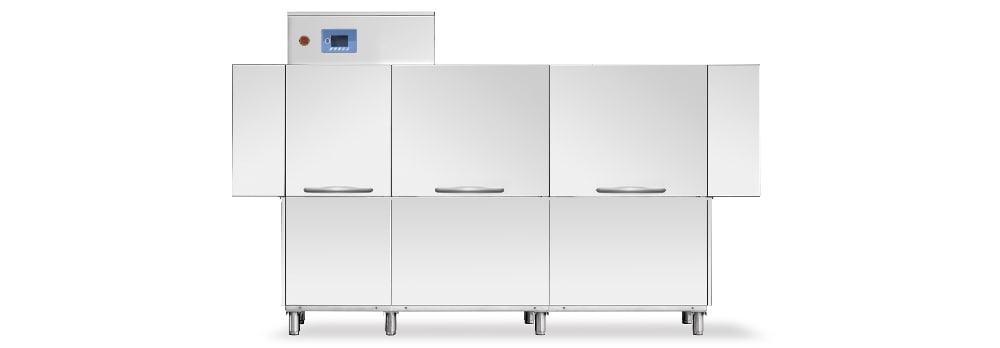

  • The NEW RX Pro range now introduces 5 base models and two with corner pre-wash with between them the capacity to wash from 100 to 400 racks per hour
  • The RX Pro range adds the features of multiple rack operating speeds with a comprehensive soft touch LCD control screen
  • Wash arms removable an an assembly for improved cleaning access and reduced water consumption
  • Five of the new models have the option of an additional pre-wash module with removal draw strainer allowing in service removal
  • Option for full range of additional modules allowing tailor-made solutions
  • Due to the ability to tailor both the RX Evo & RX Pro range to your requirements, please ask your area sales manager to carry out a site survey to ensure the selection of the best arrangement and options and then to provide a site specific quote.

Please click on the 'Downloads' tab to download tech specs on the Range.

Alternatively contact our sales desk

Sales: 0845 1308070

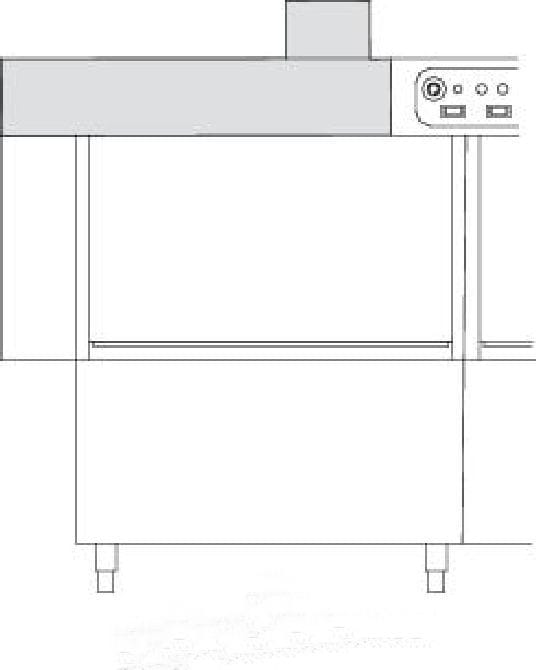

DR64

  • 4.5kW shelf dryer
  • 700mm long

DR69

  • 9kW shelf dryer
  • 700mm long

DR94

  • 4.5kW shelf dryer
  • 1000mm long

DR99

  • 9kW shelf dryer
  • 1000mm long

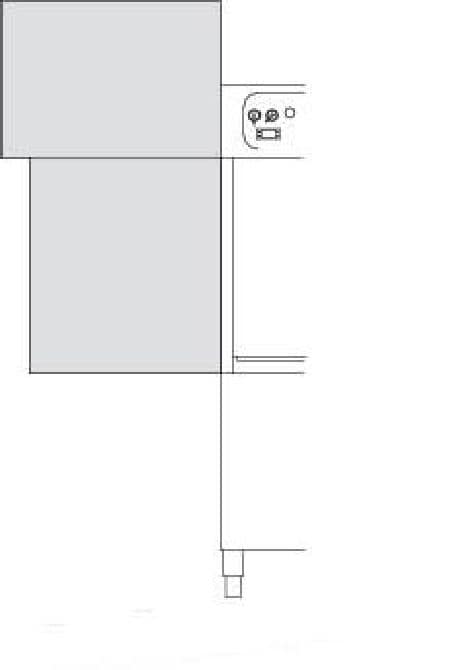

SC10

  • Steam condenser

HR10

  • Compact heat recovery

HR20

  • Heat recovery

HRP30

  • Heat recovery with heat pump

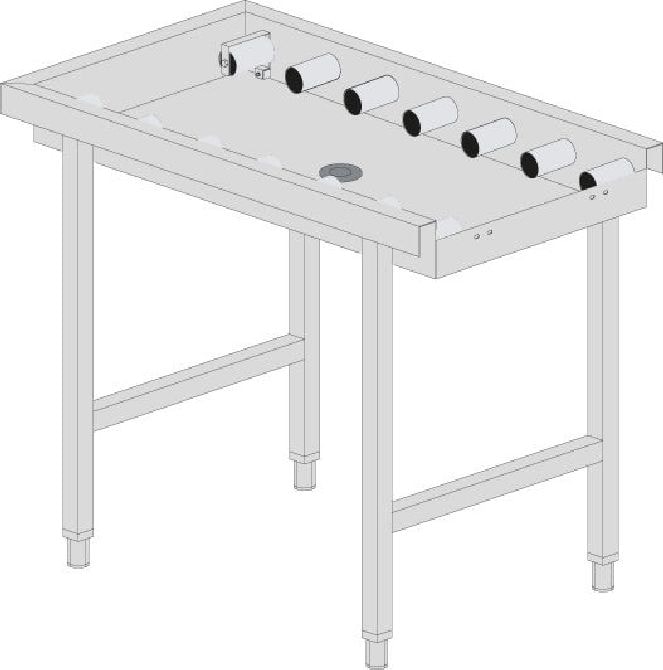

LC96/1

  • Stub roller table
  • c/w drain tank and end stop microswitch
  • 1100 x 650 x 850mm

LC96/1A

  • Stub roller table
  • c/w drain tank and end stop microswitch
  • 1600 x 650 x 850mm

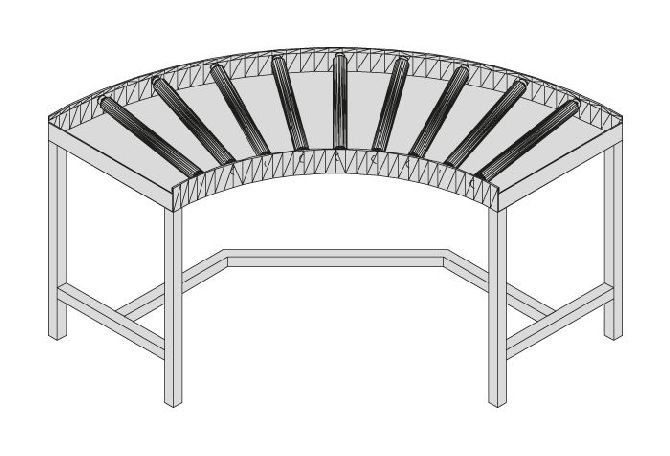

LC97

  • 90 degree curved gravity roller table
  • 1300 x 1300 x 850mm

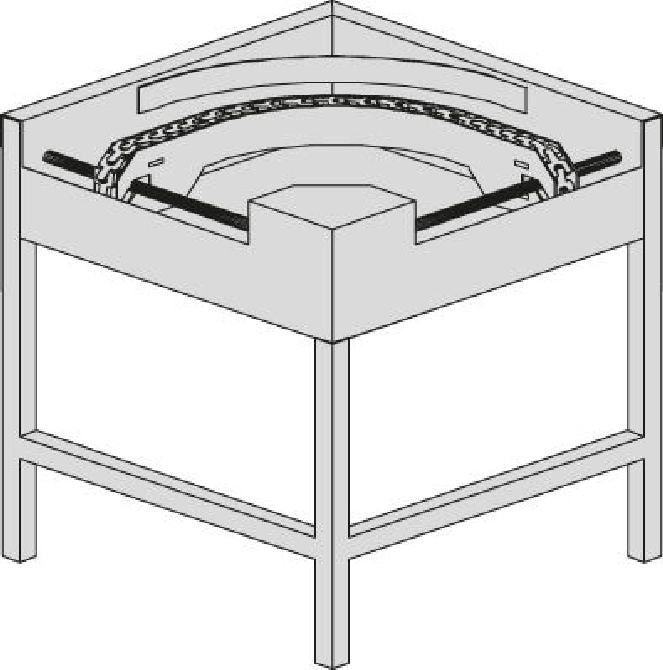

LC97/2

  • 90 degree mechanised curve
  • Self driven
  • 850 x 850 x 850mm

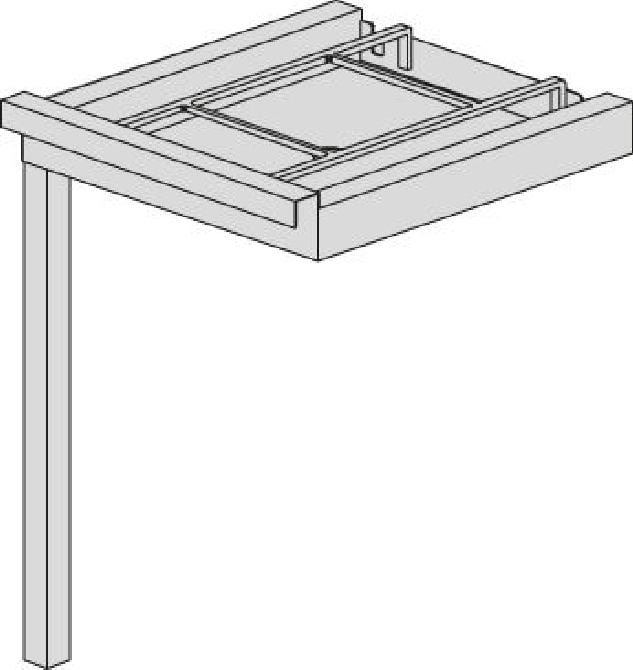

LC98

  • 90 degree loading table
  • Driven by rack machine
  • 700 x 610 x 900mm

LC77/2

  • 90 degree mechanised curve
  • Driven by rack machine
  • 850 x 850 x 850mm

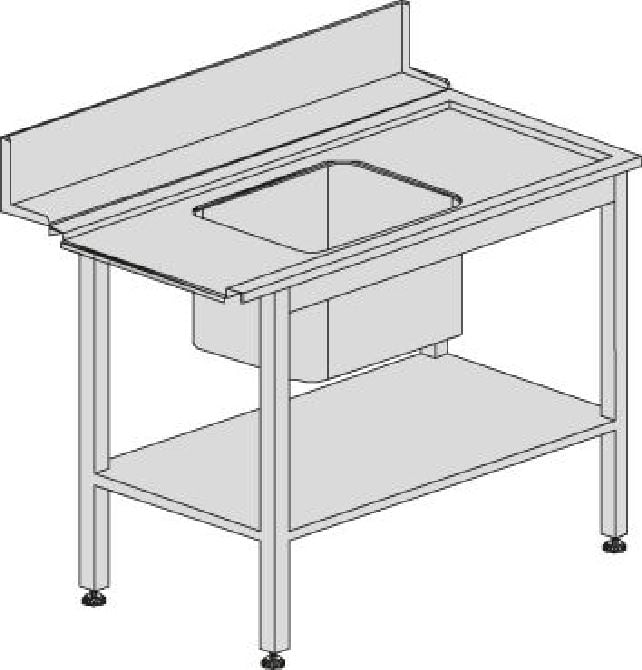

HAL T55

  • Plain table with sink
  • Comes with splash back
  • 1200 x 730 x 850mm

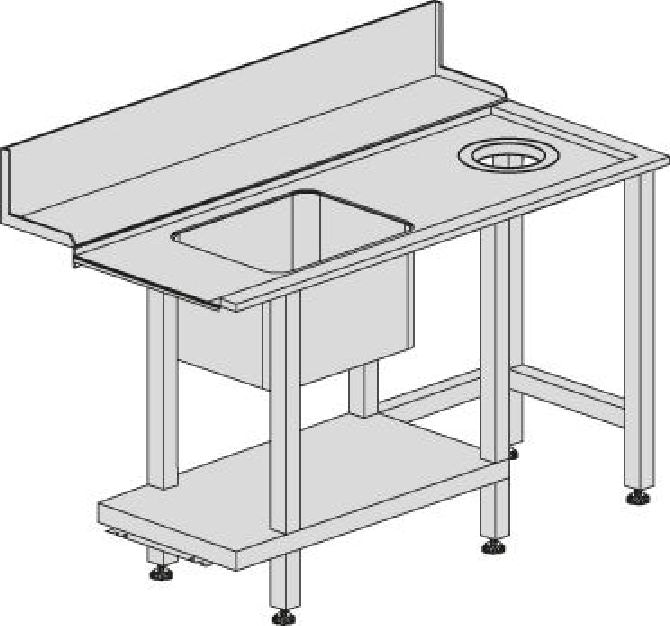

HAL T80

  • Plain table with sink
  • comes with scrap hole & splash back
  • 1500 x 730 x 850

HAL T90

  • Plain table with sink
  • comes with scrap hole & splash back
  • 1800 x 730 x 850mm
  • Left hand

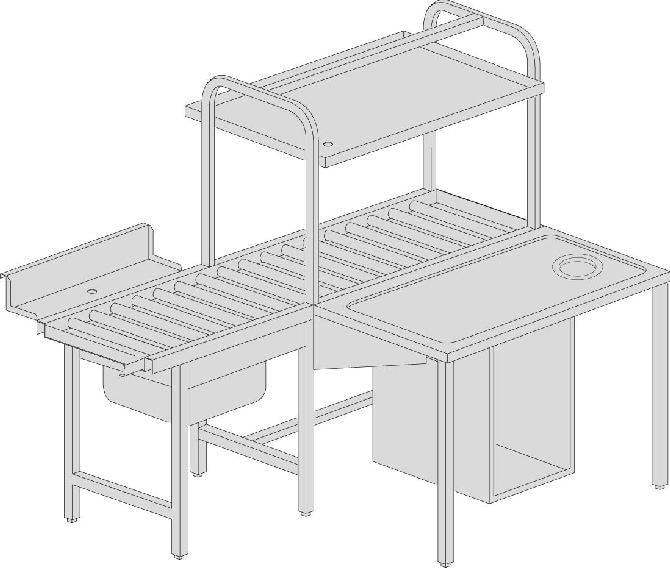

HAL RTC18

  • Sorting table
  • c/w mechanised basket advance
  • 1800 x 1450 x 1700mm

HAL RTC24

  • Sorting table
  • c/w mechanised basket advance
  • 2400 x 1450 x 1700mm
