Compare tech specs

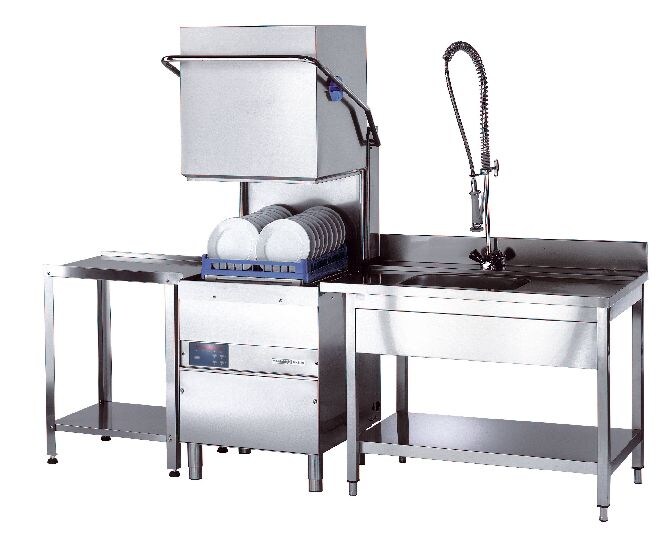

MH2040

  • MH2040 Rack size 500 x 500mm
  • Useable height 385mm
  • Dimensions W650 x D735 x H1460mm
  • Height adjustable from 1460 to 1530mm (hood closed)
  • From 1905 to 1975mm (hood open)
  • Three selectable cycles ranging from 50-300 secs
  • Power 7.6kW
  • 32 Amps required
£7,650.00

Features

  • 2 year warranty
  • Soft touch control fascia
  • Heavy duty construction
  • Supplied with one open/cup and one plate rack
  • Detergent pump optional
  • Stainless steel construction
  • Key Points
  • Tech Specs
  • Related Accessories
  • Downloads

  • 2 year warranty
  • Heavy duty construction
  • Soft touch control fascia
  • Double skinned insulated hood
  • Type AA breaktank
  • Wash tank designed to reduce water consumption and simplify cleaning
  • Three cycle options which can be programmed to match sites requirements to run between 50 and 300 seconds
  • Self-draining wash pump
  • Detergent doser optional
  • If drain pump required must be stated at point of order
  • Supplied with one open/cup and one plate rack
  • Supplied with surface scrap trays
  • Only supplied single phase
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 55°C (adjustable)
  • Rinse temperature 85°C (adjustable)

MH Hood Range MH2040 / D
Width x Depth x Height mm 650 x 735 x 1460mm
Feet Height 140 mm to 210mm
Basket size 500 x 500mm
Maximum useable height 390mm
Door Opening 410mm
Cycle times 50/300 Seconds
Water consumption per cycle 2.6 Litre
Wash tank capacity 42 Litre
Phase - Options Single Phase
Power – Single Phase Options 7.6kW(32A) – Single Phase
Power – Three Phase N/A
Detergent pump Optional
Rinse aid pump Yes
Drain pump Optional
Breaktank Yes
Water supply pressure 2 to 4 bar
Body Construction Single Skin
Door/Hood Construction Double Skinned
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles Three
Total Maximum Load(as supplied) 7.6kW(32A) – Single Phase

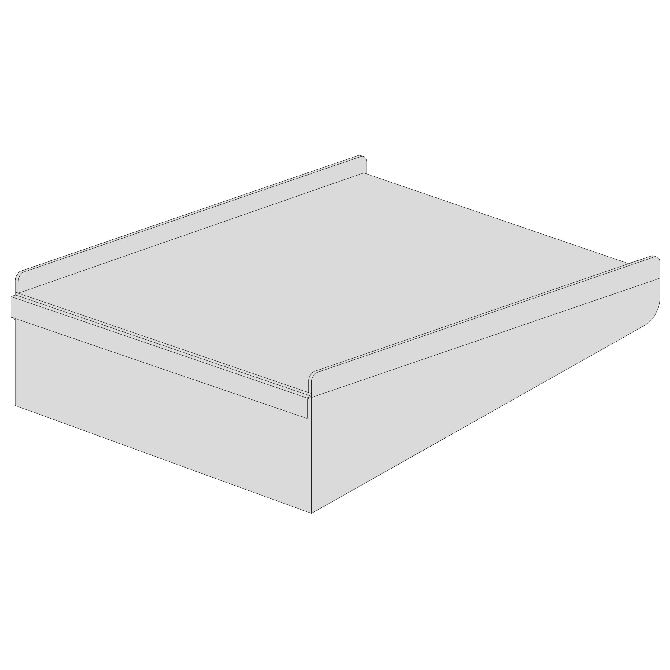

HAL T10

  • Overhang shelf
  • Secures to either side of machine
  • 510 x 600mm

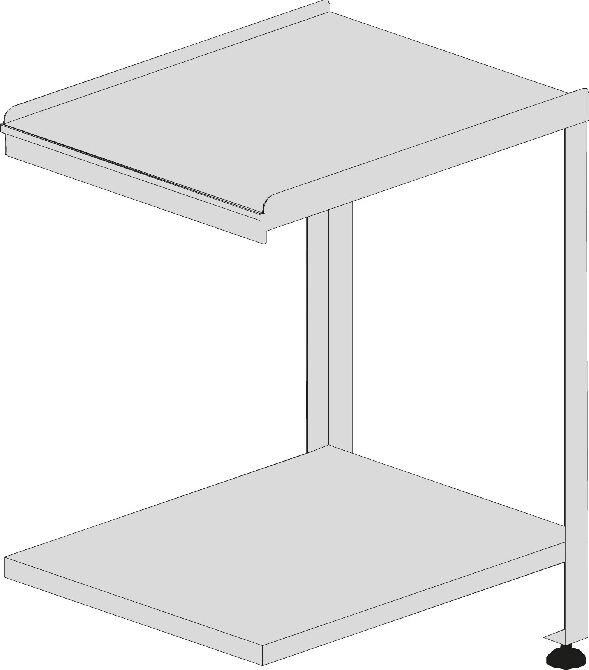

HAL T28

  • Open ended table
  • With undershelf
  • 510 x 650mm

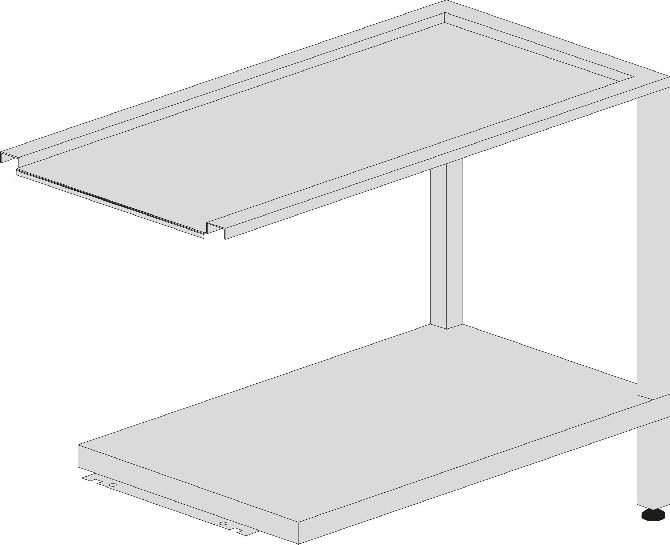

HAL T34A

  • Closed end table
  • 700mm long

HAL T34B

  • Closed end table
  • 1200mm long

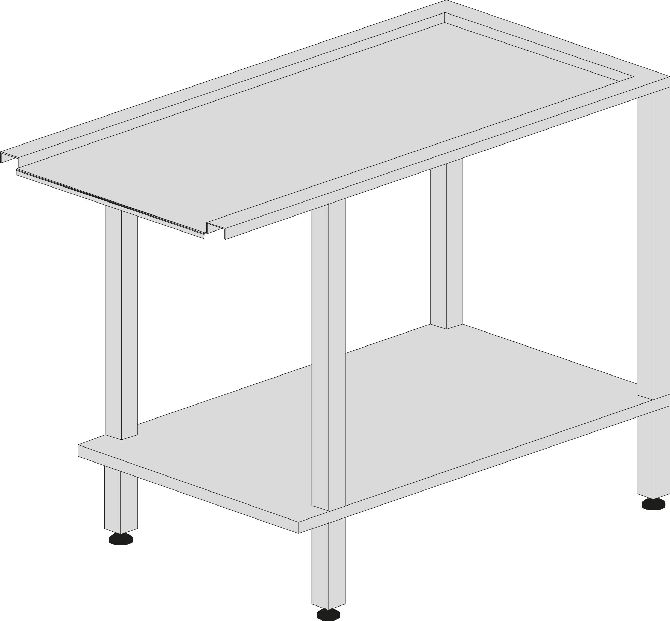

HAL T35

  • Closed end table
  • Left or right hand version
  • Standard length 1200mm

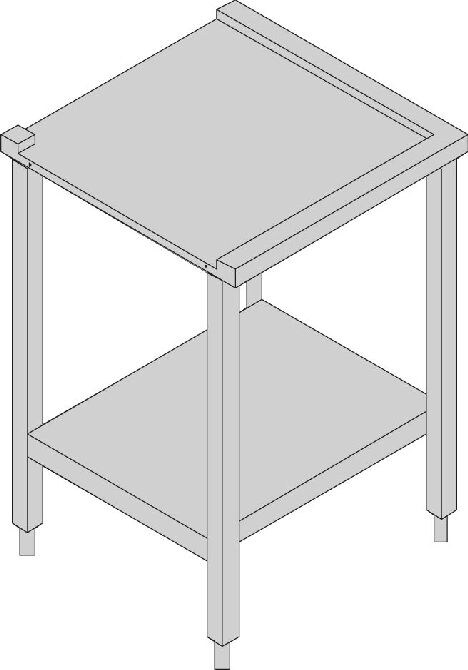

HAL A10

  • Corner table
  • 590 x 590 x 850

Q900016B

  • 16 litre manual water softener
  • Diameter 185mm
  • Height 620mm

Q900020B

  • 20 litre manual water softener
  • Diameter 185mm
  • Height 920mm

Q900100B

  • 10 litre automatic cold water softener
  • Height 525mm
  • Width 275mm

Q900105B

  • 15 litre automatic hot water softener
  • Height 650mm
  • Width 275mm

Q904008B

  • Externally fitted water supply pressure booster pump
  • Bronze head
  • 1" inlet and outlet female

Z972001

  • 500 x 500mm open glass/cup plastic basket

Z972003

  • 500 x 500mm open plastic plate basket

Z600100

  • Pre rinse Unit
  • Comes with monobloc
  • Without stem tap

Z600105

  • Pre rinse Unit
  • Comes with monobloc
  • Comes with stem tap 6"

Z600200

  • Pre rinse Unit
  • Twin Pillar
  • Without stem tap

Z600205

  • Pre rinse Unit
  • Twin Pillar
  • Comes with stem tap 6"
