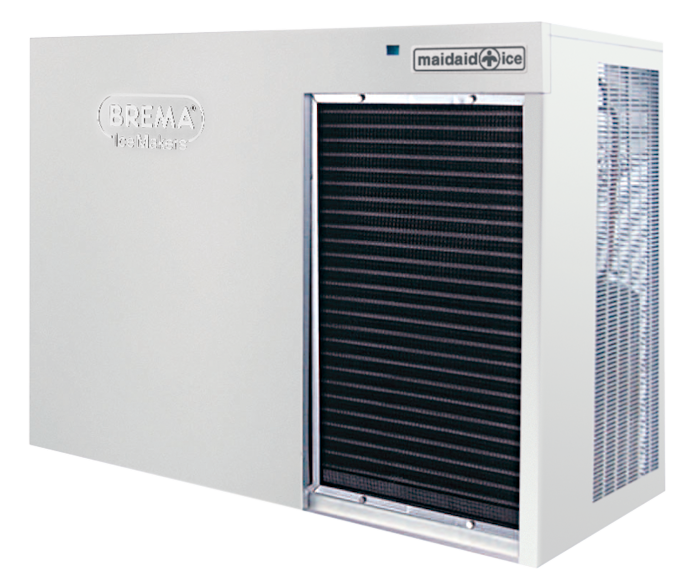

MVM1700 Modular Icemaker
W 1259 x D 645 x H 950mm Production (24 hours) 750kg Drain height 65mm (modular unit only) Water consumption (air cooled) 1.4 litres/kg Gross weight 186kg Power 4.3kW 240V, Single phase, 32 amp Require water supply pressure between 1 and 6 bar
Features
1 year warranty WRAS approved *Optimum ice production is at an ambient temperature of 21°C. Higher temperatures will dramatically reduce ice production*
1 year warranty WRAS approved Produces a mini 7 gram cube suitable for fast food outlets serving carbonated drinks Extra cold ice produced at -25°C Capable of operating in ambient temperatures of between 10°C and 43°C Supply water temperature between 3°C and 32°C * To produce ice of good quality all machines must have water softeners fitted to the water supply and must be of sufficient capacity and maintained in good order *
Maidaid
MVM1700
Width x Depth x Height mm
1250 x 645 x 950mm
Production in kg over 24hours#
770kg
Storage capacity
Bin dependent
Cooling system
Air
Ice type
Cube
Cube size
7g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
4300W (32A)
Water consumption L/Kg
A, 1.4
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
MT350
Weight nett / gross Kg
186 / 242kg
