Home > Ice Makers > Maidaid Modular >
Glasswashers
Dishwashers
Ice Makers
Halcyon ICE makers
Maidaid Cube
Maidaid Granular
Maidaid Pebble
Maidaid Modular
Modular, Granular & Flat
Maidaid Modular Storage Bins
Other Products
Compare tech specs

MVM900 Icemaker

  • W 770 x D 550 x H 805mm
  • Production (24 hours) 400kg
  • Drain height 40mm (modular unit only)
  • Water consumption (air cooled) 1.8 litres/kg
  • Water consumption (water cooled) 13 ltres/kg
  • Gross weight 113kg
  • Power 3kW
  • 240V, Single phase, 32 amp
  • Require water supply pressure between 1 and 6 bar
£4,860.00

Features

  • 1 year warranty
  • WRAS approved
  • *Optimum ice production is at an ambient temperature of 21°C. Higher temperatures will dramatically reduce ice production*
  • Key Points
  • Tech Specs
  • Related Accessories
  • Downloads

  • 1 year warranty
  • WRAS approved
  • Produces a mini 7 gram cube suitable for fast food outlets serving carbonated drinks
  • Extra cold ice produced at -25°C
  • Capable of operating in ambient temperatures of between 10°C and 43°C
  • Supply water temperature between 3°C and 32°C
  • Available to special order as water cooled version at the same price
  • * To produce ice of good quality all machines must have water softeners fitted to the water supply and must be of sufficient capacity and maintained in good order *

Maidaid MVM900
Width x Depth x Height mm 770 x 550 x 805mm
Production in kg over 24hours# 400kg
Storage capacity Bin dependant
Cooling system Air or Water
Ice type Cube
Cube size 7g
Refrigerant R404A
Power voltage/phase/Hz 240 / 1 / 50
Power watts / Amps 3000W (32A)
Water consumption L/Kg A, 1.8 / W, 13
Water supply pressure 1 to 6 bar
Ambient temperature between 10ºC / 43ºC
Water supply temperature between 3ºC / 32ºC
Bin type M240PE, MT200, MT350, MDR100
Weight nett / gross Kg 113 / 124kg

M240PE

  • 942 x 795 x 1153mm
  • Storage capacity 240kg

MT200

  • 870 x 790 x 1130mm
  • Storage capacity 200kg

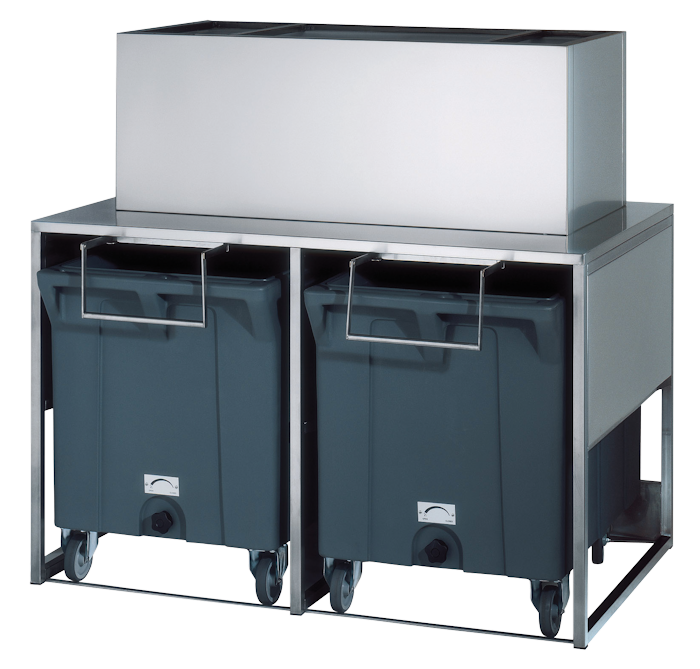

MDR100

  • 1560 x 970 x 1484mm
  • Bay 50kg
  • Trolley 108kg x 2

Q904200B

  • Drain/condensate pump

FILTKIT200

  • Filter Kit 200
  • Filter cartridge dimensions
  • H 525mm Diameter 80mm
