Maidaid Cube
M34-16HC Icemaker
500 x 580 x 790mm
Production (24 hours) 34kg
Bin capacity 16kg
R290 Environmental Friendly Gas
Maidaid
M34-16
Width x Depth x Height mm (inc Feet)
500 x 580 x 790mm
Production in kg over 24hours#
33kg
Storage capacity
16kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
370W (13A)
Water consumption L/Kg
3.3
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
48 / 56kg

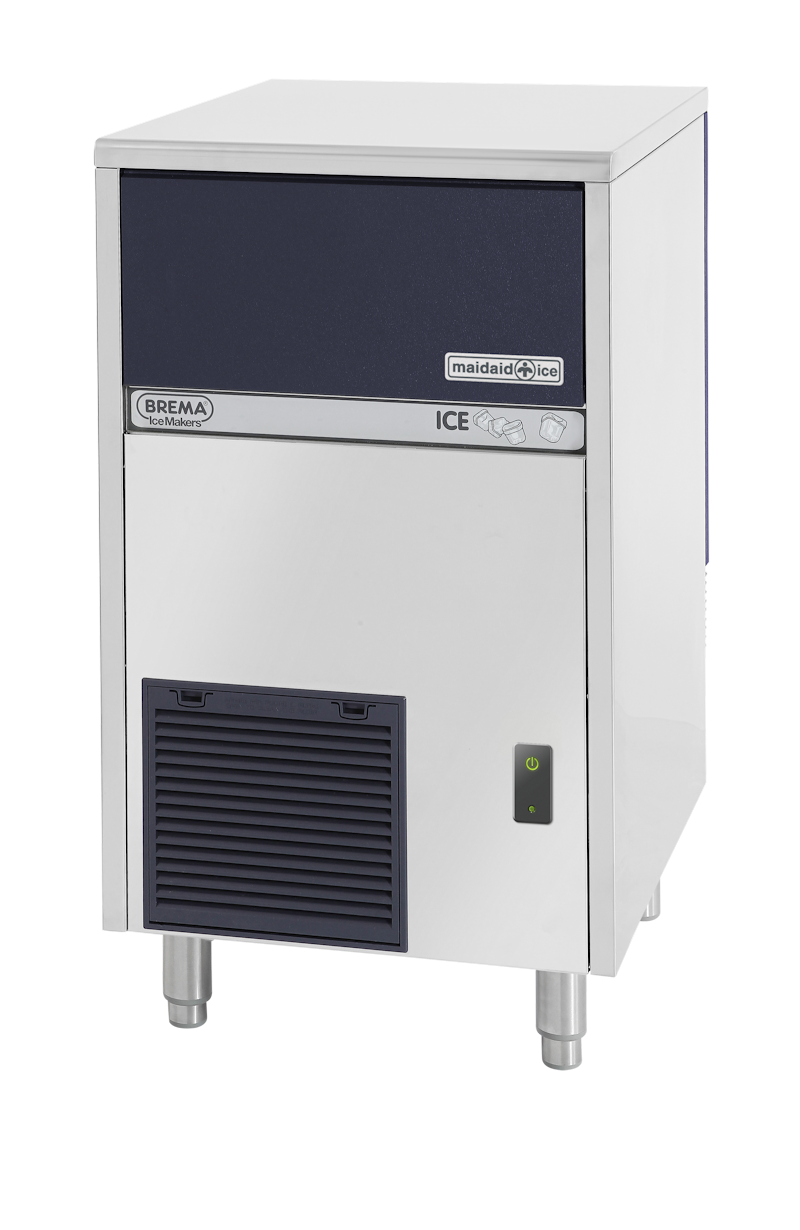

M50-25 Icemaker
500 x 580 x 900mm
Production (24 hours) 48kg
Bin capacity 25kg
R290 Gas
Maidaid
M50-25
Width x Depth x Height mm (inc Feet)
500 x 580 x 900mm
Production in kg over 24hours#
46kg
Storage capacity
25kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
500W (13A)
Water consumption L/Kg
4
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
56 / 64kg
M90-55 Icemaker
738 x 600 x 1120mm
Production (24 hours) 90kg
Bin capacity 55kg
R290 Gas
Maidaid
M90-55
Width x Depth x Height mm (inc Feet)
738 x 600 x 1120mm
Production in kg over 24hours#
90kg
Storage capacity
55kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
850W (13A)
Water consumption L/Kg
2.5
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
89 / 102kg

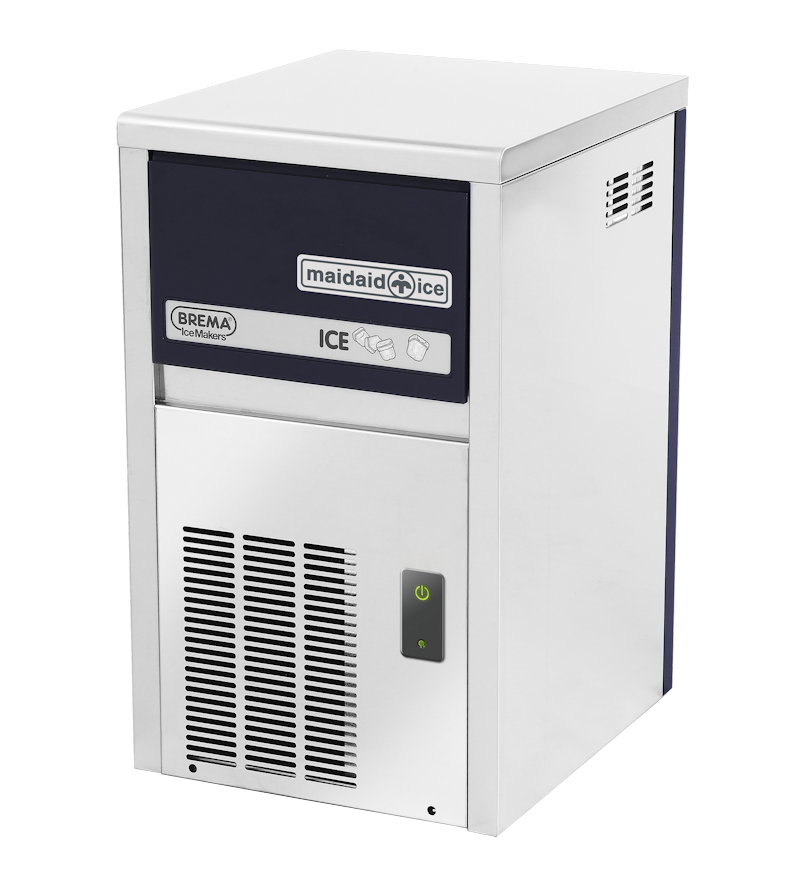

M22-5 Icemaker St/St Cabinet
345 x 400 x 595mm
Production (24 hours) 21kg
Bin capacity 5kg
R290 Environmental Friendly Gas
Maidaid
M22-5
Width x Depth x Height mm (inc Feet)
355 x 404 x 595mm
Production in kg over 24hours#
21kg
Storage capacity
5kg
Cooling system
Air
Ice type
Cube
Cube size
13g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
320W (13A)
Water consumption L/Kg
4.5
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
28 / 34kg
M30-10HC Icemaker
390 x 460 x 695mm
Production (24 hours) 28kg
Bin capacity 10kg
R290 Environmental Friendly Gas
Drain Pump
Maidaid
M30-10
Width x Depth x Height mm (inc Feet)
390 x 460 x 695mm
Production in kg over 24hours#
28kg
Storage capacity
10kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
370W (13A)
Water consumption L/Kg
5.1
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
37 / 44kg
M34-16 Icemaker
500 x 580 x 790mm
Production (24 hours) 34kg
Bin capacity 16kg
R290 Environmental Friendly Gas
Maidaid
M34-16
Width x Depth x Height mm (inc Feet)
500 x 580 x 790mm
Production in kg over 24hours#
34kg
Storage capacity
16kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
370W (13A)
Water consumption L/Kg
3.3
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
48 / 56kg
M42-16HC Icemaker
500 x 580 x 790mm
Production (24 hours) 42kg
Bin capacity 16kg
R290 Environmental Friendly Gas
Maidaid
M42-16
Width x Depth x Height mm (inc Feet)
500 x 580 x 790mm
Production in kg over 24hours#
42kg
Storage capacity
16kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
450W (13A)
Water consumption L/Kg
4
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
52 / 60kg

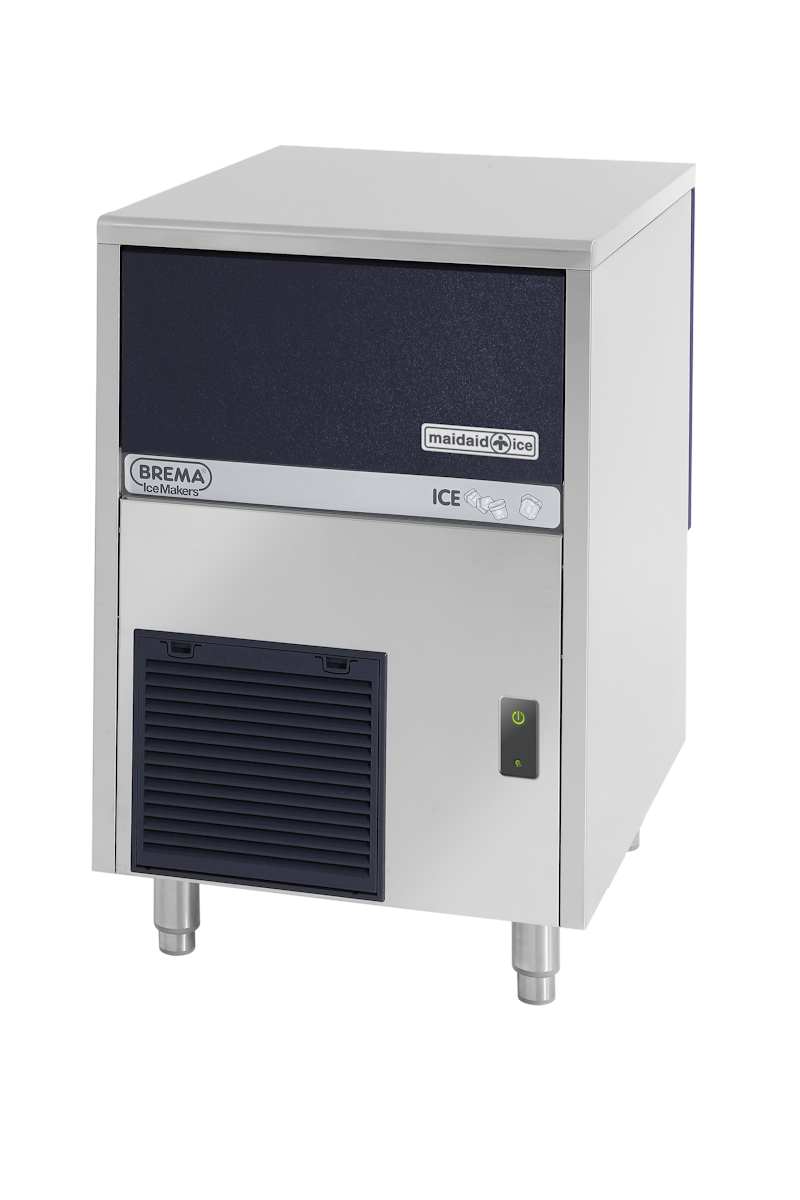

M42-16 Icemaker
500 x 580 x 790mm
Production (24 hours) 42kg
Bin capacity 16kg
R290 Environmental Friendly Gas
Maidaid
M42-16
Width x Depth x Height mm (inc Feet)
500 x 580 x 790mm
Production in kg over 24hours#
42kg
Storage capacity
16kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
450W (13A)
Water consumption L/Kg
4
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
52 / 60kg
M50-25 DP Icemaker
500 x 580 x 900mm
Production (24 hours) 48kg
Bin capacity 25kg
Drain Pump
R290 Environmental Friendly Gas
Maidaid
M50-25 DP
Width x Depth x Height mm (inc Feet)
500 x 580 x 900mm
Production in kg over 24hours#
46kg
Storage capacity
25kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
500W (13A)
Water consumption L/Kg
4
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
56 / 64kg

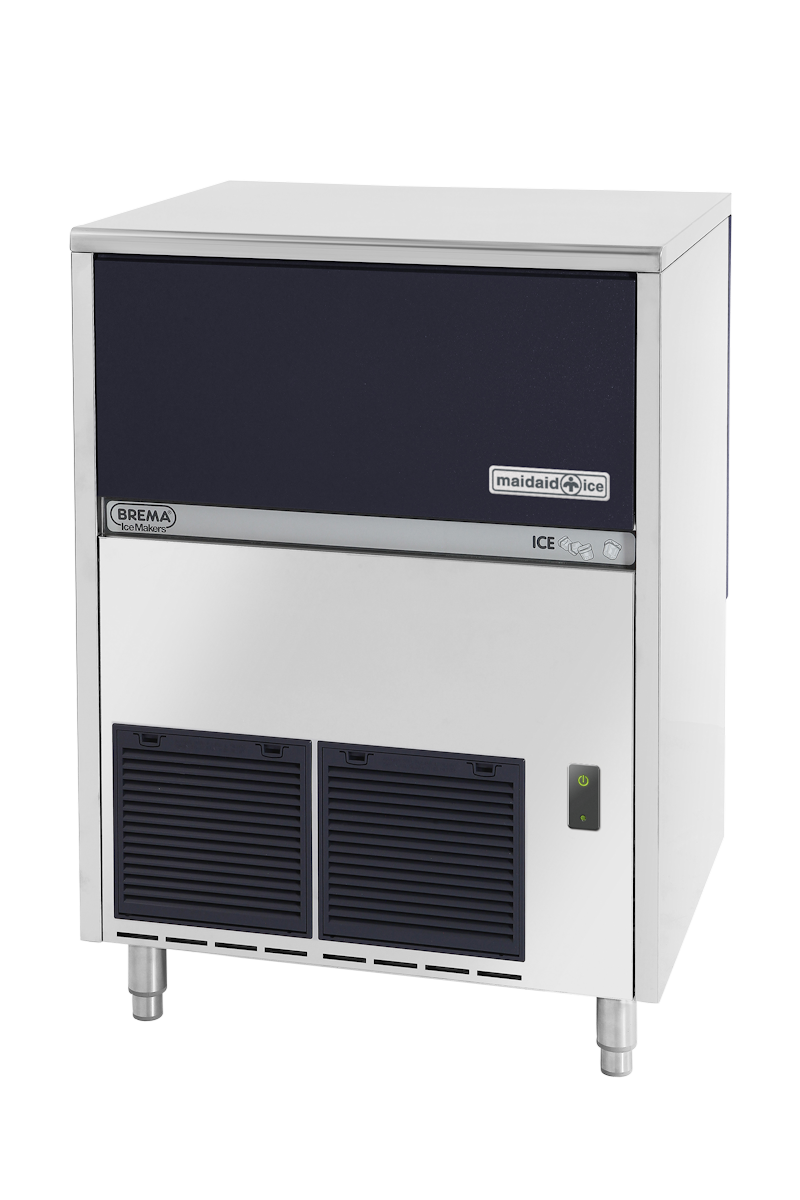

M65-40 Icemaker
738 x 600 x 1020mm
Production (24 hours) 65kg
Bin capacity 40kg
R290 Environmental Friendly Gas
Maidaid
M65-40
Width x Depth x Height mm (inc Feet)
738 x 600 x 1020mm
Production in kg over 24hours#
65kg
Storage capacity
40kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
650W (13A)
Water consumption L/Kg
2.8
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
77 / 89kg
M65-40 DP Icemaker
738 x 600 x 1020mm
Production (24 hours) 65kg
Bin capacity 40kg
Drain Pump
R290 Environmental Friendly Gas
Maidaid
M65-40 DP
Width x Depth x Height mm (inc Feet)
738 x 600 x 1020mm
Production in kg over 24hours#
65kg
Storage capacity
40kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
650W (13A)
Water consumption L/Kg
2.8
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
77 / 89kg
M90-55HC DP Icemaker
738 x 600 x 1120mm
Production (24 hours) 90kg
Bin capacity 55kg
Drain Pump
R290 Environmental Friendly Gas
Maidaid
M90-55 DP
Width x Depth x Height mm (inc Feet)
738 x 600 x 1120mm
Production in kg over 24hours#
90kg
Storage capacity
55kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
850W (13A)
Water consumption L/Kg
2.5
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
89 / 102kg

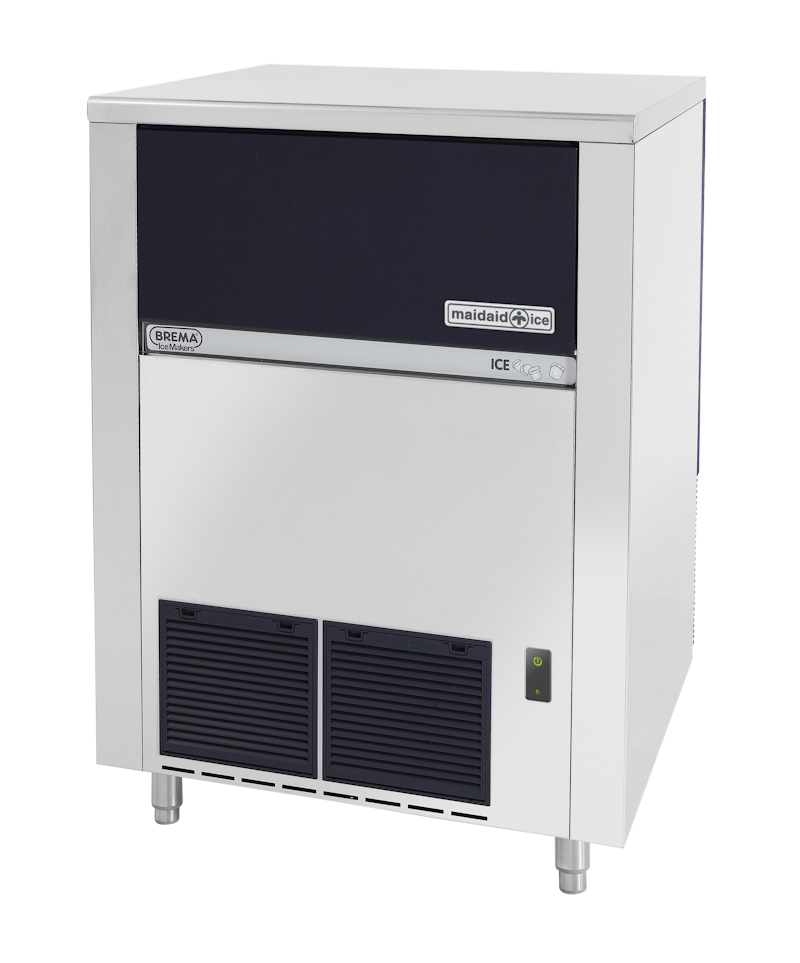

M130-65 Icemaker
840 x 740 x 1175mm
Production (24 hours) 130kg
Bin capacity 65kg
R290 Environmental Friendly Gas
Maidaid
M130-65
Width x Depth x Height mm (inc Feet)
840 x 740 x 1175mm
Production in kg over 24hours#
130kg
Storage capacity
65kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
1050W (13A)
Water consumption L/Kg
2.8
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
113 / 133kg
M130-65 DP Icemaker
840 x 740 x 1175mm
Production (24 hours) 130kg
Bin capacity 65kg
Drain Pump
R290 Environmental Friendly Gas
Maidaid
M130-65 DP
Width x Depth x Height mm (inc Feet)
840 x 740 x 1175mm
Production in kg over 24hours#
130kg
Storage capacity
65kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
1050W (13A)
Water consumption L/Kg
2.8
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
113 / 133kg
M30-10 Icemaker
390 x 460 x 695mm
Production (24 hours) 28kg
Bin capacity 10kg
R290 Environmental Friendly Gas
Maidaid
M30-10
Width x Depth x Height mm (inc Feet)
390 x 460 x 695mm
Production in kg over 24hours#
28kg
Storage capacity
10kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
370W (13A)
Water consumption L/Kg
5.1
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
37 / 44kg
M155-65HC Icemaker
840 x 740 x 1175mm
Production (24 hours) 155kg
Bin capacity 65kg
Maidaid
M155-65
Width x Depth x Height mm (inc Feet)
840 x 740 x 1175mm
Production in kg over 24hours#
155kg
Storage capacity
65kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
1400W (13A)
Water consumption L/Kg
2.6
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
118 / 138kg
M155-65HCDP Icemaker
840 x 740 x 1175mm
Production (24 hours) 155kg
Bin capacity 65kg
Maidaid
M155-65
Width x Depth x Height mm (inc Feet)
840 x 740 x 1175mm
Production in kg over 24hours#
155kg
Storage capacity
65kg
Cooling system
Air
Ice type
Cube
Cube size
18g
Refrigerant
R404A
Power voltage/phase/Hz
240 / 1 / 50
Power watts / Amps
1400W (13A)
Water consumption L/Kg
2.6
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
ABS
Weight nett / gross Kg
118 / 138kg
