Compare tech specs

U61e

  • U61e Rack size 610 x 550mm
  • Maximum useable height 650mm
  • Dimensions W720 x D780 x H1700/1760mm
  • 11 wash cycles from 2 to 12 minutes
  • Power 7.4kW
  • 11 amps required
£7,750.00

Features

  • 1 year warranty
  • New advanced design 'smart' sort touch electronic user interface
  • Accurate peristaltic rinse & detergent pumps standard
  • 1.4kW wash pump
  • Split door for easy access, lower section double skinned
  • Key Points
  • Tech Specs
  • Related Accessories
  • Downloads

  • 1 year warranty
  • New advanced design, 'smart' soft touch electronic uder interface
  • Self-diagnostics
  • Rinse aid and detergent pumps fitted as standard
  • Eleven wash cycles from 2 to 12 minutes
  • MRT - Maidaid Rinse Technology with breaktank
  • Stainless steel, double wall construction with stainless steel chassis
  • Vertically mounted wash pump - self-draining
  • Carefully designed moulded wash tank
  • Stainless steel wash and rinse arms
  • Split door for easy access, lower section double skinned
  • Stainless steel sliding rack
  • Supplied with one standard open basket
  • Tray holder and cutlery insets are available separtately
  • Self-cleaning cycle
  • Three phase and neutral
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 55°C (adjustable)
  • Rinse temperature 85°C (adjustable)

Pot Washers U61e
Width x Depth x Height mm(Inc.Feet) 720 x 780 x 1700 / 1760mm
Feet Height 135mm to 195mm
Basket size 610 x 550mm
Door clearance height 650mm
Cycle times 2 to 12 Mins
Water consumption per cycle (Litres) 4
Wash tank capacity (Litres) 37
Phase - Options 3 Phase
Power – Single Phase Options N/A
Power – Three Phase 7.4Kw (11A) – Three Phase
Detergent pump Yes
Rinse aid pump Yes
Drain pump N/A
Breaktank Yes
Water supply pressure 1 to 6 bar
Body Construction Double skin
Door/Hood Construction Double skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 11
Total Maximum Load(as supplied) 7.4Kw (11A) – Three Phase

MH101489B

  • Stainless Steel sliding rack
  • 550 x 610mm

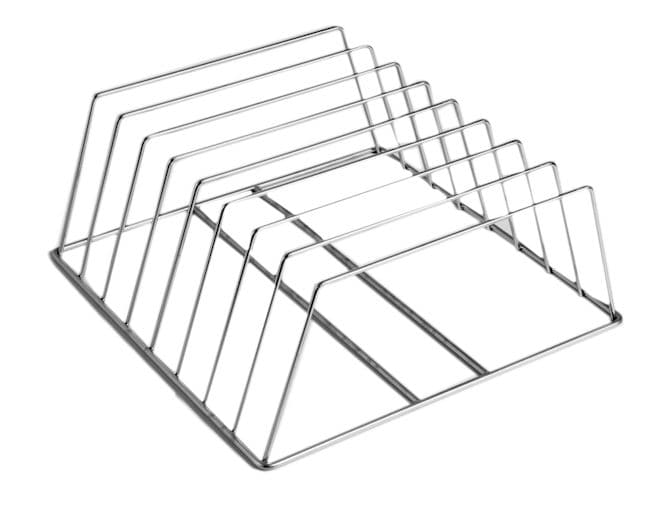

MH103454B

  • Stainless Steel insert
  • For 8 trays

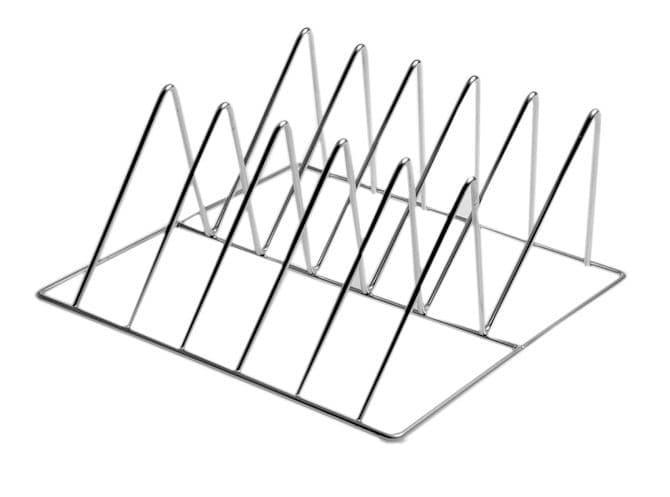

MH101491B

  • Stainless Steel insert
  • For 5 trays

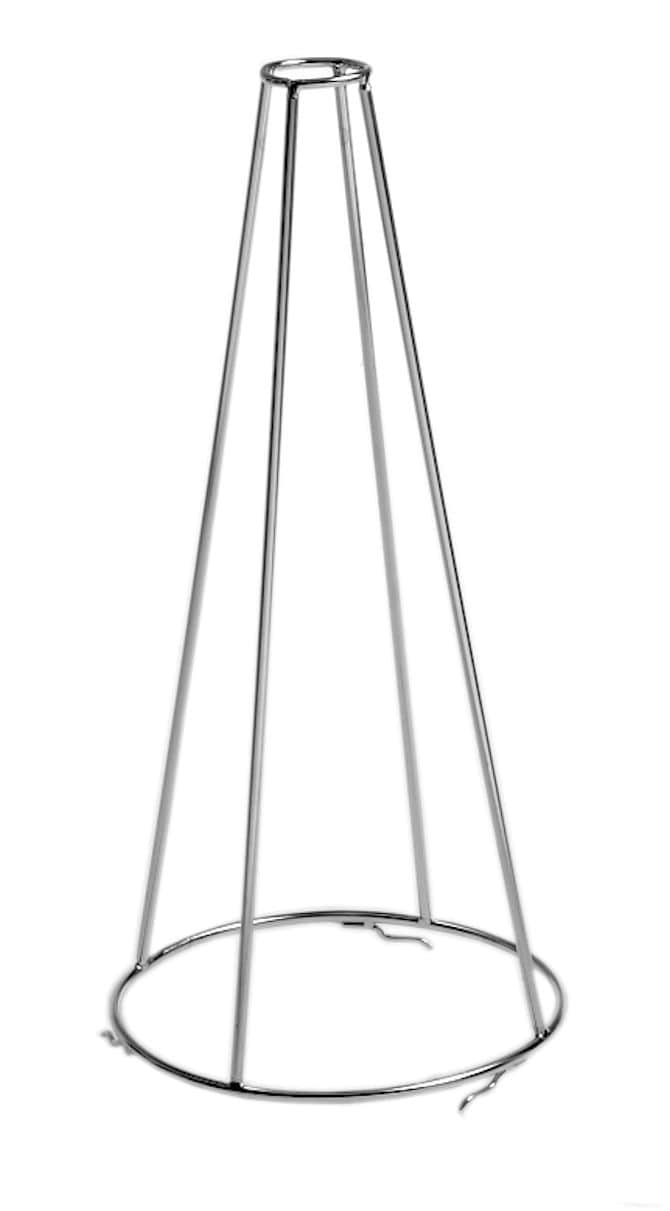

MH101492B

  • Stainless Steel insert
  • For piping bags & funnels

MH103455B

  • Stainless Steel insert
  • For cutlery & utensils
