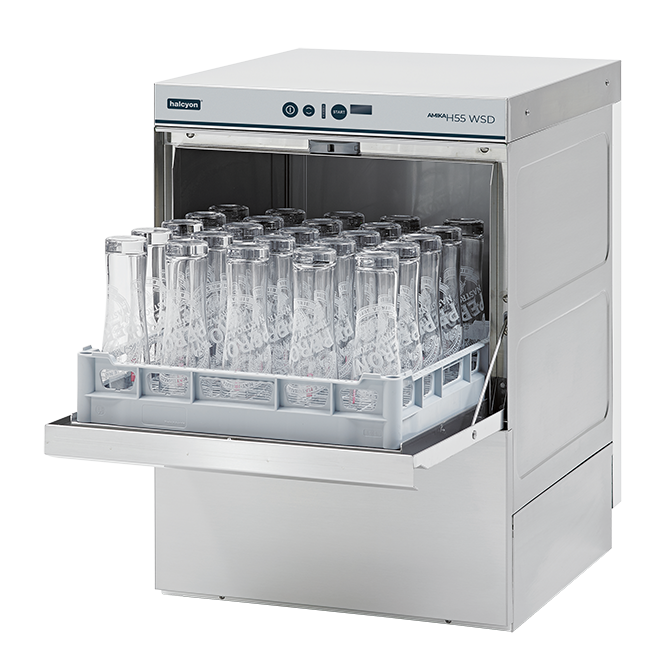

AMH55WS
- AMH55WSD with internal softener
- Breaktank and fitted drain pump as standard
- 500 x 500mm rack
- Maximum useable height 340mm
- Dimensions W580 x D610 x H810mm
- Height excludes adjustable feet which
will add 10 - 20mm
- 1 year warranty
- Increased usable height
- Three button bright LED display with soft touch controls and alarms menu
- Accurate detergent & rinse aid peristaltic dosing pumps with dosing setup by fascia controls
- Easy clean parallel wash and rinse arm assembly
- Internal automatic water softener, drain pump & breaktank as standard
- Optional surface scrap tray filters
- Supplied with one open cup/glass rack, one pegged plate rack & cutlery insert as standard
| AMH - Undercounter |
AMH55WSD |
| Width x Depth x Height mm |
580 x 610 x 810mm |
| Feet Height |
10mm-20mm |
| Basket size |
500x500mm |
| Maximum useable height |
340mm |
| Door Opening |
365mm |
| Cycle times |
90/180 Seconds |
| Water consumption per cycle |
2.5 Litres |
| Wash tank capacity |
20 Litres |
| Phase - Options |
Single/3-Phase |
| Power – Single Phase Options |
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp) |
| Power – Three Phase |
6.5kW(16Amp) |
| Detergent pump |
Peristaltic - non timed |
| Rinse aid pump |
Peristaltic - non timed |
| Drain pump |
Yes |
| Breaktank |
Yes |
| Water supply pressure |
2 to 4 Bar |
| Body Construction |
Single Skin |
| Door/Hood Construction |
Double Skin |
| Scrap Trays |
Optional |
| Internal Rinse Booster Pump |
N/A |
| Number Of Cycles |
2 |
| Total Maximum Load(as supplied) |
6.5kW(30Amp) - Single Phase |
You can access all spares relating to this machine via the following link
