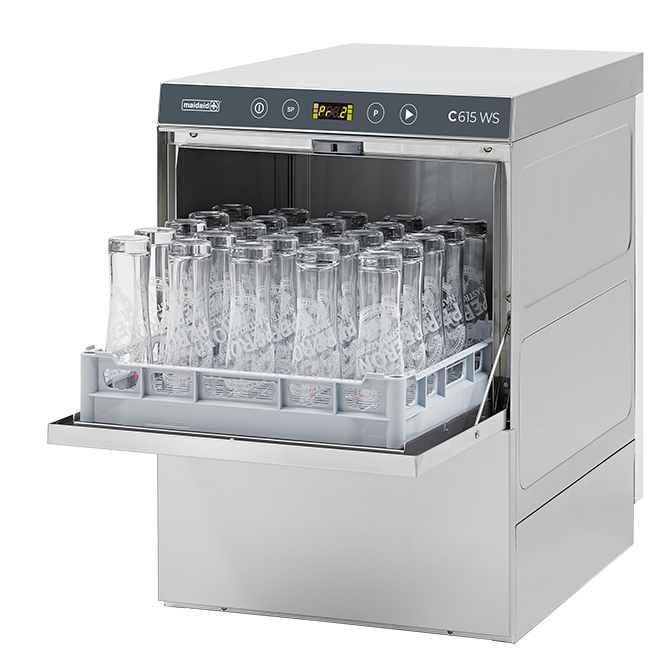

C615WS
- C615WS Tray/Dishwasher
- Internal softener, breaktank & fitted drain pump as standard
- 500 x 600mm rack
- Maximum useable height 375mm
- Dimensions W580 x D700 x H840mm
- Height excludes adjustable feet which
will add 10 - 20mm
- Three standard cycle time options with further options available
- Cycle times can be tailored to site requirements
- Power 2.8/4.7/6.7kW
- 13/20/30 Amps
- View the operator training video here https://youtu.be/ER0Ql-YGbKc?si=mbxmE8WsI3iojvh4
- 2 year warranty
- Available as a glass or dishwasher please specify at point of order
- Undercounter 500 x 600 rack, tray/dishwasher
- Four button bright LED display with soft touch controls, twin traffic lights giving instant status updates & operational self-diagnostics
- Alarms menu with hi-level information retrieval
- Enhanced wash action from quick release triple wash & rinse arm design
- Stainless steel surface scrap tray filters supplied as standard
- Automatic continuous internal water softener
- Drain pump & breaktank supplied as standard
- Offers a substantial usable height of 375mm to cater for large washware
- Three standard cycle time options with further options available
- Cycle times can be tailored to site requirements
- Automatic self-cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Patented dual flow wash pump with soft start - reducing power consumption whilst retaining wash efficiency
- Moulded wash tank for easy cleaning
- Moulded rack guide giving partial double skin
- Accurate detergent & rinse aid peristaltic dosing pumps as standard
- Supplied with one 500 x 600mm pegged rack & one 500 x 500mm open rack
- Compatible with 500 x 500mm racks
| C Range - Undercounter |
C615WS |
| Width x Depth x Height mm |
580x700x840mm |
| Feet Height |
10mm-20mm |
| Basket size |
500x600mm |
| Maximum useable height |
375mm |
| Door Opening |
405mm |
| Cycle times |
90/120/150 Seconds |
| Water consumption per cycle |
2.5 Litres |
| Wash tank capacity |
23 Litres |
| Phase - Options |
Single/3-Phase |
| Power – Single Phase Options |
2.8kW(13Amp),4.7kW(20Amp),
6.7kW(30Amp) |
| Power – Three Phase |
6.7kW(16Amp) |
| Detergent pump |
Peristaltic - non timed |
| Rinse aid pump |
Peristaltic - non timed |
| Drain pump |
Yes |
| Breaktank |
Yes |
| Water supply pressure |
2 to 4 Bar |
| Body Construction |
Partial Double Skin |
| Door/Hood Construction |
Double Skin |
| Scrap Trays |
Yes |
| Internal Rinse Booster Pump |
Yes |
| Number Of Cycles |
3 |
| Total Maximum Load(as supplied) |
6.7kW(30Amp) - Single Phase |
You can access all spares relating to this machine via the following link
