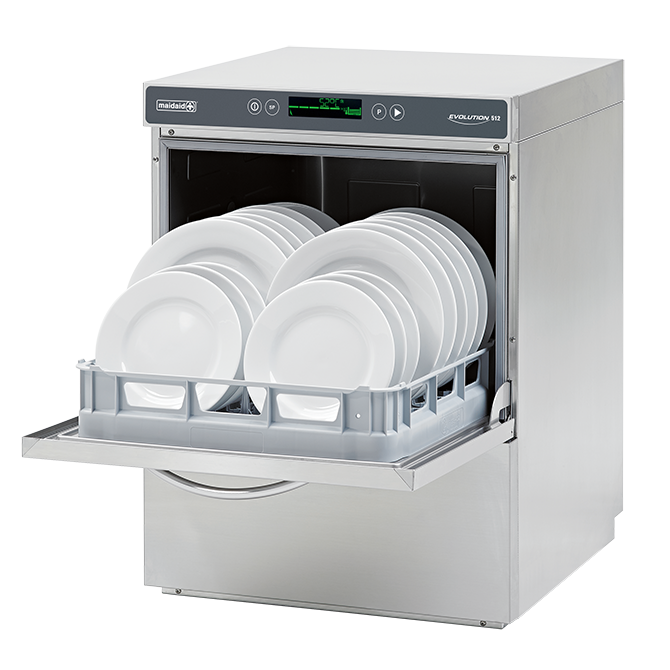

EVO512
- EVO512 pumped waste
- Breaktank as standard
- 500 x 500mm rack
- Maximum useable height 365mm
- Dimensions W600 x D600 x H810mm
- Height excludes adjustable feet which
will add 10 - 20mm
- Three standard cycle time options
- Extensive range of special cycles
- Cycle times can be tailored to site requirements
- Power 2.6/4.5/6.5kW
- 13/20/30 Amps
- View the operator training video here https://youtu.be/ZjPQsdA3sf0?si=0n03bdw-_FEFix5P
- 2 year warranty

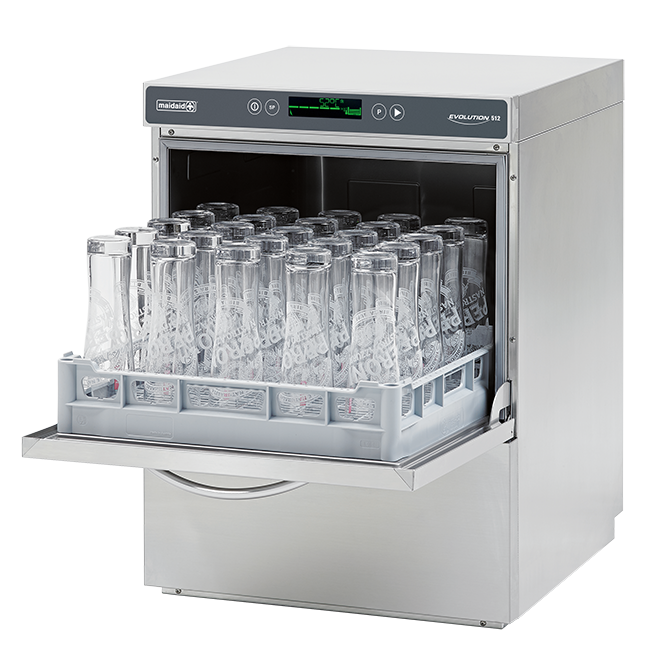

- Available as a glass or dishwasher please specify at point of order
- Polychromatic LCD display and user interface giving uncomplicated machine status updates
- Improved wash action from quick release parallel wash & rinse arm design
- Stainless steel scrap tray filters supplied as standard
- Improved triple wash tank filtration
- Four button control fascia with special programmes button, operational self-diagnostics & alarms menu
- Drain pump & breaktank supplied as standard
- Three standard cycle options with an extensive range of special cycles
- Cycle times can be tailored to site requirements
- Reduced water consumption
- Comprehensive automatic self cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Fully double skinned minimising both acoustic output and reduced heat loss
- Patented dual flow wash pump with soft start - reducing power consumption whilst retaining wash efficiency
- Full door seal & door ajar facility
- Moulded wash tank for easy cleaning
- Moulded rack guide
- Accurate detergent and rinse aid peristaltic dosing pumps as standard
- Priming and dosing of chemicals enabled from fascia controls
- Supplied with one pegged rack, one open cup/glass rack & cutlery insert
| Evo - undercounter |
EVO512 |
| Width x Depth x Height mm |
600 x 600 x 810mm |
| Feet Height |
10mm-20mm |
| Basket size |
500x500mm |
| Maximum useable height |
365mm |
| Door Opening |
390mm |
| Cycle times |
90/120/150 Seconds |
| Water consumption per cycle |
1.8 Litres |
| Wash tank capacity |
15 Litres |
| Phase - Options |
Single/3-Phase |
| Power – Single Phase Options |
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp) |
| Power – Three Phase |
6.5kW(16Amp) |
| Detergent pump |
Peristaltic-Non Timed |
| Rinse aid pump |
Peristaltic-Non Timed |
| Drain pump |
Yes |
| Breaktank |
Yes |
| Water supply pressure |
2 to 4 Bar |
| Body Construction |
Double Skin |
| Door/Hood Construction |
Double Skin |
| Scrap Trays |
Yes |
| Internal Rinse Booster Pump |
Yes |
| Number Of Cycles |
3 |
| Total Maximum Load(as supplied) |
6.5kW(30Amp) – Single Phase |
You can access all spares relating to this machine via the following link
