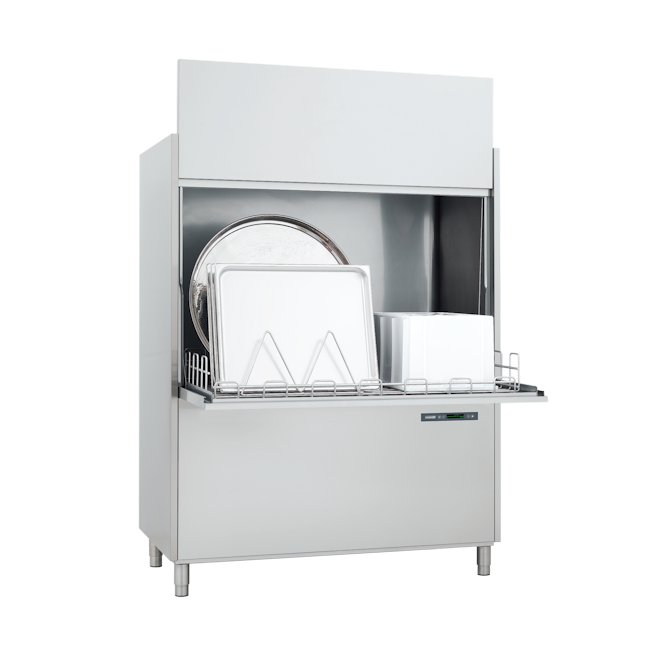

UT132e
- UT132e Rack size 1320 x 700mm
- Door clearance height 850mm
- Dimensions W1465 x D872 x H1959
- 8 cycles (4 standard / 4 SP) from 2 to 12 minutes
- Power 16kW (3 phase only)
- 32 amps required
- For full spec download the new UT range brochure
Features
- 1 year warranty
- NEW heat recovery module available on complete range
- NEW polychromatic LCD display
- NEW two dual flow wash pumps
- NEW extensive range of accessories available
- 1 year warranty
- NEW factory fitted heat recovery module available on all models
- NEW Polychromatic LCD display and user interface giving uncomplicated machine status updates
- NEW four button control fascia with special programs (SP) option
- NEW two dual flow wash pumps - reduces power consumption whilst retaining wash efficiency. Energy savings of up to 20% can be achieved
- NEW advanced design, 'smart' soft touch electronic user interface
- NEW Hi-level configuration information available for both installations and service technicians
- NEW extensive range of accessories available including a range of trays, gastronorm holders and cutlery rack inserts
- Enhanced self-diagnostics
- Minimised footprint
- Precise detergent & rinse aid pumps as standard
- Vertically mounted wash pump - self draining
- Pressed wash tank carefully designed for easy cleaning
- Internal pressure boosting pump for consistent pressure on rinse cycle
- Double wall split door for easy loading
- Stainless steel sliding rack on easy glide skids
- The sturdy, double-walled AISI 304 stainless steel construction, in addition to guaranteeing long-term reliability, reduces heat loss and noise

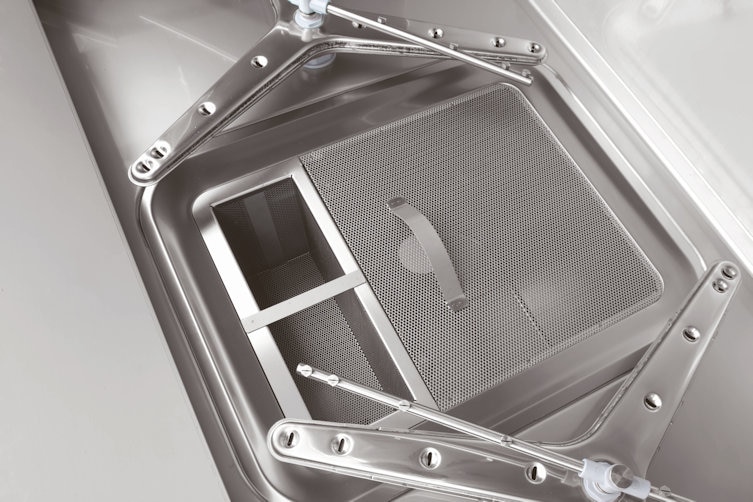

- Fully stainless scrap filter trays, baskets & wash and rinse arm design
Pot Washers |
UT132e |
Width x Depth x Height |
1465 x 872 x 1959 (+/-30mm adjustable feet) |
Feet Height |
135mm to 195mm |
Basket size |
1320 x 700mm |
Door clearance height |
850mm |
Cycle times |
2 to 12 Mins |
Water consumption per cycle (Litres) |
6 to 8 |
Wash tank capacity (Litres) |
131 |
Phase - Options |
3 Phase only |
Power – Single Phase Options |
N/A |
Power – Three Phase |
16Kw (32A) – Three Phase |
Detergent pump |
Yes |
Rinse aid pump |
Yes |
Drain pump |
N/A |
Breaktank |
Yes |
Water supply pressure |
1 to 4 bar |
Body Construction |
Double Skin |
Door/Hood Construction |
Double Skin |
Scrap Trays |
Yes |
Internal Rinse Booster Pump |
Yes |
Number Of Cycles |
8 (4 standard / 4 SP) |
Total Maximum Load(as supplied) |
16Kw (32A) – Three Phase |
You can access all spares relating to this machine via the following link
