UT61e
- UT61e Rack size 550 x 610mm
- Door clearance height 650mm
- Dimensions W719 x D802 x H1727
- 8 cycles (4 standard / 4 SP) from 2 to 12 minutes
- Power 10.5kW (3 phase)
- 16 amps required
- For full spec download the new UT range brochure
Features
- 1 year warranty
- NEW heat recovery module available on complete range
- NEW polychromatic LCD display
- NEW dual flow wash pump
- NEW extensive range of accessories available
- 1 year warranty
- NEW factory fitted heat recovery module available on all models
- NEW Polychromatic LCD display and user interface giving uncomplicated machine status updates
- NEW four button control fascia with special programs (SP) option
- NEW dual flow wash pump - reduces power consumption whilst retaining wash efficiency. Energy savings of up to 20% can be achieved

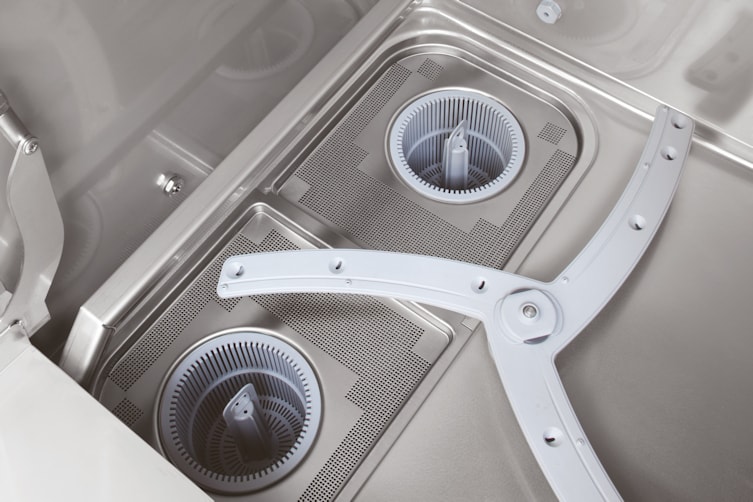

- NEW composite quick release wash/rinse combination arm design
- NEW advanced design, 'smart' soft touch electronic user interface
- NEW Hi-level configuration information available for both installations and service technicians
- NEW extensive range of accessories available including a range of trays, gastronorm holders and cutlery rack inserts
- Enhanced self-diagnostics
- Minimised footprint
- Precise detergent & rinse aid pumps as standard
- Vertically mounted wash pump - self draining
- Pressed wash tank carefully designed for easy cleaning
- Internal pressure boosting pump for consistent pressure on rinse cycle
- Double wall split door for easy loading
- Stainless steel sliding rack on easy glide skids
- The sturdy, double-walled AISI 304 stainless steel construction, in addition to guaranteeing long-term reliability, reduces heat loss and noise
| Pot Washers |
UT61e |
| Width x Depth x Height |
719 x 802 x 1727 (+/-30mm adjustable feet) |
| Feet Height |
135mm to 195mm |
| Basket size |
550 x 610mm |
| Door clearance height |
650mm |
| Cycle times |
2 to 12 Mins |
| Water consumption per cycle (Litres) |
3 to 4.5 |
| Wash tank capacity (Litres) |
37 |
| Phase - Options |
3 Phase only |
| Power – Single Phase Options |
N/A |
| Power – Three Phase |
10.5kW (16A) – Three Phase |
| Detergent pump |
Yes |
| Rinse aid pump |
Yes |
| Drain pump |
N/A |
| Breaktank |
Yes |
| Water supply pressure |
1 to 4 bar |
| Body Construction |
Double Skin |
| Door/Hood Construction |
Double Skin |
| Scrap Trays |
Yes |
| Internal Rinse Booster Pump |
Yes |
| Number Of Cycles |
8 (4 standard / 4 SP) |
| Total Maximum Load(as supplied) |
10.5kW (16A) – Three Phase |
You can access all spares relating to this machine via the following link
