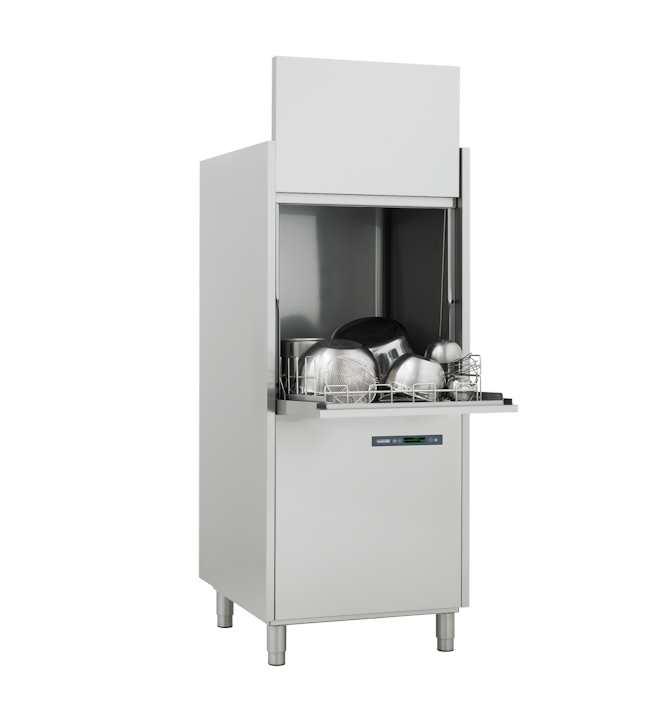

UT61eHR
- UT61eHR Rack size 550 x 610mm
- Door clearance height 650mm
- Dimensions W719 x D802 x H1957
- 8 cycles (4 standard / 4 SP) from 2 to 12 minutes
- Power 10.5kW (3 phase)
- 16 amps required
- For full spec download the new UT range brochure
Features
- Factory fitted heat recovery module
- Potential to save 30% on power required to heat rinse water (cycle dependant)
- Almost complete elimination of steam release when door opened, dramatically improves working environment
- All cycle times extended by 30 to 60 seconds (model dependant)
- Not for use with osmotic treated water supply, stainless steel version required
- 1 year warranty
- NEW factory fitted heat recovery module available on all models
- NEW Polychromatic LCD display and user interface giving uncomplicated machine status updates
- NEW four button control fascia with special programs (SP) option
- NEW dual flow wash pump - reduces power consumption whilst retaining wash efficiency. Energy savings of up to 20% can be achieved
- NEW composite quick release wash/rinse combination arm design
- NEW advanced design, 'smart' soft touch electronic user interface
- NEW Hi-level configuration information available for both installations and service technicians
- NEW extensive range of accessories available including a range of trays, gastronorm holders and cutlery rack inserts
- Enhanced self-diagnostics
- Minimised footprint
- Precise detergent & rinse aid pumps as standard
- Vertically mounted wash pump - self draining
- Pressed wash tank carefully designed for easy cleaning
- Internal pressure boosting pump for consistent pressure on rinse cycle
- Double wall split door for easy loading
- Stainless steel sliding rack on easy glide skids
- The sturdy, double-walled AISI 304 stainless steel construction, in addition to guaranteeing long-term reliability, reduces heat loss and noise
| Pot Washers | UT61eHR |
|---|
| Width x Depth x Height inc HR | 719 x 802 x 1957 (+/-30mm adjustable feet) | | Feet Height | 135mm to 195mm | | Basket size | 550 x 610mm | | Door clearance height | 650mm | | Cycle times | 2 to 12 Mins | | Water consumption per cycle (Litres) | 3 to 4.5 | | Wash tank capacity (Litres) | 37 | | Phase - Options | 3 Phase only | | Power – Single Phase Options | N/A | | Power – Three Phase | 10.5kW (16A) – Three Phase | | Detergent pump | Yes | | Rinse aid pump | Yes | | Drain pump | N/A | | Breaktank | Yes | | Water supply pressure | 1 to 4 bar | | Body Construction | Double Skin | | Door/Hood Construction | Double Skin | | Scrap Trays | Yes | | Internal Rinse Booster Pump | Yes | | Number Of Cycles | 8 (4 standard / 4 SP) | | Total Maximum Load(as supplied) | 10.5kW (16A) – Three Phase |
You can access all spares relating to this machine via the following link
