Halcyon Amika Range
Halcyon Amika is our entry level machine range that has been designed to fit your cost requirments.
AMH51
AMH51 gravity waste version
500 x 500mm rack
W580 x D610 x H810mm
AMH - Undercounter
AMH51 / AMH51D
Width x Depth x Height mm
580 x 610 x 810mm
Feet Height
10mm-20mm
Basket size
500x500mm
Maximum useable height
340mm
Door Opening
365mm
Cycle times
90/180 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
20 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
AMH51 - No
AMH51D - Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Double Skin
Scrap Trays
Optional
Internal Rinse Booster Pump
N/A
Number Of Cycles
2
Total Maximum Load(as supplied)
6.5kW(30Amp) - Single Phase
AMH51D
AMH51D pumped waste version
500 x 500mm rack
W580 x D610 x H810mm
AMH55WS
AMH55WSD with internal softener
500 x 500mm rack
W580 x D610 x H810mm
AMH - Undercounter
AMH55WSD
Width x Depth x Height mm
580 x 610 x 810mm
Feet Height
10mm-20mm
Basket size
500x500mm
Maximum useable height
340mm
Door Opening
365mm
Cycle times
90/180 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
20 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Double Skin
Scrap Trays
Optional
Internal Rinse Booster Pump
N/A
Number Of Cycles
2
Total Maximum Load(as supplied)
6.5kW(30Amp) - Single Phase

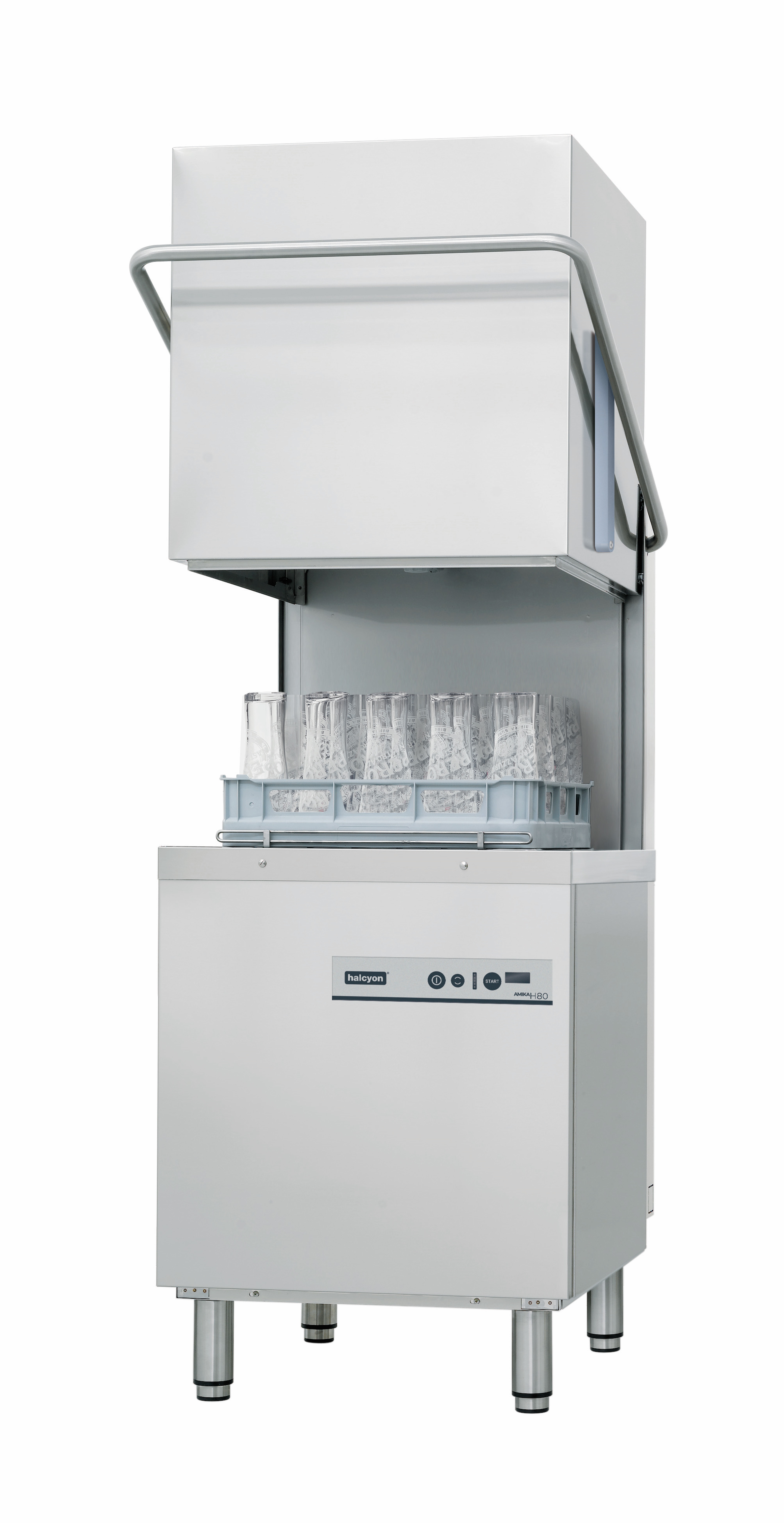

AMH80
AMH80 gravity waste version
500 x 500mm rack
W640 x D745 x H1500mm
AMH Hood
AMH80 / AMH80D
Width x Depth x Height mm
640 x 745 x 1500mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 500mm
Maximum useable height
435mm
Door Opening
460mm
Cycle times
90/180 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
15 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
4.5kW(20Amp),6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
AMH80 - No
AMH80D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Single Skin
Scrap Trays
No
Internal Rinse Booster Pump
N/A
Number Of Cycles
2
Total Maximum Load(as supplied)
6.5kW(30A) – Single Phase
AMH80D
AMH80D pumped waste version
500 x 500mm rack
W640 x D745 x H1500mm
AMH91
AMH91 gravity waste version
500 x 500mm rack
W640 x D745 x H1500mm
AMH Hood
AMH91 / AMH91D
Width x Depth x Height mm
640 x 745 x 1500mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 500mm
Maximum useable height
435mm
Door Opening
460mm
Cycle times
90/180 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
15 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
4.5kW(20Amp),6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
AMH91 - No
AMH91D - Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Single Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
2
Total Maximum Load(as supplied)
6.5kW(30A) – Single Phase
AMH91D
AMH91D pumped waste version
500 x 500mm rack
W640 x D745 x H1500mm
AMH95WSD
AMH95XLD with internal softener
500 x 500mm rack
W640 x D745 x H1500mm
AMH Hood
AMH95WSD
Width x Depth x Height mm
640 x 745 x 1500mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 500mm
Maximum useable height
435mm
Door Opening
460mm
Cycle times
90/180 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
15 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
4.5kW(20Amp),6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Single Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
2
Total Maximum Load(as supplied)
6.5kW(30A) – Single Phase
