Halcyon Amika Range
The AMH Range - Entry level machines that have been designed to fit your cost requirments.

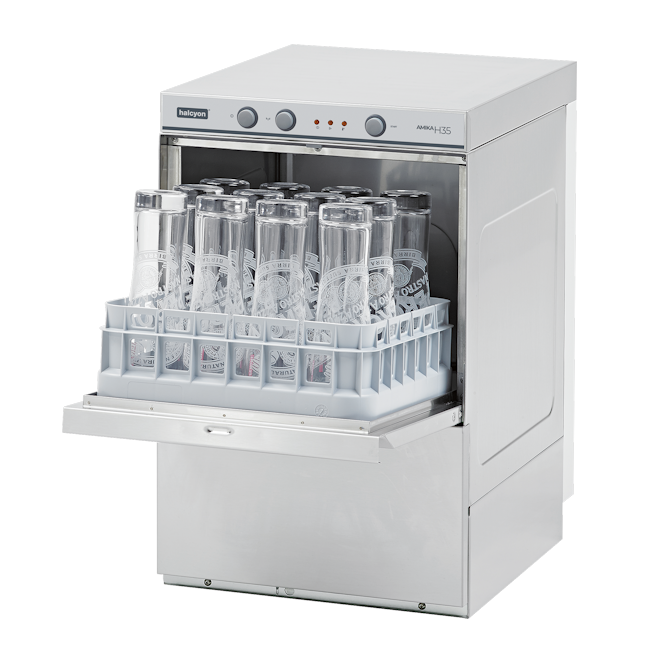

AMH35
AMH35 gravity waste version
350 x 350mm rack
W400 x D495 x H590mm
AMH - Undercounter
AMH35 / AMH35D
Width x Depth x Height mm
400 x 495 x 590mm
Feet Height
10mm-20mm
Basket size
350x350mm
Maximum useable height
240mm
Door Opening
260mm
Cycle times
120 seconds
Water consumption per cycle
1.9 Litres
Wash tank capacity
7 Litres
Phase - Options
Single Phase Only
Power – Single Phase Options
2.8kW(13AMP)
Power – Three Phase
N/A
Detergent pump
Peristaltic-non timed
Rinse aid pump
Peristaltic-non timed
Drain pump
AMH35 - No
AMH35D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Single skin
Door/Hood Construction
Double Skin
Scrap Trays
No
Internal Rinse Booster Pump
N/A
Number Of Cycles
1
Total Maximum Load(as supplied)
2.8kW(13Amp) - Single Phase
AMH35D
AMH35D pumped waste version
350 x 350mm rack
W400 x D495 x H590mm

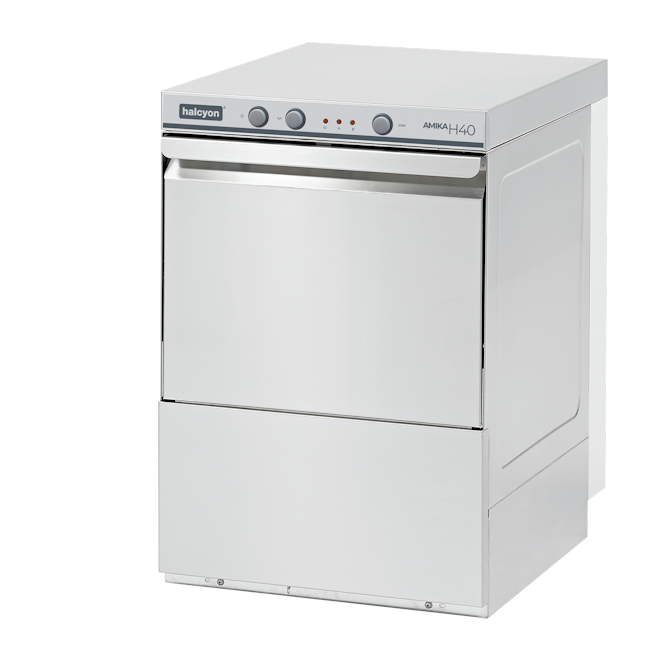

AMH40
AMH40 gravity waste version
390 x 390mm rack
W440 x D540 x H670mm
AMH - Undercounter
AMH40 / AMH40D
Width x Depth x Height mm
440 x 540 x 670mm
Feet Height
10mm-20mm
Basket size
390x390mm
Maximum useable height
300mm
Door Opening
320mm
Cycle times
120 seconds
Water consumption per cycle
2.2 Litres
Wash tank capacity
8 Litres
Phase - Options
Single Phase Only
Power – Single Phase Options
2.8kW(13AMP)
Power – Three Phase
N/A
Detergent pump
Peristaltic-non timed
Rinse aid pump
Peristaltic-non timed
Drain pump
AMH40 - No
AMH40D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Single skin
Door/Hood Construction
Double Skin
Scrap Trays
No
Internal Rinse Booster Pump
N/A
Number Of Cycles
1
Total Maximum Load(as supplied)
2.8kW(13Amp) - Single Phase
AMH40D
AMH40D pumped waste version
390 x 390mm rack
W440 x D540 x H670mm

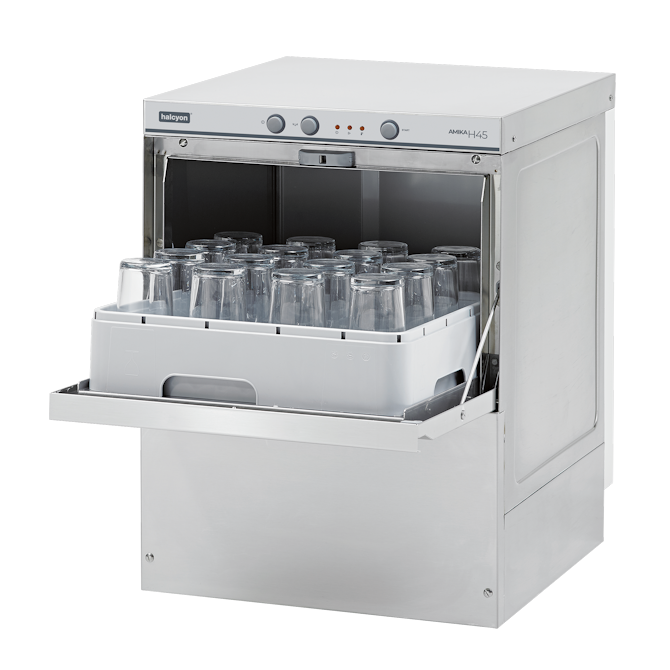

AMH45
AMH45 gravity waste version
450 x 450mm rack
W525 x D560 x H705mm
AMH - Undercounter
AMH45 / AMH45D
Width x Depth x Height mm
525 x 560 x 705mm
Feet Height
10mm-20mm
Basket size
450x450mm
Maximum useable height
280mm
Door Opening
305mm
Cycle times
120 seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
14 Litres
Phase - Options
Single Phase Only
Power – Single Phase Options
2.8kW(13AMP)
Power – Three Phase
N/A
Detergent pump
Peristaltic-non timed
Rinse aid pump
Peristaltic-non timed
Drain pump
AMH45 - No
AMH45D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Single skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
N/A
Number Of Cycles
1
Total Maximum Load(as supplied)
2.8kW(13Amp) - Single Phase
AMH45D
AMH45D pumped waste version
450 x 450mm rack
W525 x D560 x H705mm

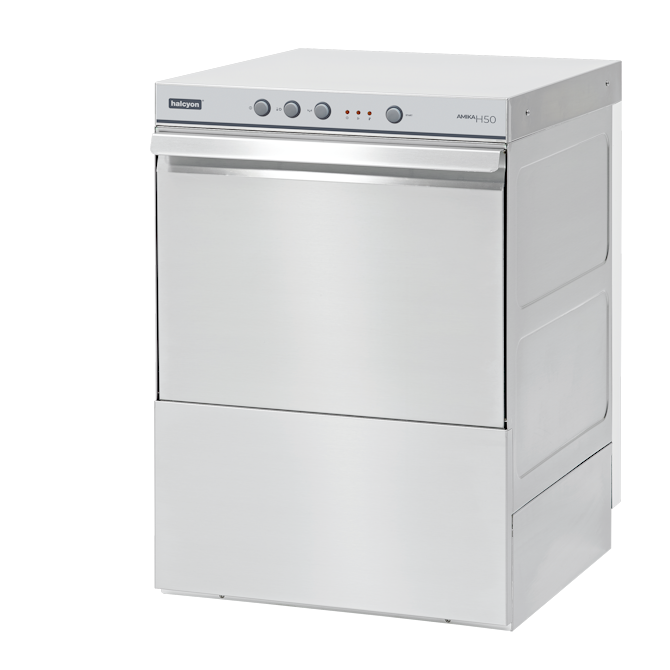

AMH50
AMH50 gravity waste version
500 x 500mm rack
W580 x D610 x H810mm
AMH - Undercounter
AMH50 / AMH50D
Width x Depth x Height mm
580 x 610 x 810mm
Feet Height
10mm-20mm
Basket size
500x500mm
Maximum useable height
340mm
Door Opening
365mm
Cycle times
90/180 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
20 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
AMH50 - No
AMH50D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Double Skin
Scrap Trays
Optional
Internal Rinse Booster Pump
N/A
Number Of Cycles
2
Total Maximum Load(as supplied)
6.5kW(30Amp) - Single Phase
AMH50D
AMH50D pumped waste version
500 x 500mm rack
W580 x D610 x H810mm

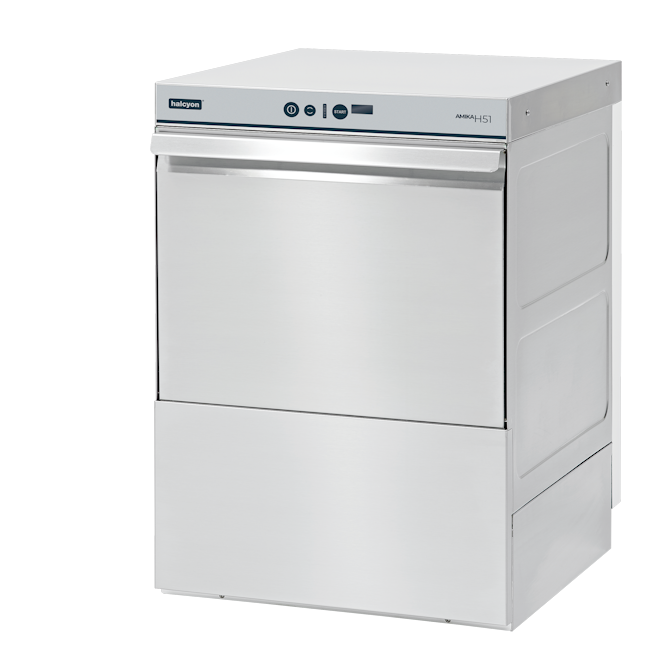

AMH51
AMH51 gravity waste version
500 x 500mm rack
W580 x D610 x H810mm
AMH - Undercounter
AMH51 / AMH51D
Width x Depth x Height mm
580 x 610 x 810mm
Feet Height
10mm-20mm
Basket size
500x500mm
Maximum useable height
340mm
Door Opening
365mm
Cycle times
90/180 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
20 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
AMH51 - No
AMH51D - Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Double Skin
Scrap Trays
Optional
Internal Rinse Booster Pump
N/A
Number Of Cycles
2
Total Maximum Load(as supplied)
6.5kW(30Amp) - Single Phase
AMH51D
AMH51D pumped waste version
500 x 500mm rack
W580 x D610 x H810mm

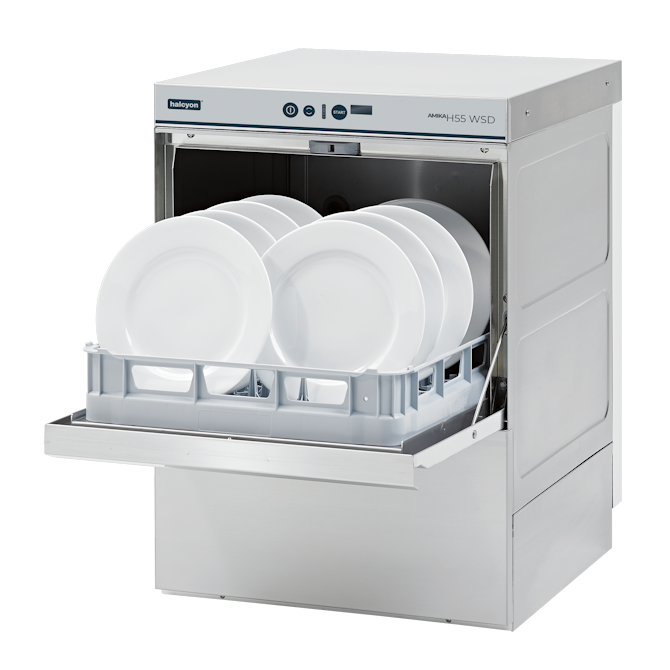

AMH55WS
AMH55WSD with internal softener
500 x 500mm rack
W580 x D610 x H810mm
AMH - Undercounter
AMH55WSD
Width x Depth x Height mm
580 x 610 x 810mm
Feet Height
10mm-20mm
Basket size
500x500mm
Maximum useable height
340mm
Door Opening
365mm
Cycle times
90/180 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
20 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Double Skin
Scrap Trays
Optional
Internal Rinse Booster Pump
N/A
Number Of Cycles
2
Total Maximum Load(as supplied)
6.5kW(30Amp) - Single Phase
