Maidaid C Range Undercounter
Fully electronic machine range, offering
outstanding value for money.

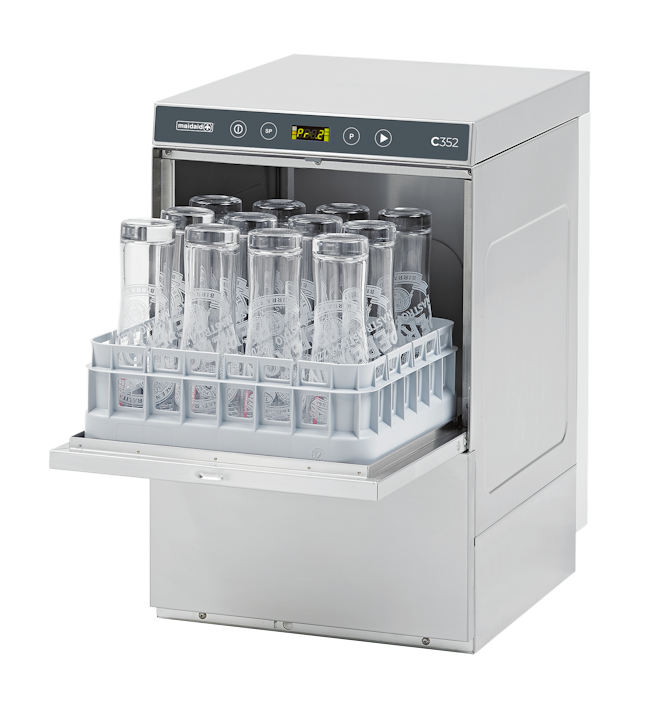

C352
C352 gravity waste version
350 x 350mm rack
W400 x D495 x H590mm
C Range - Undercounter
C352 / C352D
Width x Depth x Height mm
400 x 495 x 590mm
Feet Height
5mm-15mm
Basket size
350x350mm
Maximum useable height
240mm
Door Opening
260mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
1.9 Litres
Wash tank capacity
9 Litres
Phase - Options
Single Phase Only
Power – Single Phase Options
2.8kW(13AMP)
Power – Three Phase
N/A
Detergent pump
Peristaltic-non timed
Rinse aid pump
Peristaltic-non timed
Drain pump
C352 - No
C352D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Partial Double Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
N/A
Number Of Cycles
3
Total Maximum Load(as supplied)
2.8kW(13Amp) - Single Phase
C352D
C352D pumped waste version
350 x 350mm rack
W400 x D495 x H590mm

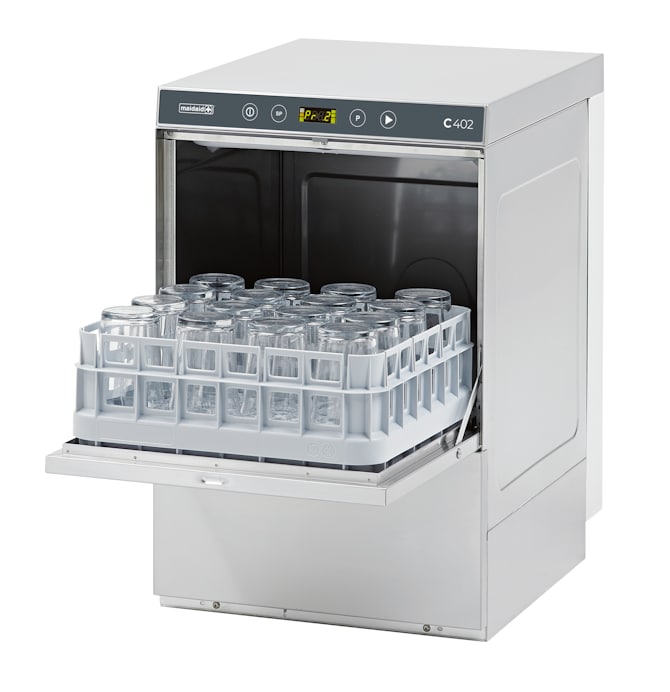

C402
C402 gravity waste version
390 x 390mm rack
W440 x D540 x H670mm
C Range - Undercounter
C402 / C402D
Width x Depth x Height mm
440 x 540 x 670mm
Feet Height
5mm-15mm
Basket size
390x390mm
Maximum useable height
300mm
Door Opening
320mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
1.9 Litres
Wash tank capacity
10 Litres
Phase - Options
Single Phase Only
Power – Single Phase Options
2.8kW(13Amp)
Power – Three Phase
N/A
Detergent pump
Peristaltic-non timed
Rinse aid pump
Peristaltic-non timed
Drain pump
C402 - No
C402D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Partial Double Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
N/A
Number Of Cycles
3
Total Maximum Load(as supplied)
2.8kW(13Amp) Single Phase
C402D
C402D pumped waste version
390 x 390mm rack
W440 x D540 x H670mm

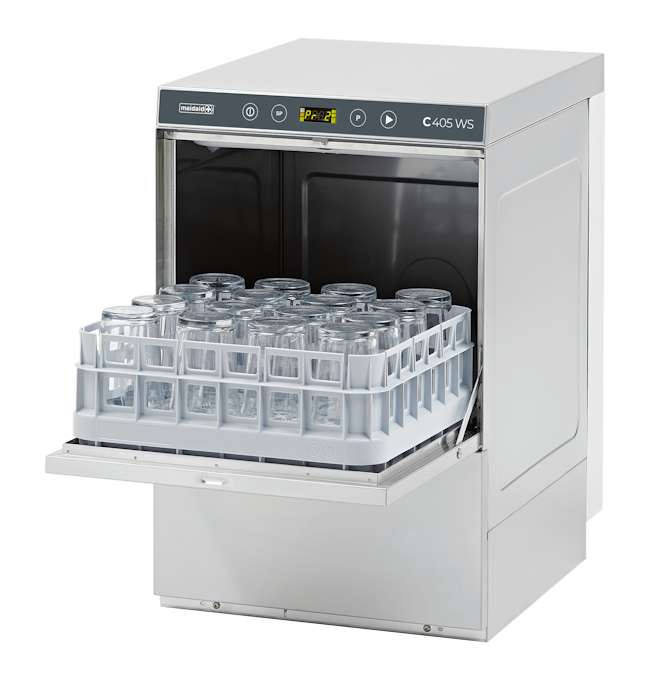

C405WS
C405WS with manual internal softener
390 x 390mm rack
W440 x D540 x H670mm
C Range - Undercounter
C405WS
Width x Depth x Height mm
440 x 540 x 670mm
Feet Height
5mm-15mm
Basket size
390x390mm
Maximum useable height
300mm
Door Opening
320mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
1.9 Litres
Wash tank capacity
10 Litres
Phase - Options
Single Phase Only
Power – Single Phase Options
2.8kW(13Amp)
Power – Three Phase
N/A
Detergent pump
Peristaltic-non timed
Rinse aid pump
Peristaltic-non timed
Drain pump
Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Partial Double Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
N/A
Number Of Cycles
3
Total Maximum Load(as supplied)
2.8kW(13Amp) Single Phase

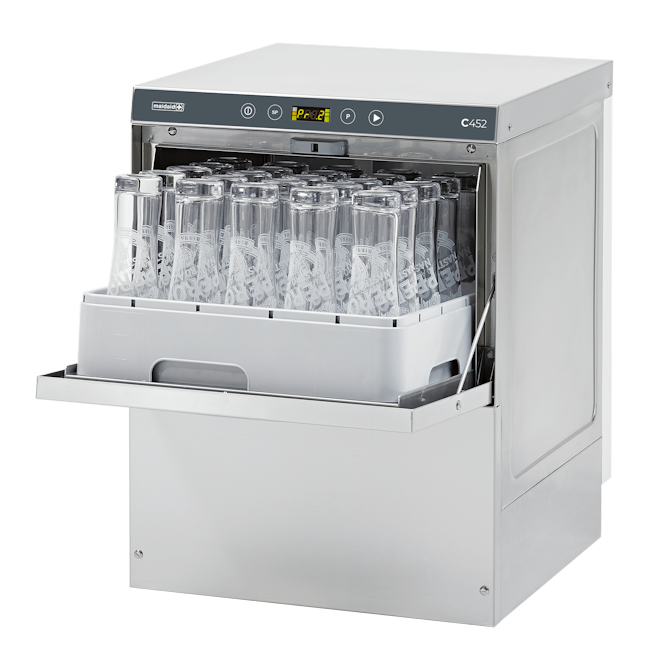

C452
C452 gravity waste version
450 x 450mm rack
W525 x D560 x H705mm
C Range - Undercounter
C452 / C452D
Width x Depth x Height mm
525 x 560 x 705mm
Feet Height
5mm-15mm
Basket size
450x450mm
Maximum useable height
280mm
Door Opening
310mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
15 Litres
Phase - Options
Single Phase Only
Power – Single Phase Options
2.8kW(13AMP)
Power – Three Phase
N/A
Detergent pump
Peristaltic-non timed
Rinse aid pump
Peristaltic-non timed
Drain pump
C452 - No
C452D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Single Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
N/A
Number Of Cycles
3
Total Maximum Load(as supplied)
2.8kW(13Amp) - Single Phase
C452D
C452D pumped waste version
450 x 450mm rack
W525 x D560 x H705mm

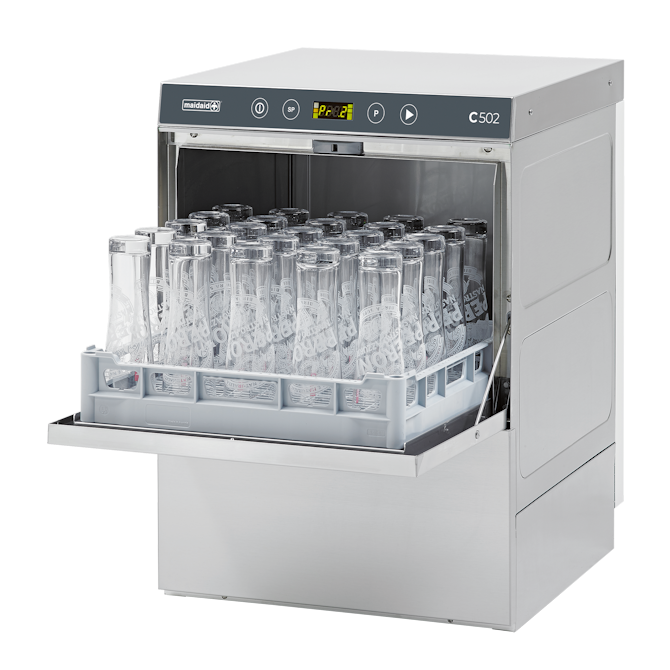

C502
C502 gravity waste version
500 x 500mm rack
W580 x D610 x H810mm
C Range - Undercounter
C502 / C502D
Width x Depth x Height mm
580 x 610 x 810mm
Feet Height
10mm-20mm
Basket size
500x500mm
Maximum useable height
340mm
Door Opening
365mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
20 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
C502 - No
C502D - Yes
Breaktank
No
Water supply pressure
2 to 4 Bar
Body Construction
Partial Double Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
N/A
Number Of Cycles
3
Total Maximum Load(as supplied)
6.5kW(30Amp) - Single Phase
C502D
C502D pumped waste version
500 x 500mm rack
W580 x D610 x H810mm
C512
C512 gravity waste version
500 x 500mm rack
W580 x D610 x H810mm
C Range - Undercounter
C512 / C512D
Width x Depth x Height mm
580x610x810mm
Feet Height
10mm-20mm
Basket size
500x500mm
Maximum useable height
340mm
Door Opening
365mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
20 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase
6.5kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
C512 - No
C512D - Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Partial Double Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
6.5kW(30Amp) - Single Phase
C512D
C512D pumped waste version
500 x 500mm rack
W580 x D610 x H810mm

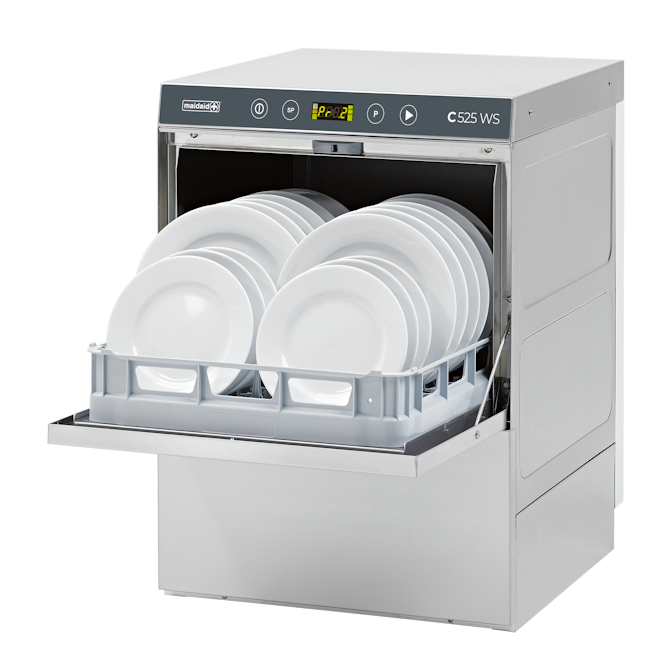

C525WS
C525WS with internal softener
500 x 500mm rack
W580 x D610 x H810mm

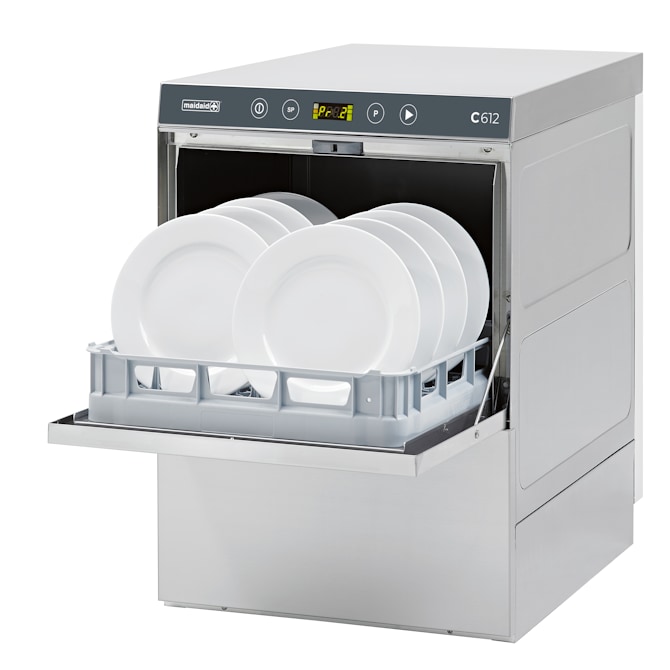

C612
C612 Tray/Dishwasher
500 x 600mm rack
W580 x D700 x H840mm
C Range - Undercounter
C612
Width x Depth x Height mm
580x700x840mm
Feet Height
10mm-20mm
Basket size
500x600mm
Maximum useable height
375mm
Door Opening
405mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
23 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.8kW(13Amp),4.7kW(20Amp),
6.7kW(30Amp)
Power – Three Phase
6.7kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Partial Double Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
6.7kW(30Amp) - Single Phase

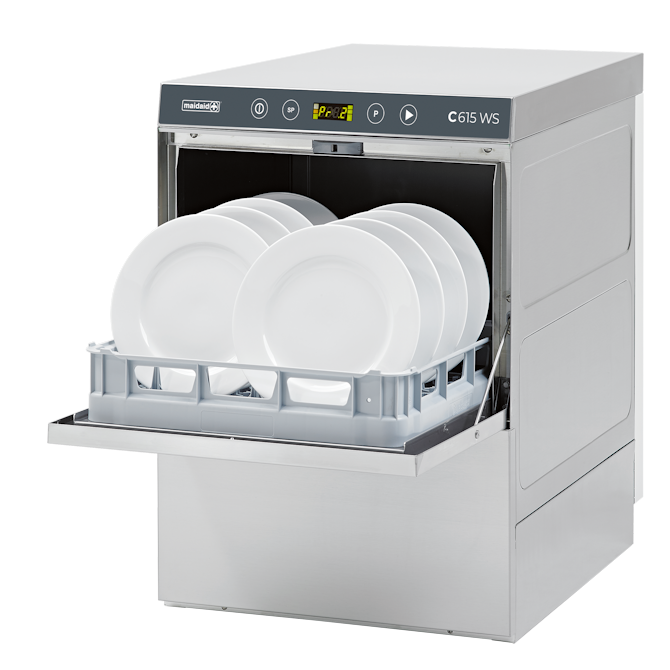

C615WS
C615WS Tray/Dishwasher
500 x 600mm rack
W580 x D700 x H840mm
C Range - Undercounter
C615WS
Width x Depth x Height mm
580x700x840mm
Feet Height
10mm-20mm
Basket size
500x600mm
Maximum useable height
375mm
Door Opening
405mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
23 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.8kW(13Amp),4.7kW(20Amp),
6.7kW(30Amp)
Power – Three Phase
6.7kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Partial Double Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
6.7kW(30Amp) - Single Phase

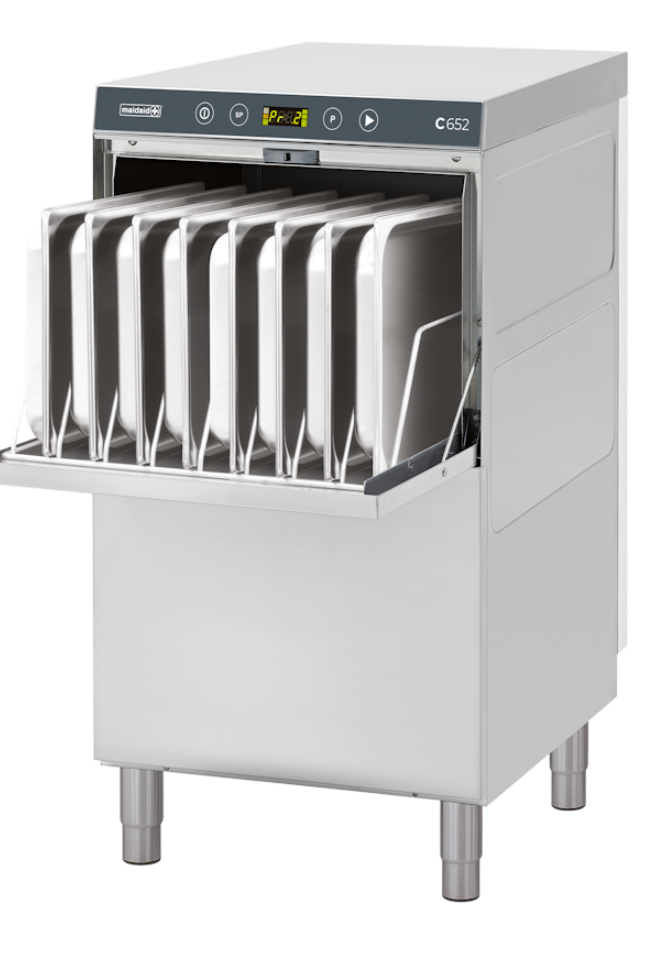

C652
C652 Tray/Dishwasher
500 x 600mm rack
W580 x D700 x H1100mm
C Range - Undercounter
C652
Width x Depth x Height mm
580x700x1100mm
Feet Height
135mm-195mm
Basket size
500x600mm
Maximum useable height
375mm
Door Opening
405mm
Cycle times
90/120/150 Seconds
Water consumption per cycle
2.5 Litres
Wash tank capacity
23 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
2.8kW(13Amp),4.7kW(20Amp),
6.7kW(30Amp)
Power – Three Phase
6.7kW(16Amp)
Detergent pump
Peristaltic - non timed
Rinse aid pump
Peristaltic - non timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Partial Double Skin
Door/Hood Construction
Double Skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
6.7kW(30Amp) - Single Phase
