Maidaid Evolution Pass Through
Double skined minimising both acoustic output and reduced heat loss.

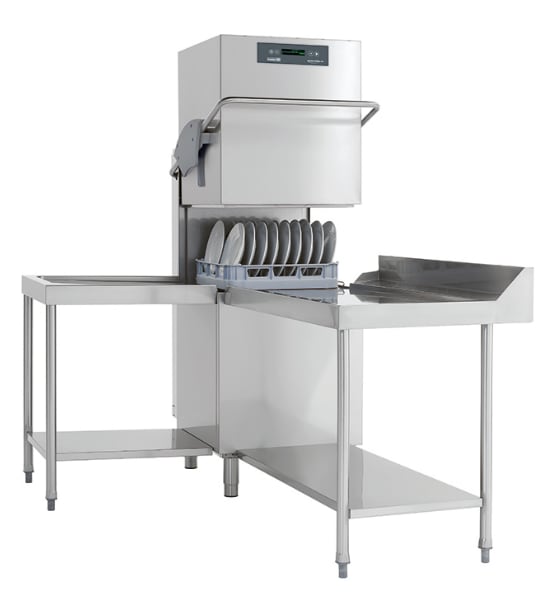

EVO2121
EVO2121 pumped waste
500 x 500mm rack
W640 x D755 x H1535mm
Evo Range Hood
EVO2121
Width x Depth x Height mm
640 x 755 x 1535mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 500mm
Maximum useable height
440mm
Door Opening
460mm
Cycle times
70/90/120 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
22 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
4.7kW(20Amp),6.7kW(30Amp)
Power – Three Phase
6.7kW(16Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Double skin
Door/Hood Construction
Double skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
6.7kW(30A) – Single Phase
EVO2135WS
EVO2035WS with internal softener
500 x 500mm rack
W640 x D755 x H1535mm
Evo Range Hood
EVO2135WS
Width x Depth x Height mm
640 x 755 x 1535mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 500mm
Maximum useable height
440mm
Door Opening
460mm
Cycle times
70/90/120 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
22 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
4.7kW(20Amp),6.7kW(30Amp)
Power – Three Phase
6.7kW(16Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Double skin
Door/Hood Construction
Double skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
6.7kW(30A) – Single Phase

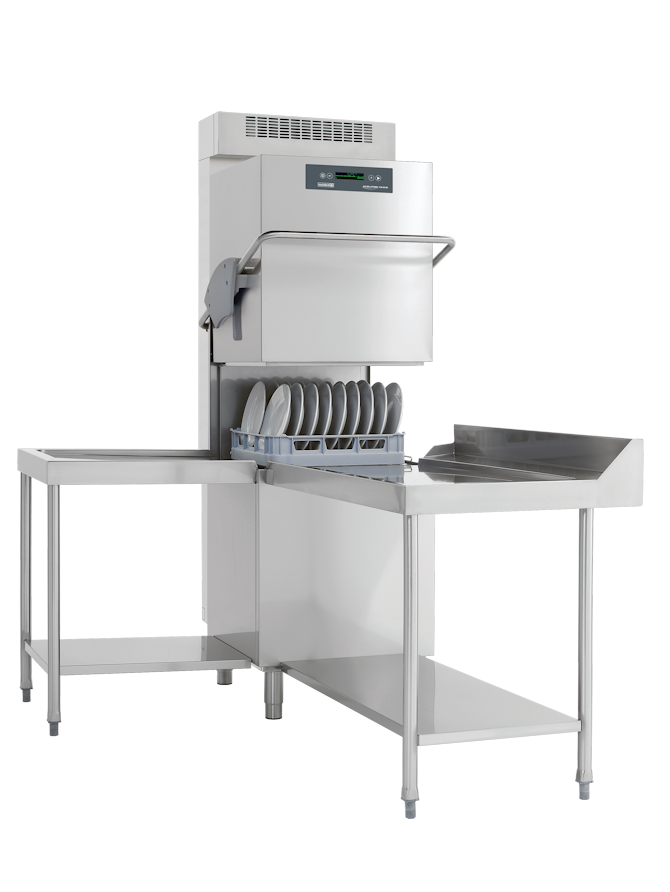

EVO2135WSHR
EVO2135WSHR with heat recovery
500 x 500mm rack
W640 x D755 x H2235mm
Evo Range Hood
EVO2135WSHR
Width x Depth x Height mm
640 x 755 x 2235mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 500mm
Maximum useable height
440mm
Door Opening
460mm
Cycle times
70/90/120 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
22 Litres
Phase - Options
Single/3-Phase
Power – Single Phase Options
4.7kW(20Amp),6.7kW(30Amp)
Power – Three Phase
6.7kW(16Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Double skin
Door/Hood Construction
Double skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
6.7kW(30A) – Single Phase

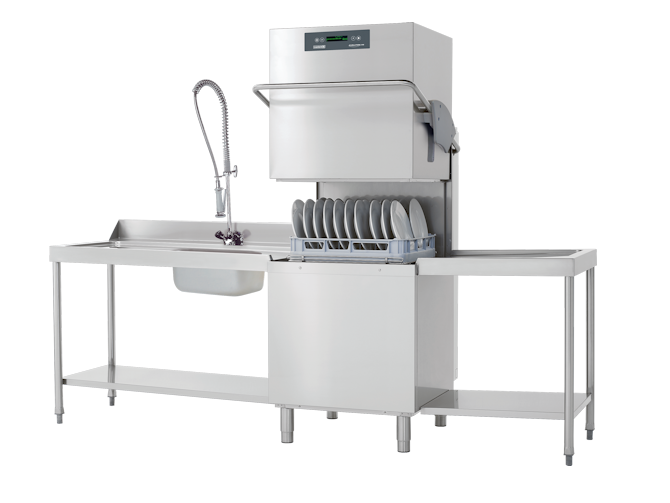

EVO2160
EVO2160 3 phase machine
500 x 600mm rack
W700 x D755 x H1535mm
Evo Range Hood
EVO2160
Width x Depth x Height mm
700 x 755 x 1535mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 600mm
Maximum useable height
440mm
Door Opening
460mm
Cycle times
70/90/120 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
30 Litres
Phase - Options
3-Phase only
Power – Single Phase Options
N/A
Power – Three Phase
11kW(25Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Double skin
Door/Hood Construction
Double skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
11kW(25A) – 3 Phase

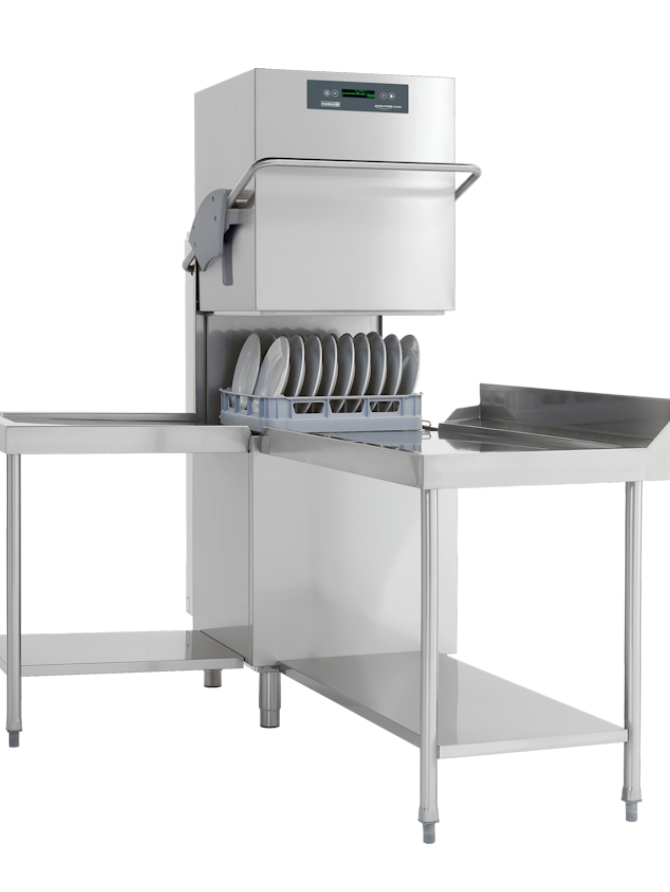

EVO3135WS
EVO2035WS 3 phase machine
Internal softener as standard
W640 x D755 x H1535mm
Evo Range Hood
EVO3135WS
Width x Depth x Height mm
640 x 755 x 1535mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 500mm
Maximum useable height
440mm
Door Opening
460mm
Cycle times
70/90/120 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
22 Litres
Phase - Options
3-Phase only
Power – Single Phase Options
N/A
Power – Three Phase
10.2kW(20Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Double skin
Door/Hood Construction
Double skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
10.2kW(20A) – 3 Phase

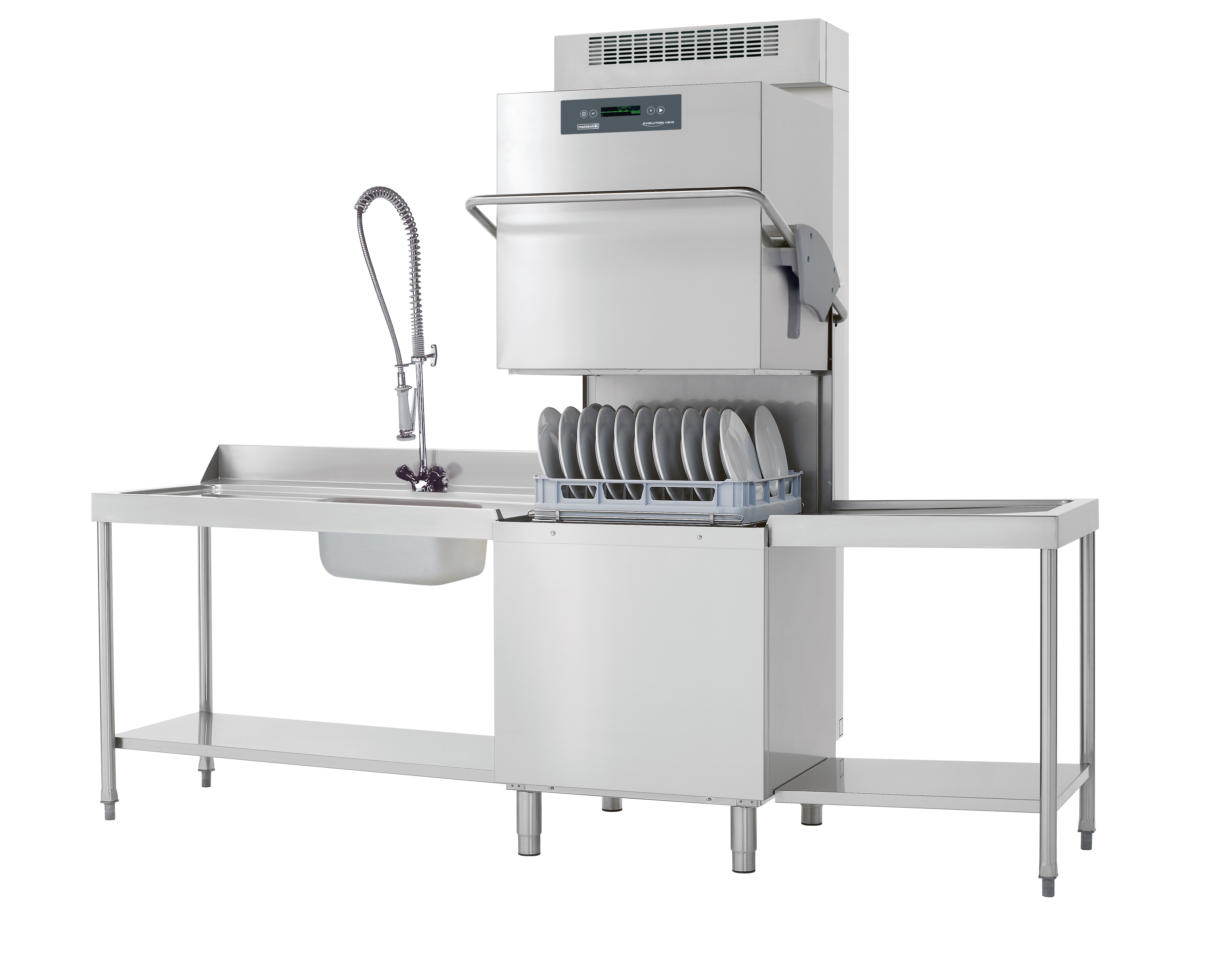

EVO2160HR *NEW FOR 2024*
EVO2160HR 3 phase machine
500 x 600mm rack
W700 x D755 x H2235mm
Evo Range Hood
EVO2160HR
Width x Depth x Height mm
700 x 755 x 2235mm (inc feet)
Feet Height
165mm to 225mm
Basket size
500 x 600mm
Maximum useable height
440mm
Door Opening
460mm
Cycle times
70/90/120 Seconds
Water consumption per cycle
2.0 Litres
Wash tank capacity
22 Litres
Phase - Options
3-Phase
Power – Single Phase Options
N/A
Power – Three Phase
11kW(25Amp)
Detergent pump
Peristaltic - Non Timed
Rinse aid pump
Peristaltic - Non Timed
Drain pump
Yes
Breaktank
Yes
Water supply pressure
2 to 4 Bar
Body Construction
Double skin
Door/Hood Construction
Double skin
Scrap Trays
Yes
Internal Rinse Booster Pump
Yes
Number Of Cycles
3
Total Maximum Load(as supplied)
11kW(25A) – 3-Phase
