Maidaid Modular

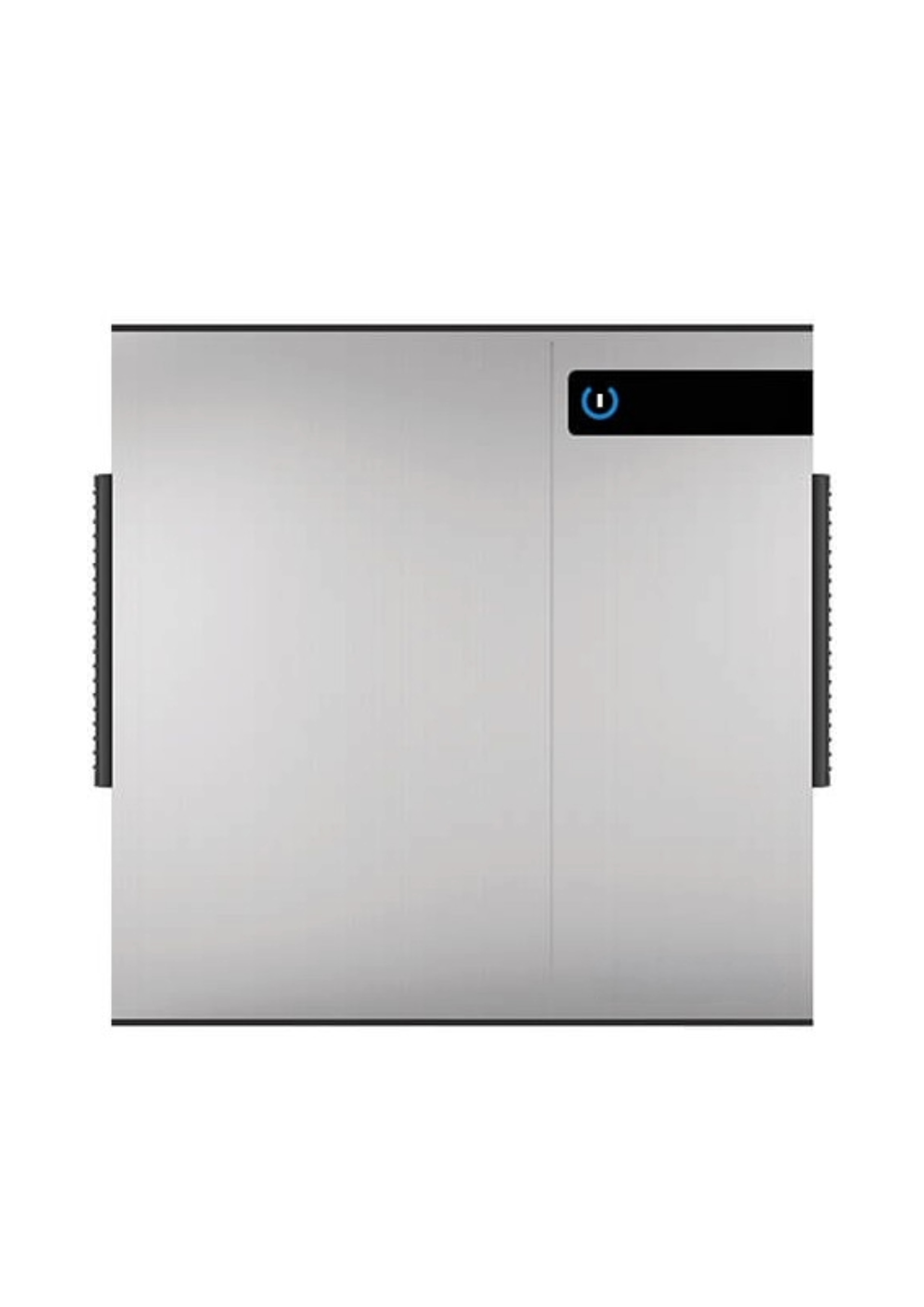

SLIM M145
17g cube
Production (24 hrs) 130kg*
Separate bin required
Maidaid
Slim M145
Width x Depth x Height mm
560 x 620 x 575mm
Production in kg over 24hours
130kg
(21°C air temp.)
Storage capacity
Bin dependant
Cooling system
Air
Ice type
Cube
Cube size
17g
Refrigerant
R290
Power voltage/phase/Hz
220-240 / 1 / 50
Power watts / Amps
1131W (13A)
Water consumption L/hr
7.7
Water supply pressure
1 to 5 bar
Ambient temperature between
10ºC / 40ºC
Water supply temperature between
5ºC / 35ºC
Bin type
MSB105, MSB155, MSB255
Weight nett / gross Kg
53 / 65kg

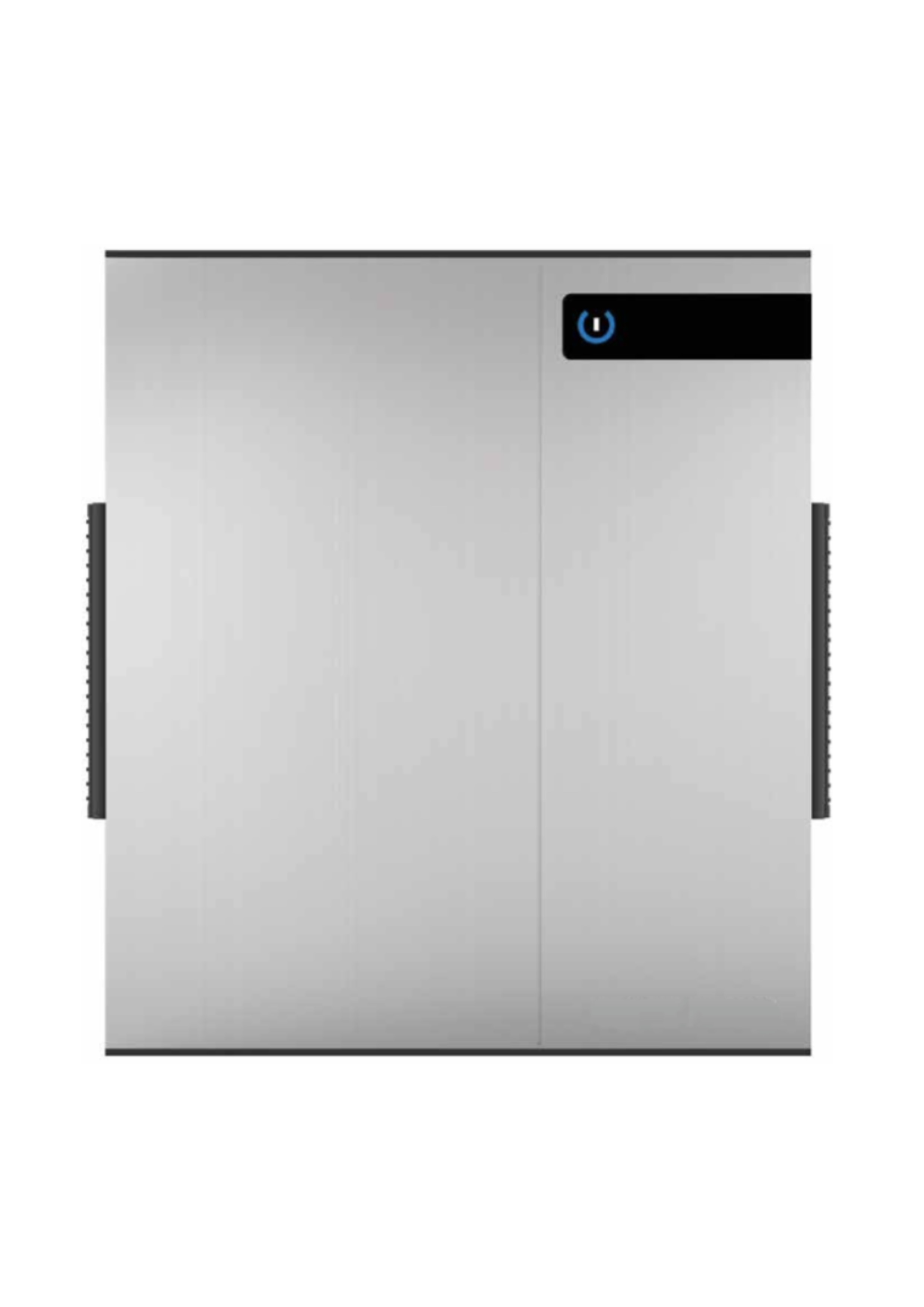

SLIM M195
17g cube
Production (24 hrs) 189kg*
Separate bin required
Maidaid
Slim M195
Width x Depth x Height mm
560 x 620 x 660mm
Production in kg over 24hours#
189kg
(21°C air temp.)
Storage capacity
Bin dependant
Cooling system
Air
Ice type
Cube
Cube size
17g
Refrigerant
R290
Power voltage/phase/Hz
220-240 / 1 / 50
Power watts / Amps
1661W (13A)
Water consumption L/Hr
11.9
Water supply pressure
1 to 5 bar
Ambient temperature between
10ºC / 40ºC
Water supply temperature between
5ºC / 35ºC
Bin type
MSB105, MSB155, MSB255
Weight nett / gross Kg
68 / 80kg

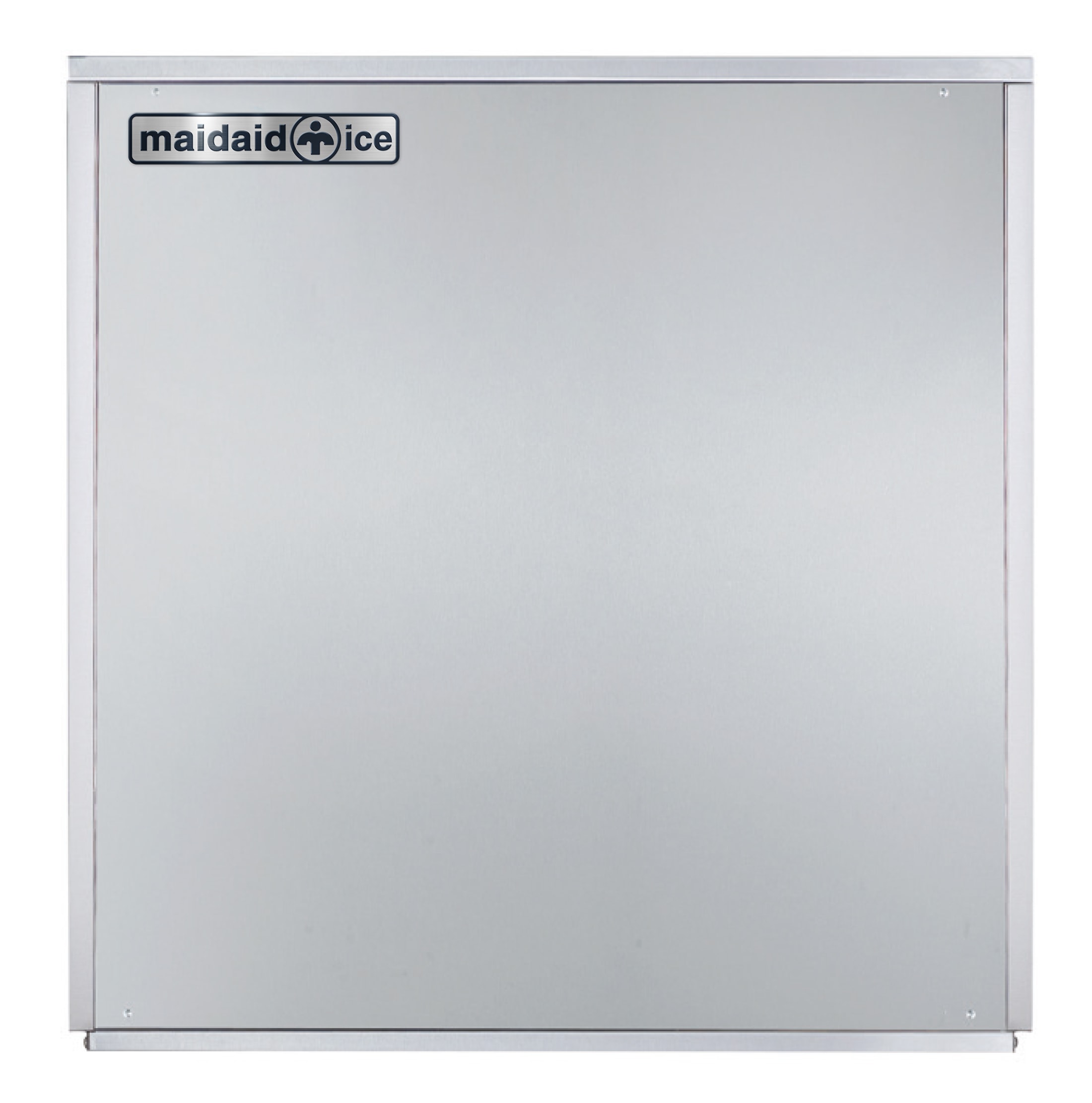

CUBE 150
CUBE 150
Production (24 hours) 150kg
Separate bin required
Halcyon
ICE 130
Width x Depth x Height mm(Inc.Feet)
775 x 625 x 805mm
Production in kg over 24hours#
150kg
Storage capacity
N/A
Cooling system
Air
Ice type
Cube
Cube size
22g
Refrigerant
R290
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
1200W (13A)
Water consumption L/Kg
22
Water supply pressure
1 - 6 Bar
Ambient temperature
10ºC / 43ºC
Water supply temperature
5ºC / 38ºC
Bin type
Incorporated
Weight nett / gross Kg
93kg

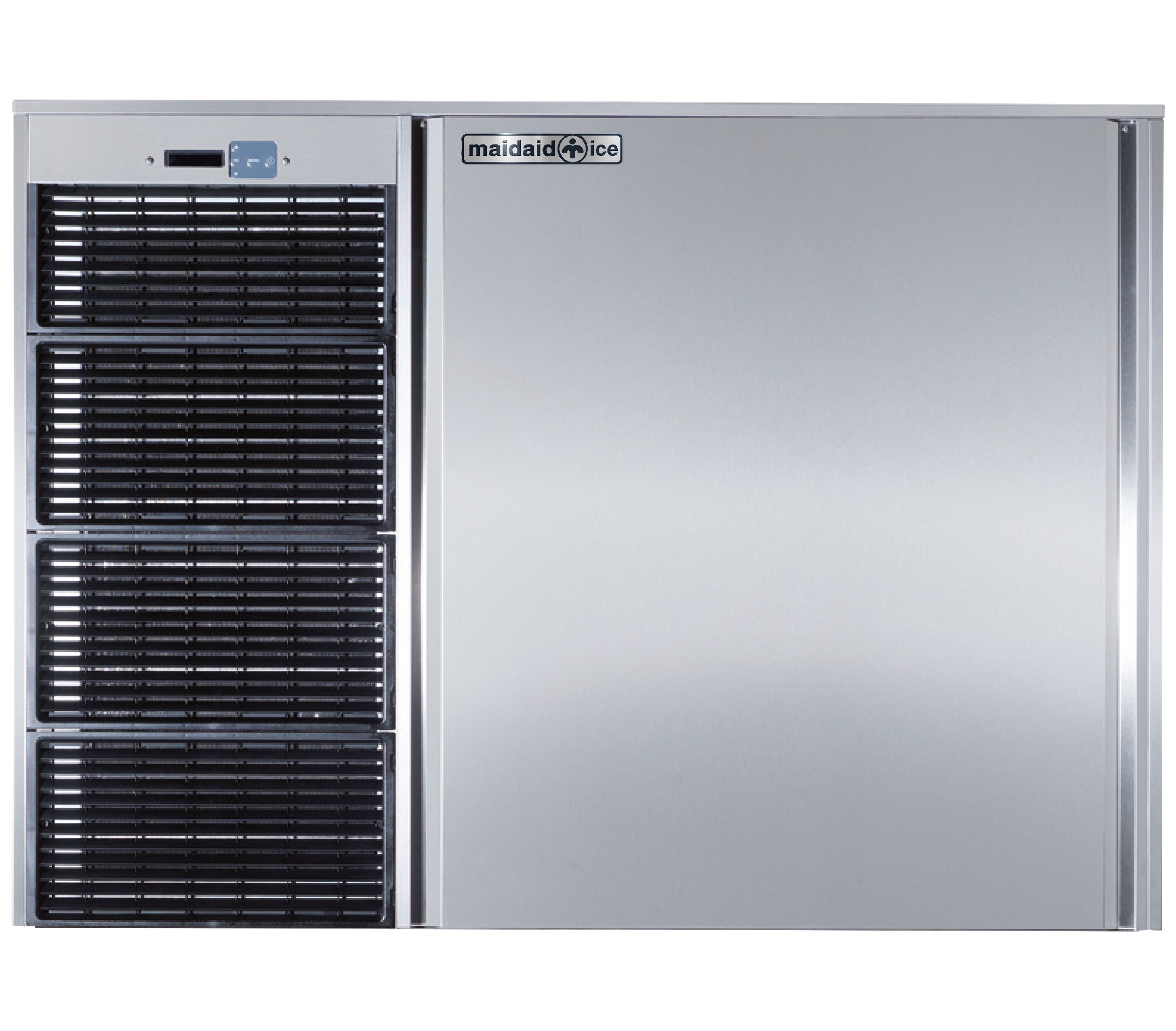

CUBE 350
CUBE 350
Production (24 hours) 340kg
Separate bin required
Maidaid ICE
CUBE 350
Width x Depth x Height mm(Inc.Feet)
1321 x 638 x 993mm
Production in kg over 24hours#
345kg
Storage capacity
N/A
Cooling system
Air
Ice type
Cube
Cube size
22g
Refrigerant
R452A
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
2700W (25A)
Water consumption L/Kg
24.4
Water supply pressure
1 - 6 Bar
Ambient temperature
10ºC / 43ºC
Water supply temperature
5ºC / 38ºC
Bin type
N/A
Weight nett / gross Kg
165kg
FD215
ICE FD215
Production (24 hours) 207kg
Separate bin required
Maidaid
FD215
Width x Depth x Height mm
762 x 620 x 500
Production in kg over 24hours
207kg
Storage capacity
N/A
Cooling system
Air
Ice type
Cube
Cube size
12g
Refrigerant
R290
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
2292W (13A)
Water consumption L/Kg
11.1
Water supply pressure
1 - 6 Bar
Ambient temperature
10ºC / 43ºC
Water supply temperature
5ºC / 38ºC
Bin type
Separate required
Weight nett / gross Kg
85/93kg

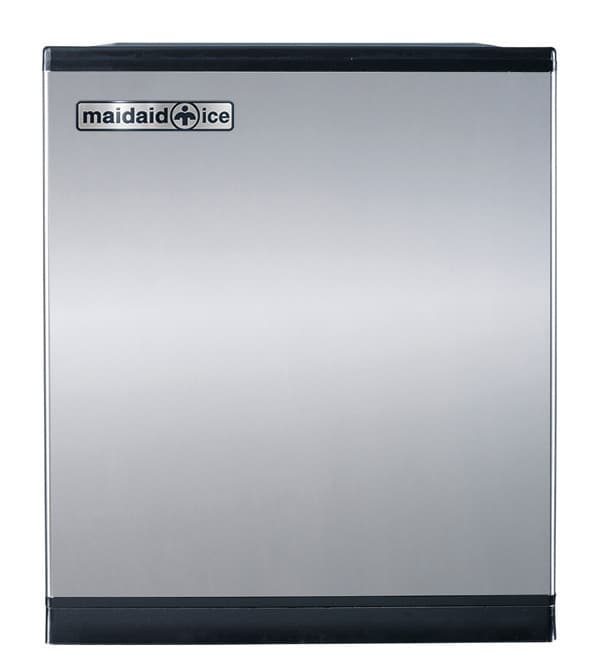

CUBE 300 SLIM Full-Dice
CUBE 350
Production (24 hours) 305kg
Separate bin required
Maidaid ICE
CUBE 300 SLIM
Width x Depth x Height mm(Inc.Feet)
559 x 621 x 659mm
Production in kg over 24hours#
305kg
Storage capacity
N/A
Cooling system
Air
Ice type
Cube
Cube size
12g
Refrigerant
R290
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
1220W (13A)
Water consumption L/Kg
16.6
Water supply pressure
1 - 6 Bar
Ambient temperature
10ºC / 43ºC
Water supply temperature
5ºC / 38ºC
Bin type
N/A
Weight nett / gross Kg
70kg

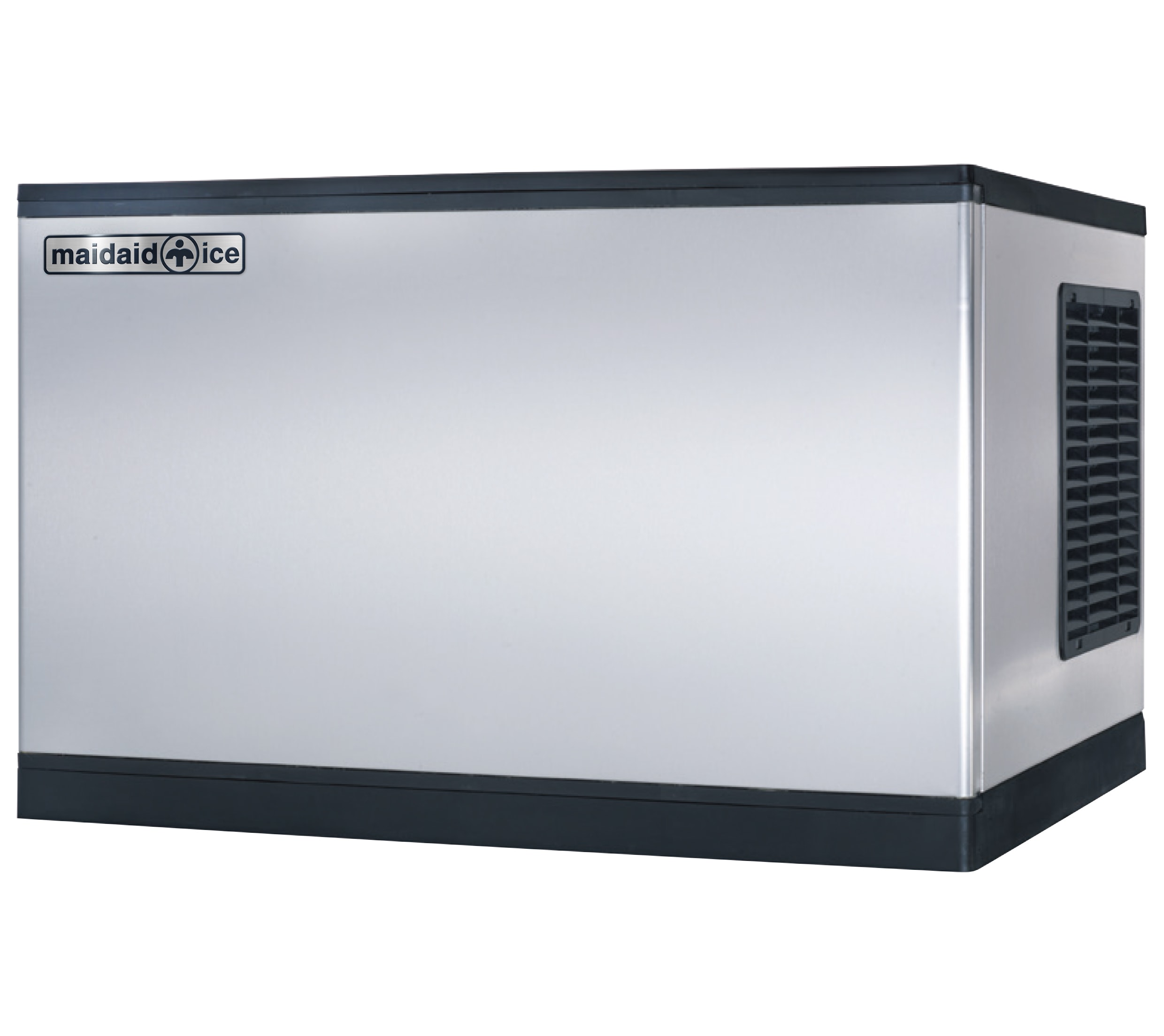

HALF DICE 220
HALF DICE 220
Production (24 hours) 207kg
Separate bin required
Maidaid ICE
HALF DICE 220
Width x Depth x Height mm(Inc.Feet)
762 x 620 x 500mm
Production in kg over 24hours#
207kg
Storage capacity
N/A
Cooling system
Air
Ice type
Half dice
Cube size
6g
Refrigerant
R290
Power voltage/phase/Hz
20 / 1 / 50
Power watts / Amps
795W (13A)
Water consumption L/Kg
12
Water supply pressure
1 - 6 Bar
Ambient temperature
10ºC / 43ºC
Water supply temperature
5ºC / 38ºC
Bin type
Incorporated
Weight nett / gross Kg
85kg

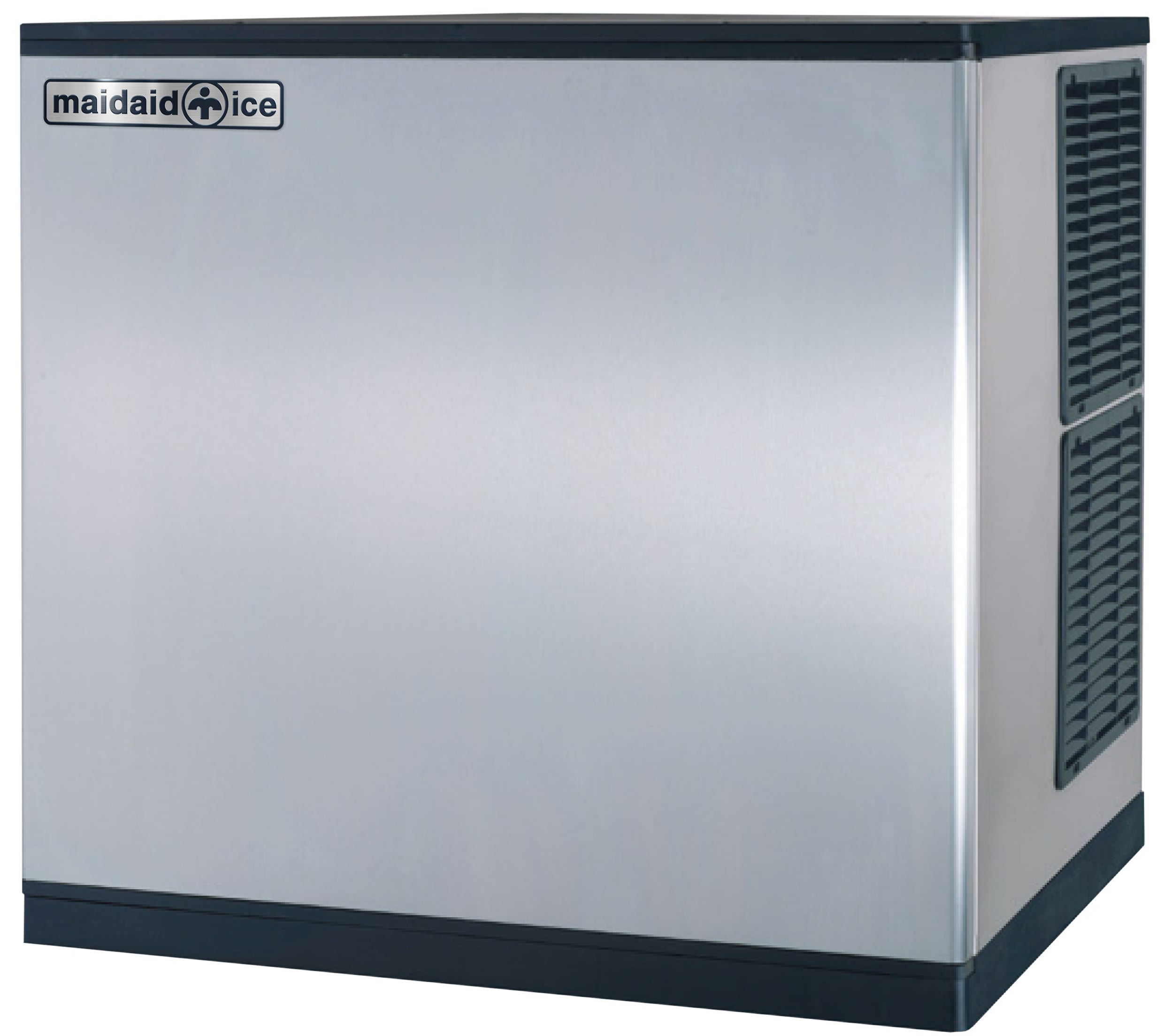

HALF DICE 410
HALF DICE 410
Production (24 hours) 405kg
Separate bin required
Maidaid ICE
HALFDICE 410
Width x Depth x Height mm(Inc.Feet)
760 x 620 x 760mm
Production in kg over 24hours#
405kg
Storage capacity
N/A
Cooling system
Air
Ice type
Half dice
Cube size
6g
Refrigerant
R290
Power voltage/phase/Hz
400 / 3 / 50
Power watts / Amps
1810W (13A)
Water consumption L/Kg
17
Water supply pressure
1 - 6 Bar
Ambient temperature
10ºC / 43ºC
Water supply temperature
5ºC / 38ºC
Bin type
N/A
Weight nett / gross Kg
105kg

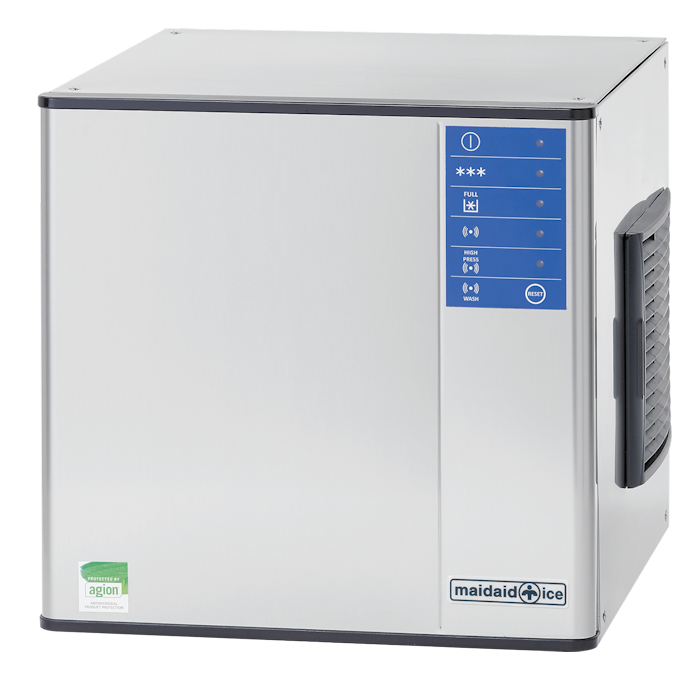

SLIM132
560 x 620 x 575mm
Production (24 hours) 143kg
Separate bin required
Maidaid
Slim132
Width x Depth x Height mm
560 x 620 x 575mm
Production in kg over 24hours#
143kg
Storage capacity
Bin dependant
Cooling system
Air or Water
Ice type
Cube
Cube size
10g
Refrigerant
R452A
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
1640W (13A)
Water consumption L/hr
A, 6 / W, 61.3
Water supply pressure
1 to 5 bar
Ambient temperature between
10ºC / 40ºC
Water supply temperature between
5ºC / 35ºC
Bin type
MSB105, MSB155, MSB255
Weight nett / gross Kg
53 / 65kg

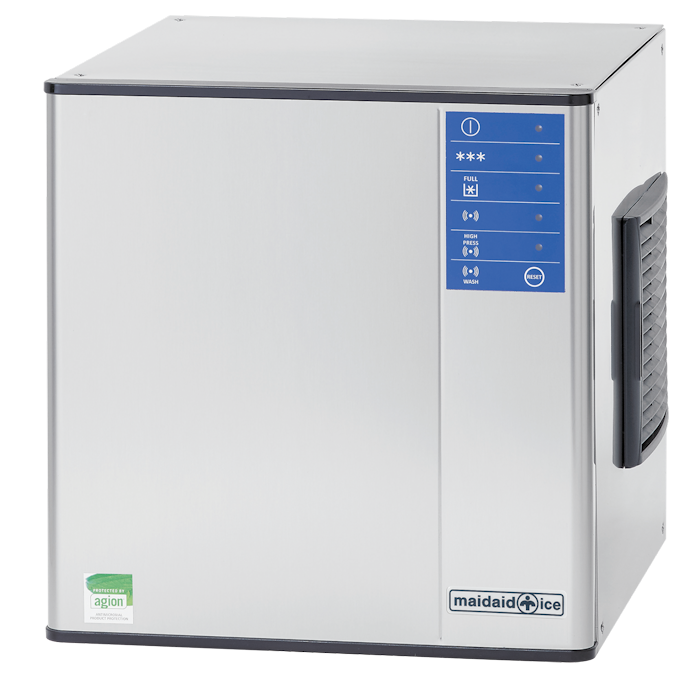

SLIM192
560 x 620 x 660mm
Production (24 hours) 212kg
Separate bin required
Maidaid
Slim192
Width x Depth x Height mm
560 x 620 x 660mm
Production in kg over 24hours#
212kg
Storage capacity
Bin dependant
Cooling system
Air or Water
Ice type
Cube
Cube size
10g
Refrigerant
R452A
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
2350W (16A)
Water consumption L/Hr
A, 8.5 / W, 126
Water supply pressure
1 to 5 bar
Ambient temperature between
10ºC / 40ºC
Water supply temperature between
5ºC / 35ºC
Bin type
MSB105, MSB155, MSB255
Weight nett / gross Kg
68 / 80kg

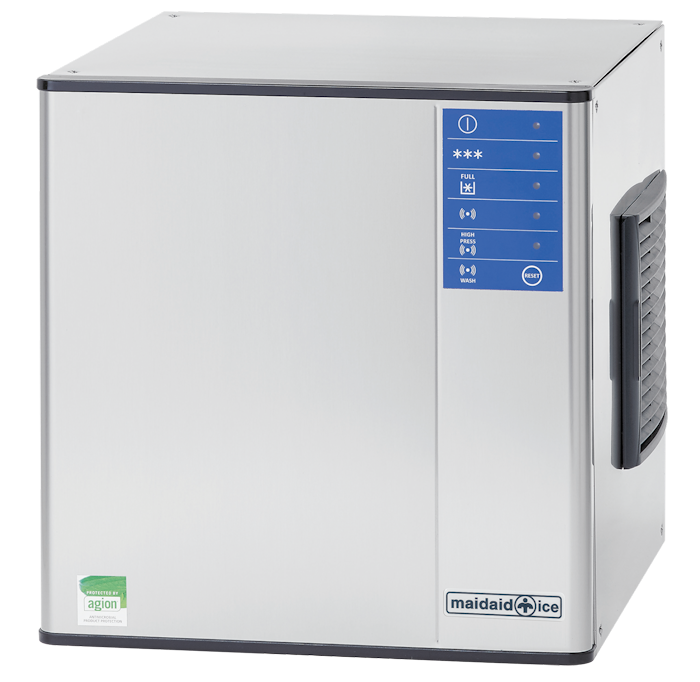

SLIM195E
560 x 620 x 660mm
Production (24 hours) 210kg
Separate bin required
Maidaid
Slim195E
Width x Depth x Height mm
560 x 620 x 660mm
Production in kg over 24hours#
210kg
Storage capacity
Bin dependant
Cooling system
Air
Ice type
Cube
Cube size
10g
Refrigerant
R290
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
2900W (16A)
Water consumption L/Hr
A, 9.2
Water supply pressure
1 to 5 bar
Ambient temperature between
10ºC / 40ºC
Water supply temperature between
5ºC / 35ºC
Bin type
MSB105, MSB155, MSB255
Weight nett / gross Kg
68 / 80kg

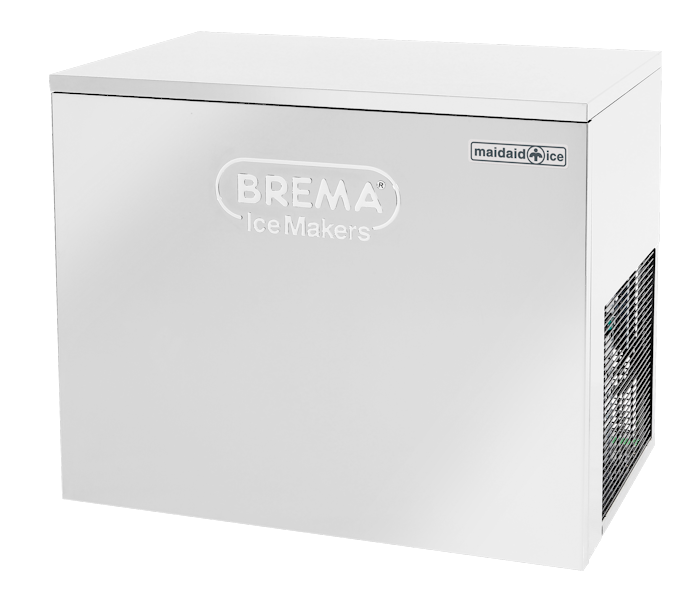

MC150 HC
862 x 555 x 720mm
Production (24 hours) 155kg
Separate bin required
Maidaid
MC150 HC
Width x Depth x Height mm
862 x 555 x 720mm
Production in kg over 24hours#
152kg
Storage capacity
Bin dependant
Cooling system
Air or Water
Ice type
Cube
Cube size
18g / 13g / 33g
Refrigerant
R290
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
1260W (16A)
Water consumption L/Kg
A 2.6 / W 13
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
M240PE, MT200, MT350
Weight nett / gross Kg
118 / 128kg

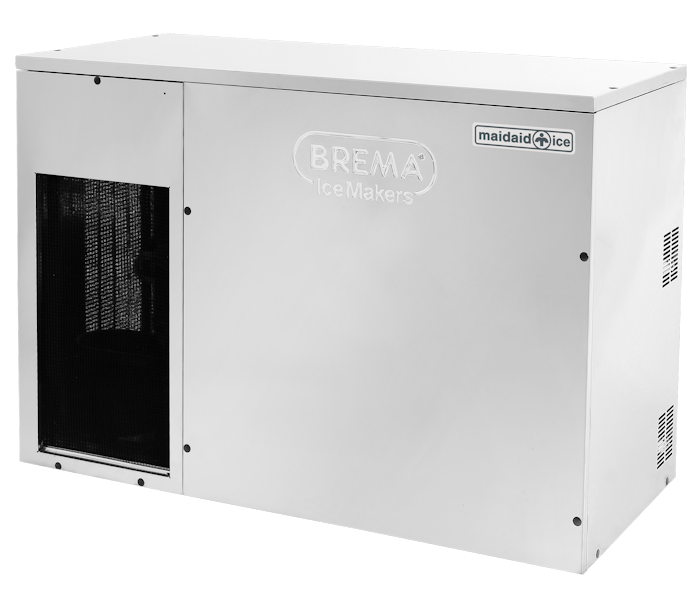

MC300
1250 x 580 x 848mm
Production (24 hours) 300kg
Separate bin required
Maidaid
MC300
Width x Depth x Height mm
1250 x 580 x 848mm
Production in kg over 24hours#
300kg
Storage capacity
Bin dependent
Cooling system
Air or Water
Ice type
Cube
Cube size
18g / 13g / 33g
Refrigerant
R452A
Power voltage/phase/Hz
230 / 1 / 50
Power watts / Amps
2600W (32A)
Water consumption L/Kg
A, 2.6 / W, 14.3
Water supply pressure
1 to 6 bar
Ambient temperature between
10ºC / 43ºC
Water supply temperature between
3ºC / 32ºC
Bin type
MT350
Weight nett / gross Kg
152 / 178kg
