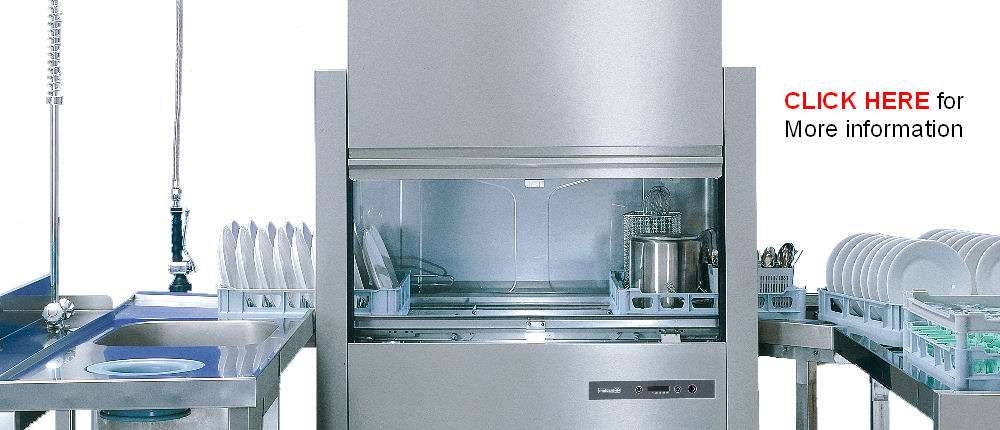

Maidaid Minirack

Market leading rack machines with proven design

Minirack Base model Range		R3010	R3020	R3030
Width x Depth x Height	mm	1150 x 770 x 1615	1150 x 770 x 1615	1970 x 770 x 1615
Height adjustment	mm	+/-30	+/-30	+/-30
Height with door open	mm	2088 +/-30	2088 +/-30	2088 +/-30
Rack size	mm	500	500	500
Racks per hour	No.	60-120	60-120-160	110-200-270
Dishes per hour - max	No.	2160	2880	4860
Inlet clearance	mm	450	450	450
Minimum consumption per rack	litres	1.3	1.2	1.2
Wash tank capacity	litres	70	70	70
Pre-wash tank capacity	litres	N/A	N/A	70
Rinse boiler capacity	litres	17	17	17
Phase		3 phase + N + E	3 phase + N + E	3 phase + N + E
Wash pump(s)	kW	1.5	1.5	2 x 1.5
Total loading - hot water supply 50°C	kW	22	23.2	30.2
Total loading - cold water supply 15°C	kW	28.5	34.7	45.7
