Compare tech specs

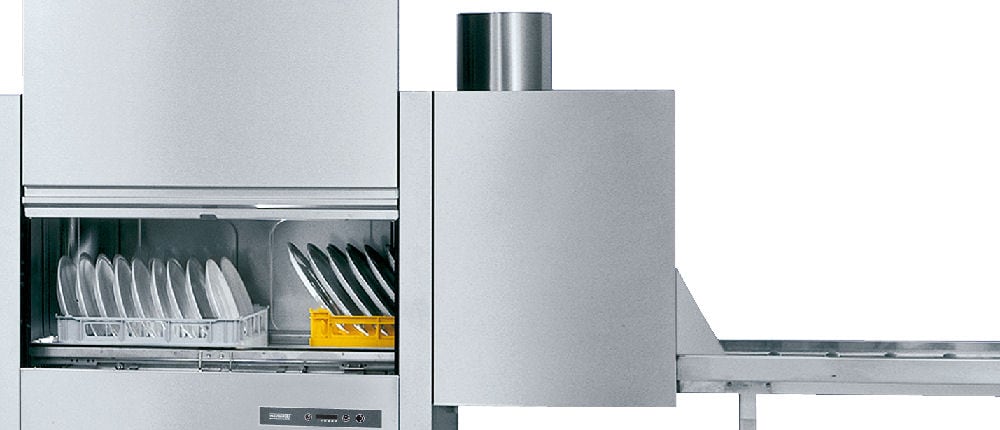

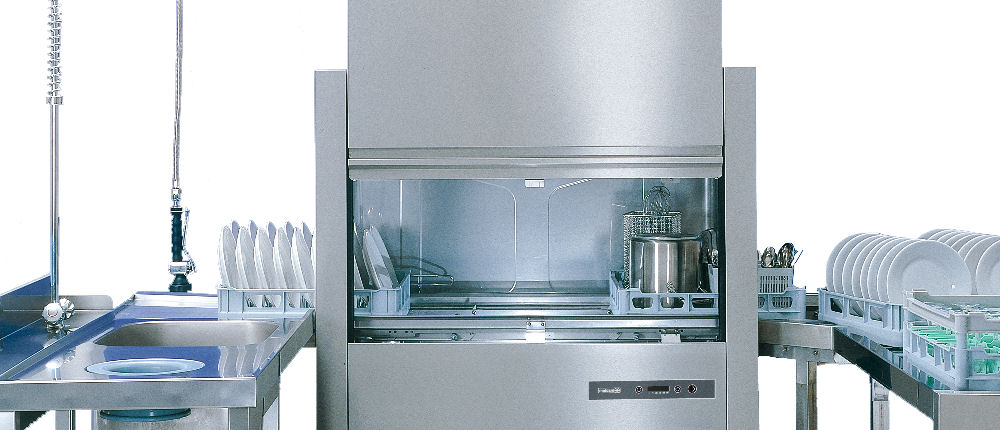

Mini Rack Machine

Features

  • Model capacity from 60 to 270 racks per hour
  • Designed to minimise running costs

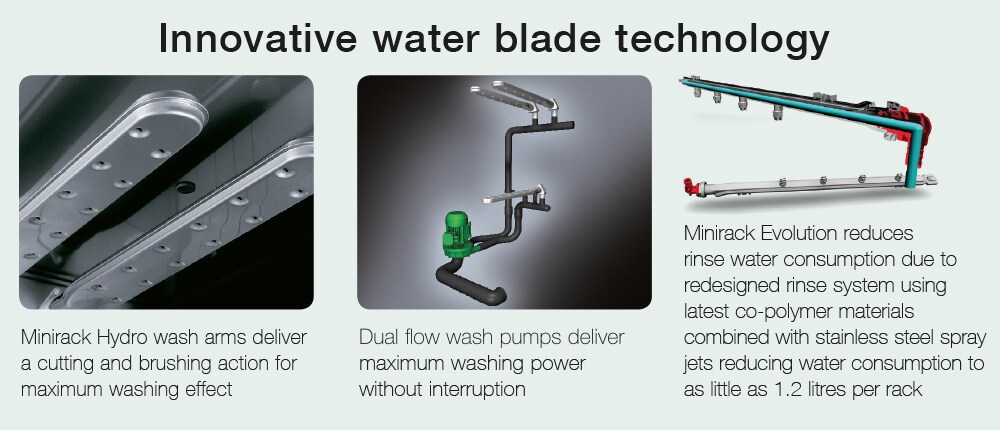

  • As little as 1.2 litres of water used per rack
  • All models use standard 500mm racks
  • Improved entrance height of 450mm
  • Multiple arrangement options including driers, heat recovery & steam condenser

Call for Price

  • Key Points
  • Tech Specs
  • Options
  • Downloads

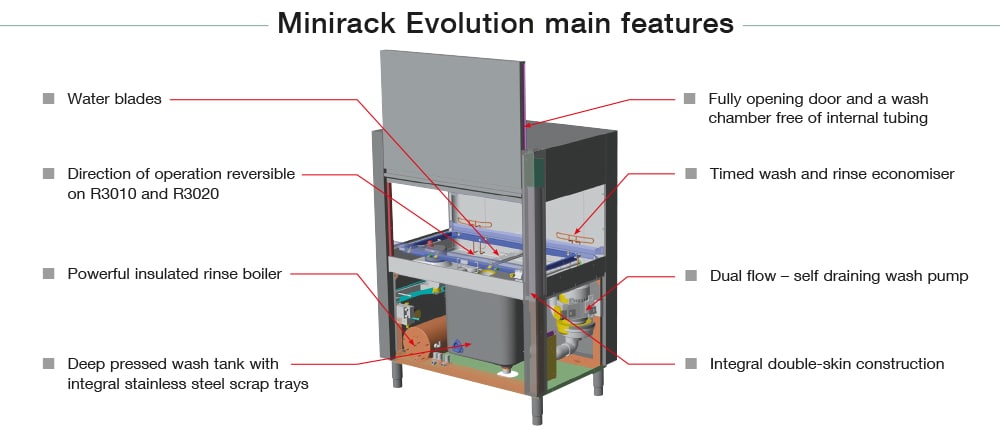

  • Minirack R3010 - Compact two speed machine washing up to 120 racks per hour and ideal for
          medium sized sites.
  • Minirack R3020 - Compact four speed single tank machine with breaktank washes up to 160            racks per hour for sites requiring a faster throughput. Included dedicated glass washing cycle.
  • Minirack R3030 - Compact three speed dual tank machine washes up to 270 racks per hour.             Deal with higher level of soiled products due to it's prewash module.
  • Options to enhance your machine - Heat recovery, Inline dryer module, Corner dryer module,             Corner pre-wash, Steam condenser, Exhaust outlet fan and an extensive range of tabling.
Minirack Base model Range R3010 R3020 R3030
Width x Depth x Height mm 1150 x 770 x 1615 1150 x 770 x 1615 1970 x 770 x 1615
Height adjustment mm +/-30 +/-30 +/-30
Height with door open mm 2088 +/-30 2088 +/-30 2088 +/-30
Rack size mm 500 500 500
Racks per hour No. 60-120 60-120-160 110-200-270
Dishes per hour - max No. 2160 2880 4860
Inlet clearance mm 450 450 450
Minimum consumption per rack litres 1.3 1.2 1.2
Wash tank capacity litres 70 70 70
Pre-wash tank capacity litres N/A N/A 70
Rinse boiler capacity litres 17 17 17
Phase 3 phase + N + E 3 phase + N + E 3 phase + N + E
Wash pump(s) kW 1.5 1.5 2 x 1.5
Total loading - hot water supply 50°C kW 22 23.2 30.2
Total loading - cold water supply 15°C kW 28.534.7 45.7

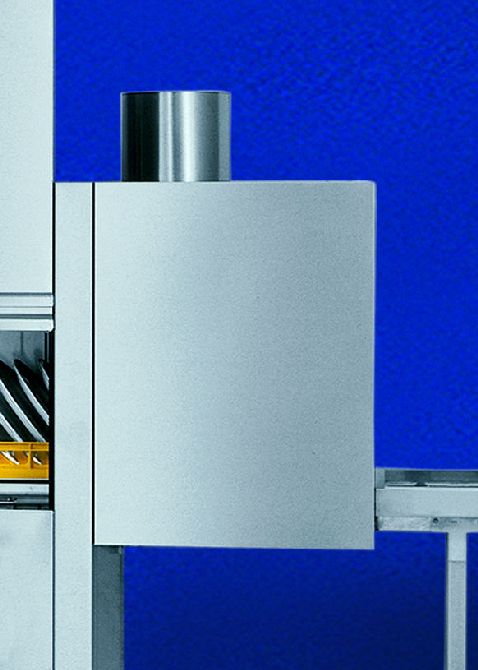

915028

  • Inline dryer module 6kW

915028C

  • Corner dryer module 6kW

R3100

  • Corner pre-wash module

R3

  • Exhaust Outlet

915030

  • Heat recovery

(LH) 75480 / (RH) 75481

  • Mechanised rack feed corner unit
  • Links to machines rack drive
  • 600 x 650mm

75482

  • Inlet or outlet table
  • Comes with undershelf
  • 700mm Long

75483

  • Inlet or outlet table
  • Comes with undershelf
  • 1100mm Long

(L/H) 75451 / (R/H) 75456

  • Inlet table left or right hand
  • Comes with drain & short splashback
  • 1200mm long

(L/H) 75452 / R/H) 75457

  • Inlet table left or right hand
  • Comes with drain & short splashback
  • 1500mm long

(L/H) 75453 / (R/H) 75458

  • Inlet table left or right hand
  • Comes with drain & short splashback
  • 1800mm long

(L/H) 75446 / (R/H) 75441

  • Inlet table left or right with scrap bin hole
  • Comes with drain and short splashback
  • 1200mm long

(L/H) 75447 / 75442 (R/H)

  • Inlet table left or right with scrap bin hole
  • Comes with drain and short splashback
  • 1500mm long

75448B

  • Inlet table left or right hand
  • Comes with drain & short splashback
  • 1800mm long

717066

  • Roller exit table
  • Comes with drain & legs
  • 1100mm Long

717067

  • Roller exit table
  • Comes with drain & legs
  • 1600mm Long

717086

  • Roller exit table
  • Comes with drain & legs
  • 2100mm Long

717068

  • 90 degree curved exit roller table
  • Comes with drain & legs
  • 1100 x 1100mm
