Compare tech specs

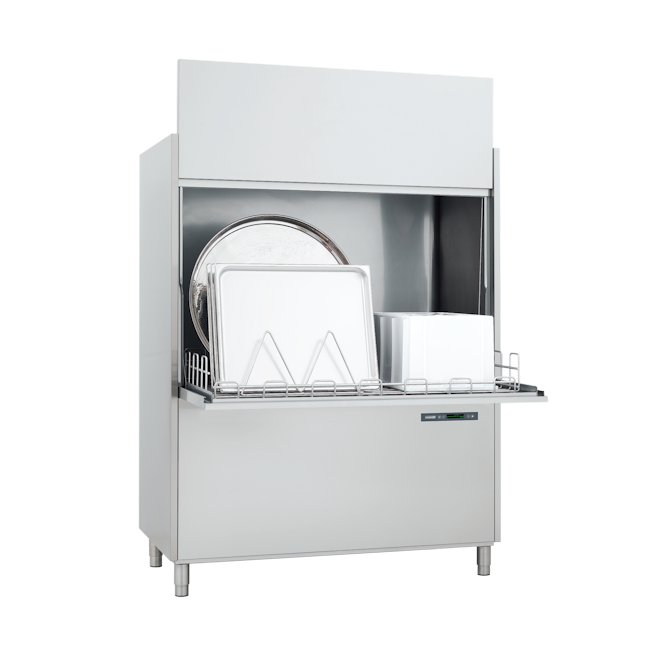

UT132e

  • UT132e Rack size 1320 x 700mm
  • Door clearance height 850mm
  • Dimensions W1465 x D872 x H1959
  • 8 cycles (4 standard / 4 SP) from 2 to 12 minutes
  • Power 16kW (3 phase only)
  • 32 amps required
  • For full spec download the new UT range brochure
£23,200.00

Features

  • 1 year warranty
  • NEW heat recovery module available on complete range
  • NEW polychromatic LCD display
  • NEW two dual flow wash pumps
  • NEW extensive range of accessories available
  • Key Points
  • Tech Specs
  • Related Accessories
  • Downloads

  • 1 year warranty
  • NEW factory fitted heat recovery module available on all models
  • NEW Polychromatic LCD display and user interface giving uncomplicated machine status updates
  • NEW four button control fascia with special programs (SP) option
  • NEW two dual flow wash pumps - reduces power consumption whilst retaining wash efficiency. Energy savings of up to 20% can be achieved
  • NEW advanced design, 'smart' soft touch electronic user interface
  • NEW Hi-level configuration information available for both installations and service technicians
  • NEW extensive range of accessories available including a range of trays, gastronorm holders and cutlery rack inserts
  • Enhanced self-diagnostics
  • Minimised footprint
  • Precise detergent & rinse aid pumps as standard
  • Vertically mounted wash pump - self draining
  • Pressed wash tank carefully designed for easy cleaning
  • Internal pressure boosting pump for consistent pressure on rinse cycle
  • Double wall split door for easy loading
  • Stainless steel sliding rack on easy glide skids
  • The sturdy, double-walled AISI 304 stainless steel construction, in addition to guaranteeing long-term reliability, reduces heat loss and noise

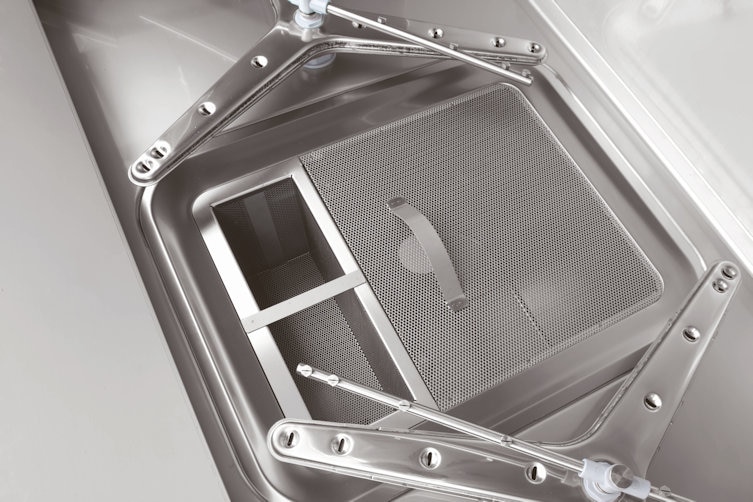

  • Fully stainless scrap filter trays, baskets & wash and rinse arm design

Pot Washers UT132e
Width x Depth x Height  1465 x 872 x 1959 (+/-30mm adjustable feet)
Feet Height 135mm to 195mm
Basket size 1320 x 700mm
Door clearance height 850mm
Cycle times 2 to 12 Mins
Water consumption per cycle (Litres) 6 to 8
Wash tank capacity (Litres) 131
Phase - Options 3 Phase only
Power – Single Phase Options N/A
Power – Three Phase 16Kw (32A) – Three Phase
Detergent pump Yes
Rinse aid pump Yes
Drain pump N/A
Breaktank Yes
Water supply pressure 1 to 4 bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 8 (4 standard / 4 SP)
Total Maximum Load(as supplied) 16Kw (32A) – Three Phase

MH101490B

  • Stainless Steel sliding rack
  • 1320 x 700mm

MH103454B

  • Stainless Steel insert
  • For 8 trays

MH101491B

  • Stainless Steel insert
  • For 5 trays

MH103453B

  • Stainless Steel container with cover

MH106114B

  • Stainless Steel insert
  • For 2 GN1/1

MH101492B

  • Stainless Steel insert
  • For piping bags & funnels

MH103455B

  • Stainless Steel insert
  • For cutlery & utensils
