Maidaid Evolution Undercounter

         Energy conscious range with full range of

options for site optimisation, engineer diagnostics.

        Designed for the most demanding environments

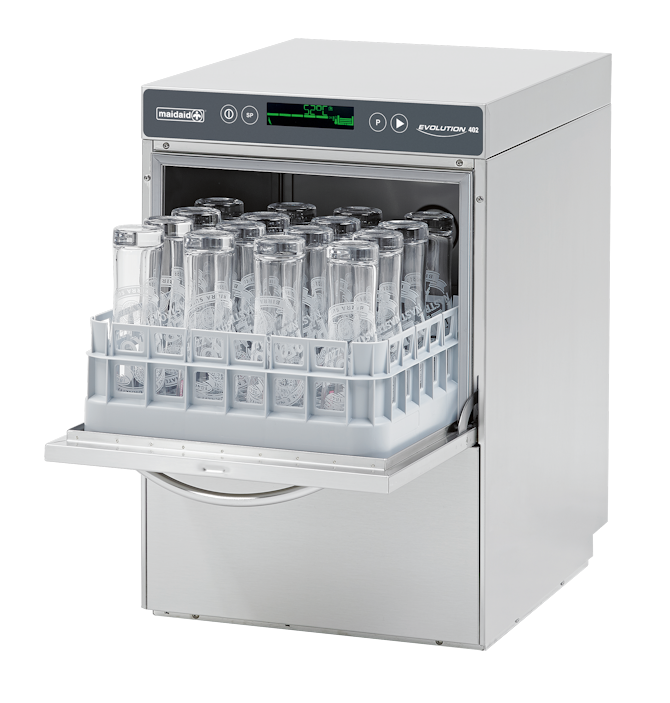

EVO402 *New from 2019*

  • Evo 402 Rack size 400 x 400mm
  • Maximum useable height 295mm
  • Power 2.8kW / 13 Amps required
Evo - Undercounter Evo402
Width x Depth x Height mm 465 x 560 x 690mm
Feet Height 5mm-15mm
Basket size 400x400
Maximum useable height 295mm
Door Opening 320mm
Cycle times 90/120/150 Seconds
Water consumption per cycle 1.1 Litres
Wash tank capacity 8 Litres
Phase - Options Single Phase Only
Power – Single Phase Options 2.8kW(13Amp)
Power – Three Phase N/A
Detergent pump Peristaltic-Non Timed
Rinse aid pump Peristaltic-Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 5
Total Maximum Load(as supplied) 2.8kW(13Amp) Single Phase

EVO425WS *NEW from 2019*

  • Evo 405WS Rack size 400 x 400mm
  • Maximum useable height 270mm
  • Power 2.8kW / 13 Amps required
Evo - Undercounter Evo425WS
Width x Depth x Height mm 465 x 560 x 690mm
Feet Height 5mm-15mm
Basket size 400x400
Maximum useable height 295mm
Door Opening 320mm
Cycle times 90/120/150 Seconds
Water consumption per cycle 1.1 Litres
Wash tank capacity 8 Litres
Phase - Options Single Phase Only
Power – Single Phase Options 2.8kW(13Amp)
Power – Three Phase N/A
Detergent pump Peristaltic-non timed
Rinse aid pump Peristaltic-non timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 5
Total Maximum Load(as supplied) 2.8kW(13Amp) Single Phase

EVO501

  • Evo 501 Rack size 500 x 500mm
  • Maximum useable height 250mm
  • Power 2.6/4.5/6.5kW / 13/20/30 Amps
Evo Evo501
Width x Depth x Height mm 600 x 605 x 715mm
Feet Height 10mm-20mm
Basket size 500x500mm
Maximum useable height 250mm
Door Opening 290mm
Cycle times 72/110/150 Seconds
Water consumption per cycle 1.9 Litres
Wash tank capacity 15 Litres
Phase - Options Single/3-Phase
Power – Single Phase Options 2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase 6.5kW(16Amp)
Detergent pump Peristaltic-Non Timed
Rinse aid pump Peristaltic-Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 6
Total Maximum Load(as supplied) 6.5kW(30Amp) – Single Phase

EVO505WS

  • Evo 505WS Rack size 500 x 500mm
  • Maximum useable height 250mm
  • Power 2.6/4.5/6.5kW / 13/20/30 Amps
Evo - Undercounter Evo505WS
Width x Depth x Height mm 600 x 605 x 715mm
Feet Height 10mm-20mm
Basket size 500x500mm
Maximum useable height 250mm
Door Opening 290mm
Cycle times 72/110/150 Seconds
Water consumption per cycle 1.9 Litres
Wash tank capacity 15 Litres
Phase - Options Single/3-Phase
Power – Single Phase Options 2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase 6.5kW(16Amp)
Detergent pump Peristaltic-Non Timed
Rinse aid pump Peristaltic-Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 6
Total Maximum Load(as supplied) 6.5kW(30Amp) – Single Phase
