Modular, Granular & Flat

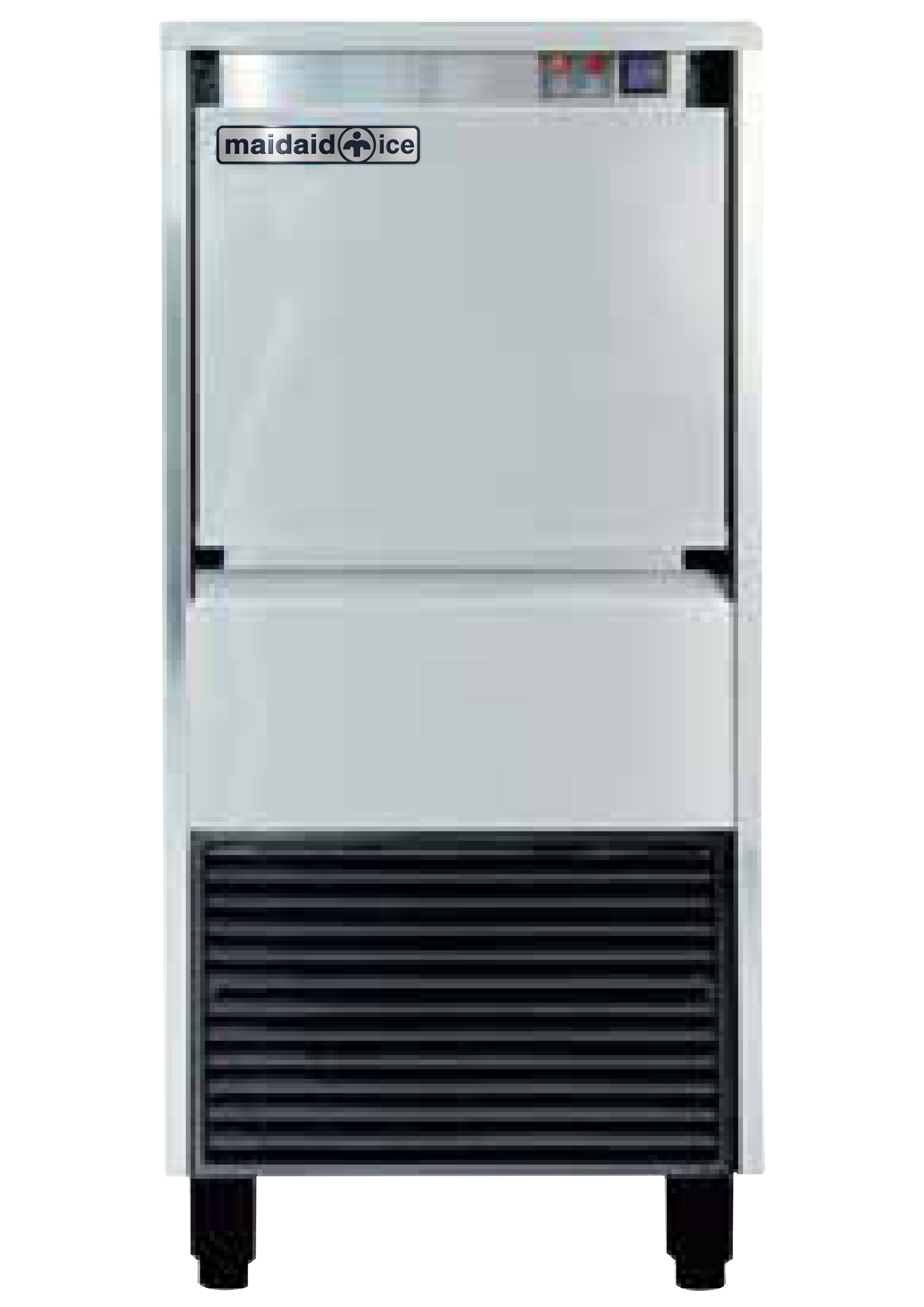

GRANULAR 85-20 *NEW FOR 2023*

  • GRANULAR 85-20
  • Production (24 hours) 88kg
  • Bin capacity 20kg
Maidaid ICEGRANULAR 85-20
Width x Depth x Height mm(Inc.Feet)465 x 595 x 890mm
Production in kg over 24hours#88kg
Storage capacity20kg
Cooling systemAir
Ice typeGranular
Cube sizeN/A
RefrigerantR290
Power voltage/phase/Hz230 / 1 / 50
Power watts / Amps470W (13A)
Water consumption L/Kg3.9
Water supply pressure1 - 6 Bar
Ambient temperature10ºC / 43ºC
Water supply temperature5ºC / 38ºC
Bin typeIncorporated
Weight nett / gross Kg58kg

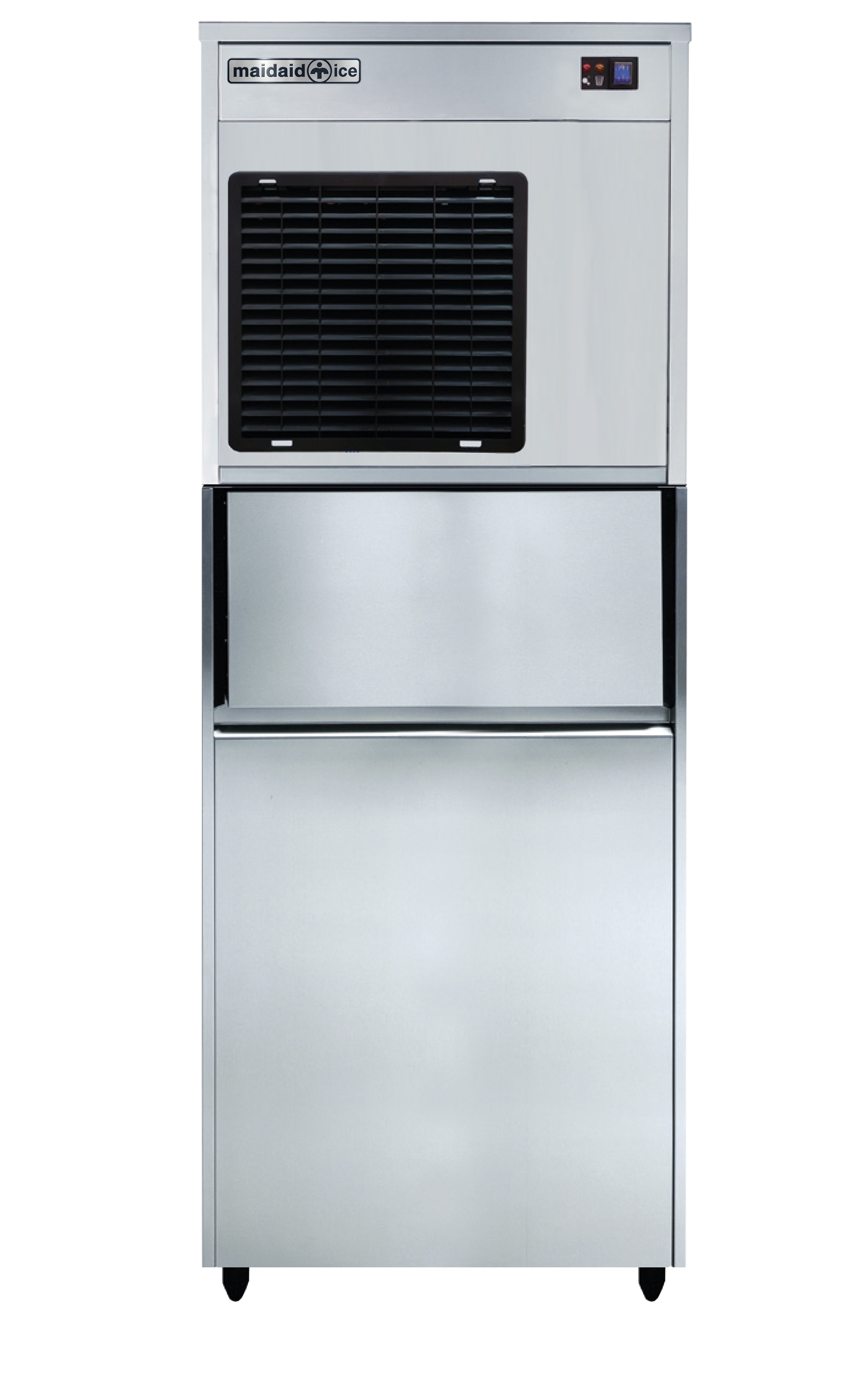

GRANULAR 160-64 *NEW FOR 2023*

  • GRANULAR 160-64
  • Production (24 hours) 164kg
  • Bin capacity 64kg
Maidaid ICEGRANULAR 164-64
Width x Depth x Height mm(Inc.Feet)515 x 550 x 1415mm
Production in kg over 24hours#164kg
Storage capacity64kg
Cooling systemAir
Ice typeGranular
Cube sizeN/A
RefrigerantR290
Power voltage/phase/Hz230 / 1 / 50
Power watts / Amps643W (13A)
Water consumption L/Kg6.8
Water supply pressure1 - 6 Bar
Ambient temperature10ºC / 43ºC
Water supply temperature5ºC / 38ºC
Bin typeComes with
Weight nett / gross Kg75kg

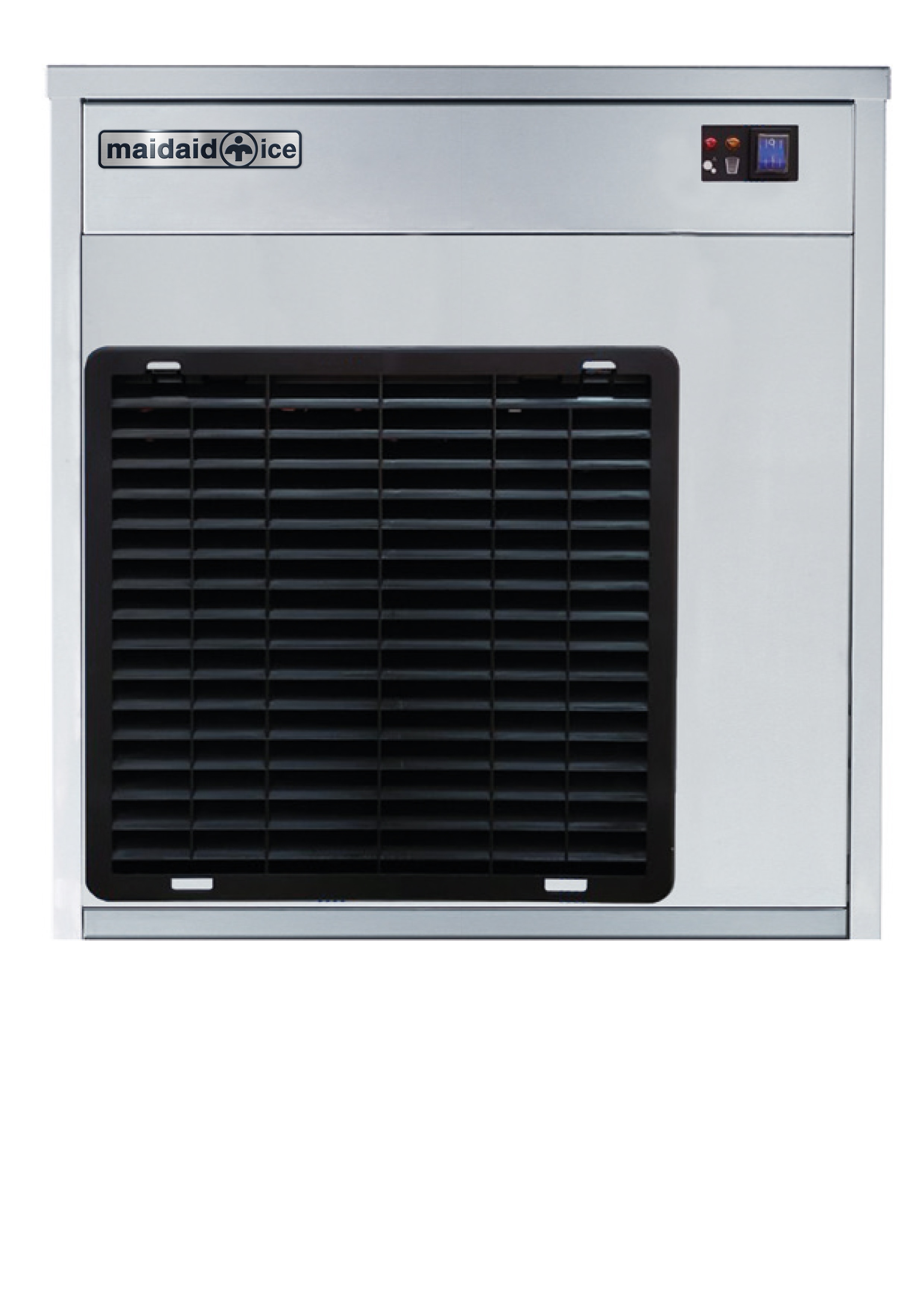

GRANULAR 200*NEW FOR 2023*

  • GRANULAR 200
  • Production (24 hours) 211kg
  • Separate bin required
Maidaid ICEGRANULAR 200
Width x Depth x Height mm(Inc.Feet)515 x 550 x 486mm
Production in kg over 24hours#211kg
Storage capacityN/A
Cooling systemAir
Ice typeGranular
Cube sizeN/A
RefrigerantR290
Power voltage/phase/Hz230 / 1 / 50
Power watts / Amps745W (13A)
Water consumption L/Kg9.6
Water supply pressure1 - 6 Bar
Ambient temperature10ºC / 43ºC
Water supply temperature5ºC / 38ºC
Bin typeSeparate bin req
Weight nett / gross Kg52kg

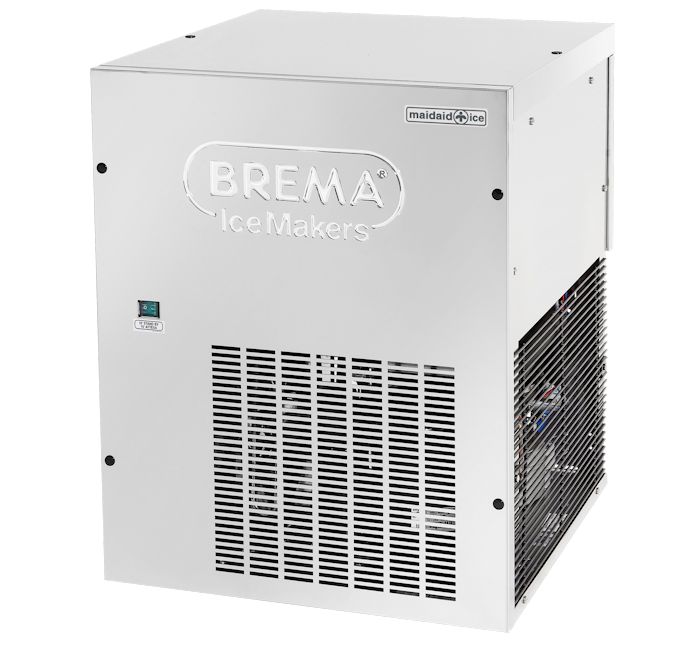

MG280 HC

  • 560 x 569 x 695mm
  • Production (24 hours) 280kg
  • Separate bin required
Maidaid MG280 HC
Width x Depth x Height mm 560 x 569 x 695mm
Production in kg over 24hours# 280kg
Storage capacity Bin dependant
Cooling system Air or Water
Ice type Granular
Cube size N/A
Refrigerant R290
Power voltage/phase/Hz 230 / 1 / 50
Power watts / Amps 1100W (13A)
Water consumption L/Kg A, 1 / W, 6
Water supply pressure 1 to 6 bar
Ambient temperature between 10ºC / 43ºC
Water supply temperature between 3ºC / 32ºC
Bin type M240PE, MT200, MT350, MR100, MDR100
Weight nett / gross Kg 83 / 93kg

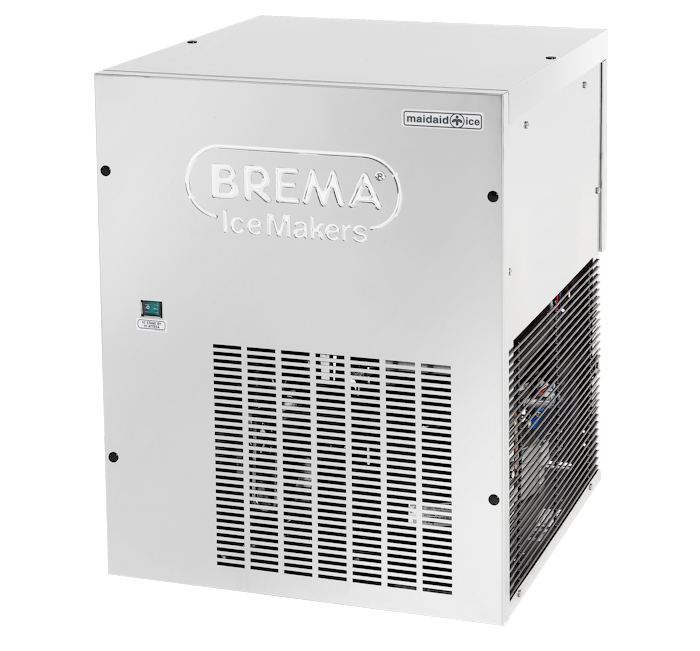

MG510 HC

  • 560 x 569 x 695mm
  • Production (24 hours) 435kg
  • Separate bin required
Maidaid MG510 HC
Width x Depth x Height mm 560 x 569 x 695mm
Production in kg over 24hours# 435kg
Storage capacity Bin dependant
Cooling system Air or Water
Ice type Granular
Cube size N/A
Refrigerant R290
Power voltage/phase/Hz 230 / 1 / 50
Power watts / Amps 1400W (16A)
Water consumption L/Kg A, 1 / W, 8
Water supply pressure 1 to 6 bar
Ambient temperature between 10ºC / 43ºC
Water supply temperature between 3ºC / 32ºC
Bin type M240PE, MT200, MT350, MR100, MDR100, MDR500
Weight nett / gross Kg 102 / 113kg

MG1000

  • 934 x 684 x 700mm
  • Production (24 hours) 1000kg
  • Separate bin required
Maidaid MG1000
Width x Depth x Height mm 934 x 684 x 700mm
Production in kg over 24hours# 1000kg
Storage capacity Bin dependent
Cooling system Air or Water
Ice type Granular
Cube size N/A
Refrigerant R452A
Power voltage/phase/Hz 415 / 3 / 50
Power watts / Amps 3200W (16A)
Water consumption L/Kg A, 1 / W, 5.3
Water supply pressure 1 to 6 bar
Ambient temperature between 10ºC / 43ºC
Water supply temperature between 3ºC / 32ºC
Bin type MDR500
Weight nett / gross Kg 172 / 199kg

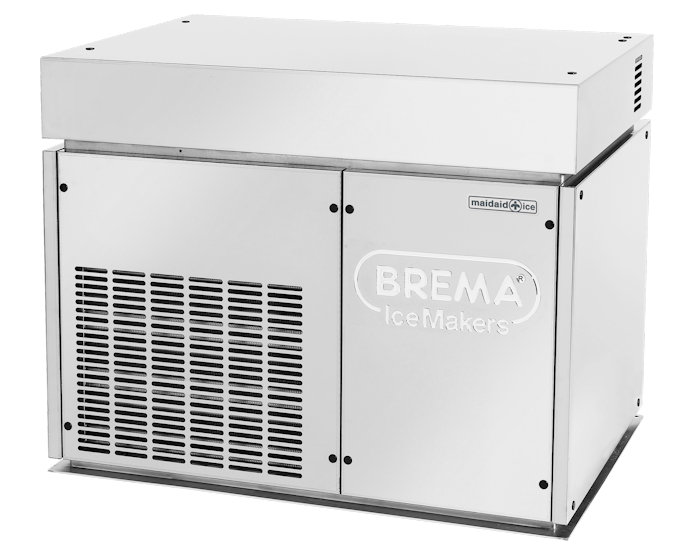

MM350

  • 900 x 588 x 705mm
  • Production (24 hours) 400kg
  • Separate bin required
Maidaid MM350
Width x Depth x Height mm 900 x 588 x 705mm
Production in kg over 24hours# 400kg
Storage capacity Bin dependant
Cooling system Air or Water
Ice type Flake
Cube size N/A
Refrigerant R452A
Power voltage/phase/Hz 240 / 1 / 50
Power watts / Amps 2100W (16A)
Water consumption L/Kg A, 1 / W, 7.5
Water supply pressure 1 to 6 bar
Ambient temperature between 10ºC / 43ºC
Water supply temperature between 3ºC / 32ºC
Bin type MT350, MDR100
Weight nett / gross Kg 137 / 152kg

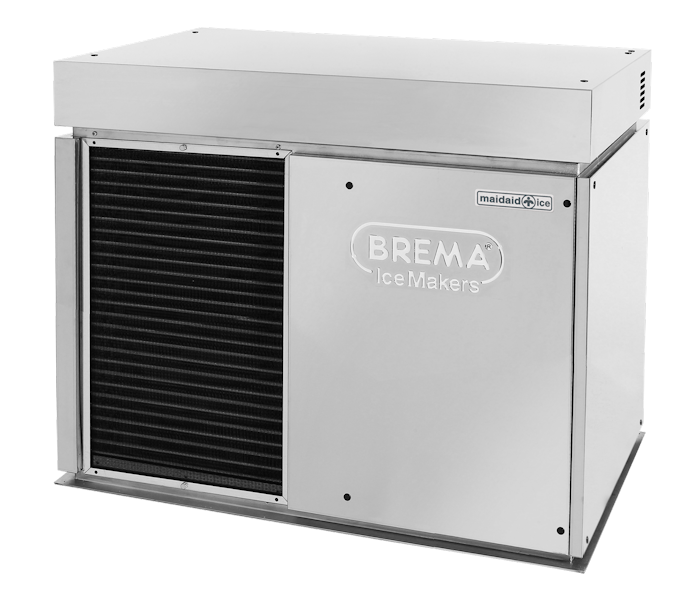

MM600

  • 900 x 588 x 705mm
  • Production (24 hours) 620kg
  • Separate bin required
Maidaid MM600
Width x Depth x Height mm 900 x 588 x 705mm
Production in kg over 24hours# 620kg
Storage capacity Bin dependant
Cooling system Air or Water
Ice type Flake
Cube size N/A
Refrigerant R452A
Power voltage/phase/Hz 415 / 3 / 50
Power watts / Amps 3000W (16A)
Water consumption L/Kg A, 1 / W, 7.4
Water supply pressure 1 to 6 bar
Ambient temperature between 10ºC / 43ºC
Water supply temperature between 3ºC / 32ºC
Bin type MT350, MDR100, MDR500
Weight nett / gross Kg 151 / 166kg

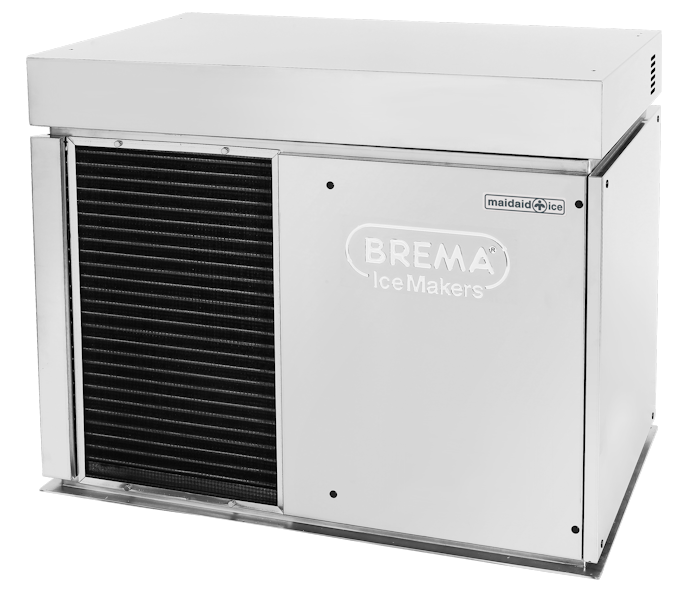

MM800 Modular Ice Flaker

  • 1107 x 700 x 880mm
  • Production (24 hours) 900kg
  • Separate bin required
Maidaid MM800
Width x Depth x Height mm 1107 x 700 x 880mm
Production in kg over 24hours# 900kg
Storage capacity Bin dependent
Cooling system Air or Water
Ice type Flake
Cube size N/A
Refrigerant R452A
Power voltage/phase/Hz 415 / 3 / 50
Power watts / Amps 4600W (16A)
Water consumption L/Kg A, 1 / W, 6.9
Water supply pressure 1 to 6 bar
Ambient temperature between 10ºC / 43ºC
Water supply temperature between 3ºC / 32ºC
Bin type MDR500
Weight nett / gross Kg 241 / 262kg
