AMH45D
- AMH45D pumped waste version
- 450 x 450mm rack
- Maximum useable height 280mm
- Dimensions W525 x D560 x H705mm
- Height excludes adjustable feet which
will add 10 - 20mm
- One standard cycle
- Power 2.8kW
- 13 Amps required
- 1 year warranty
- Accurate detergent & rinse aid peristaltic dosing pumps with dosing setup by fascia controls
- Easy clean parallel wash and rinse arm assembly
- Drain pump as standard
- Surface scrap tray filters supplied as standard

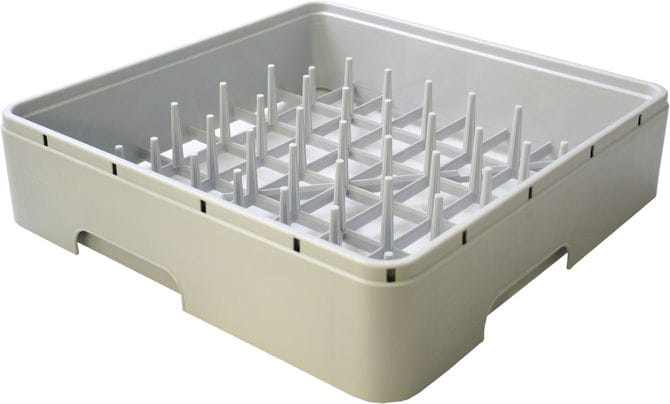

- Supplied with two open cup/glass racks & cutlery insert as standard
| AMH - Undercounter |
AMH45D |
| Width x Depth x Height mm |
525 x 560 x 705mm |
| Feet Height |
10mm-20mm |
| Basket size |
450x450mm |
| Maximum useable height |
280mm |
| Door Opening |
305mm |
| Cycle times |
120 seconds |
| Water consumption per cycle |
2.0 Litres |
| Wash tank capacity |
14 Litres |
| Phase - Options |
Single Phase Only |
| Power – Single Phase Options |
2.8kW(13AMP) |
| Power – Three Phase |
N/A |
| Detergent pump |
Peristaltic-non timed |
| Rinse aid pump |
Peristaltic-non timed |
| Drain pump |
Yes |
| Breaktank |
No |
| Water supply pressure |
2 to 4 Bar |
| Body Construction |
Single skin |
| Door/Hood Construction |
Double Skin |
| Scrap Trays |
Yes |
| Internal Rinse Booster Pump |
N/A |
| Number Of Cycles |
1 |
| Total Maximum Load(as supplied) |
2.8kW(13Amp) - Single Phase |
You can access all spares relating to this machine via the following link
